Symmetricom TimeHub 5500 System Manual

86 097-55501-01 Issue 6 – June 2003
1
TimeHub 5500 System Guide

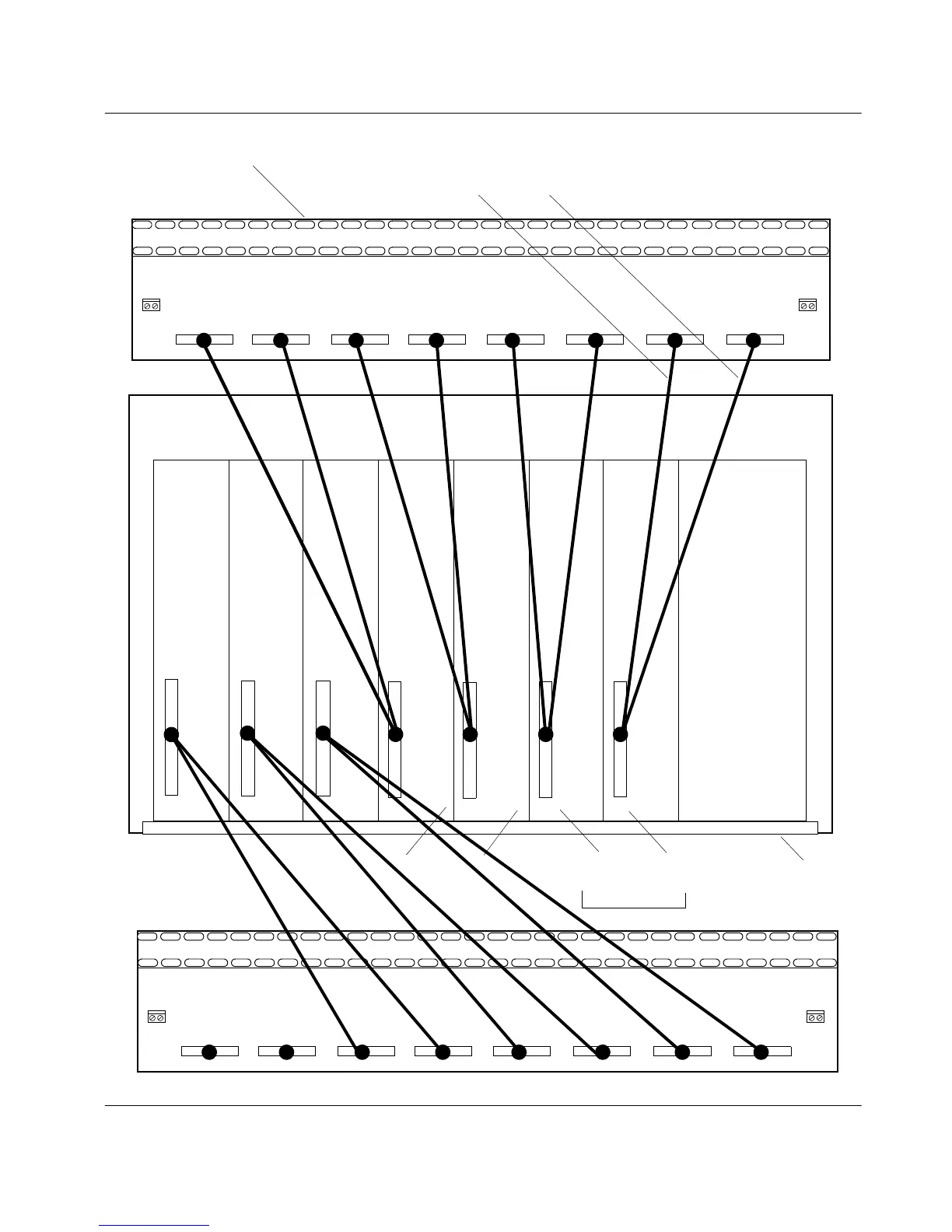

Figure 3-9. Shelf–to–Wirewrap Panel Connections (Rear)
Group A
Wirewrap Panel
Shelf
“1–10”“11–20”
Ports
A21–40
Ports
A1–20
TO8 TO1TO2TO3TO4TO5TO7 TO6
TO8 TO1TO2TO3TO4TO5TO7 TO6
