2.2.5 DB-23
A
A
1 2 4
3
5
6
7

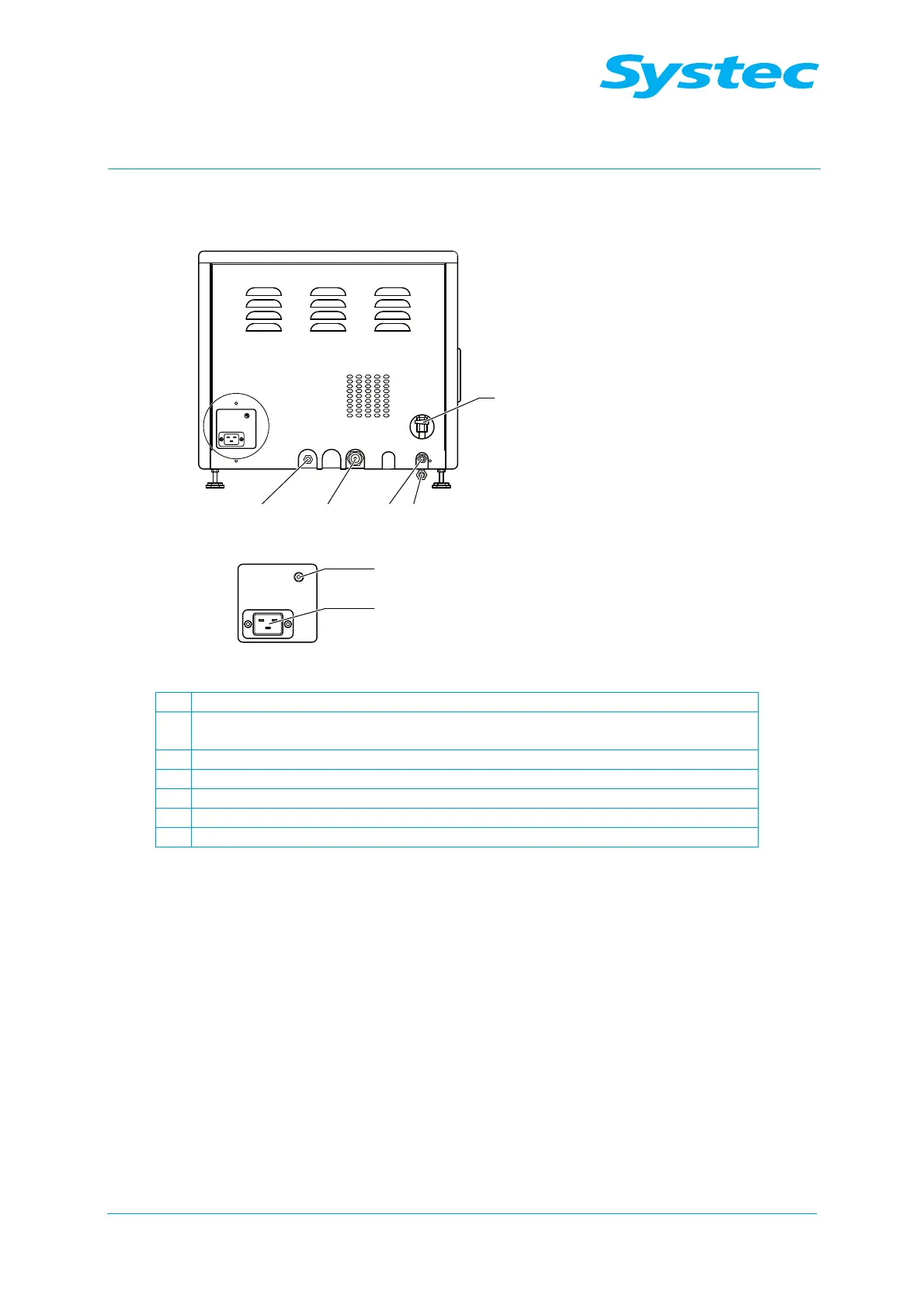

Fig. 6: Device connections on DB-23
1 Change-over valve for demineralised water (recirculate or drain)
2
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
3 Drain on demineralised water reservoir container
4 Safety valve on sterilisation chamber
5 Drainage tap for reservoir container
6 Safety temperature limiter (STL)
7 Mains connection (230 V, 50/60 Hz)
