V/D S ERIES
C OMMISSIONING
Revision: 2.1 2-11
2.2.6 DX/DE-45
1 3 4 5 62 7 8
9
10
11
12
13

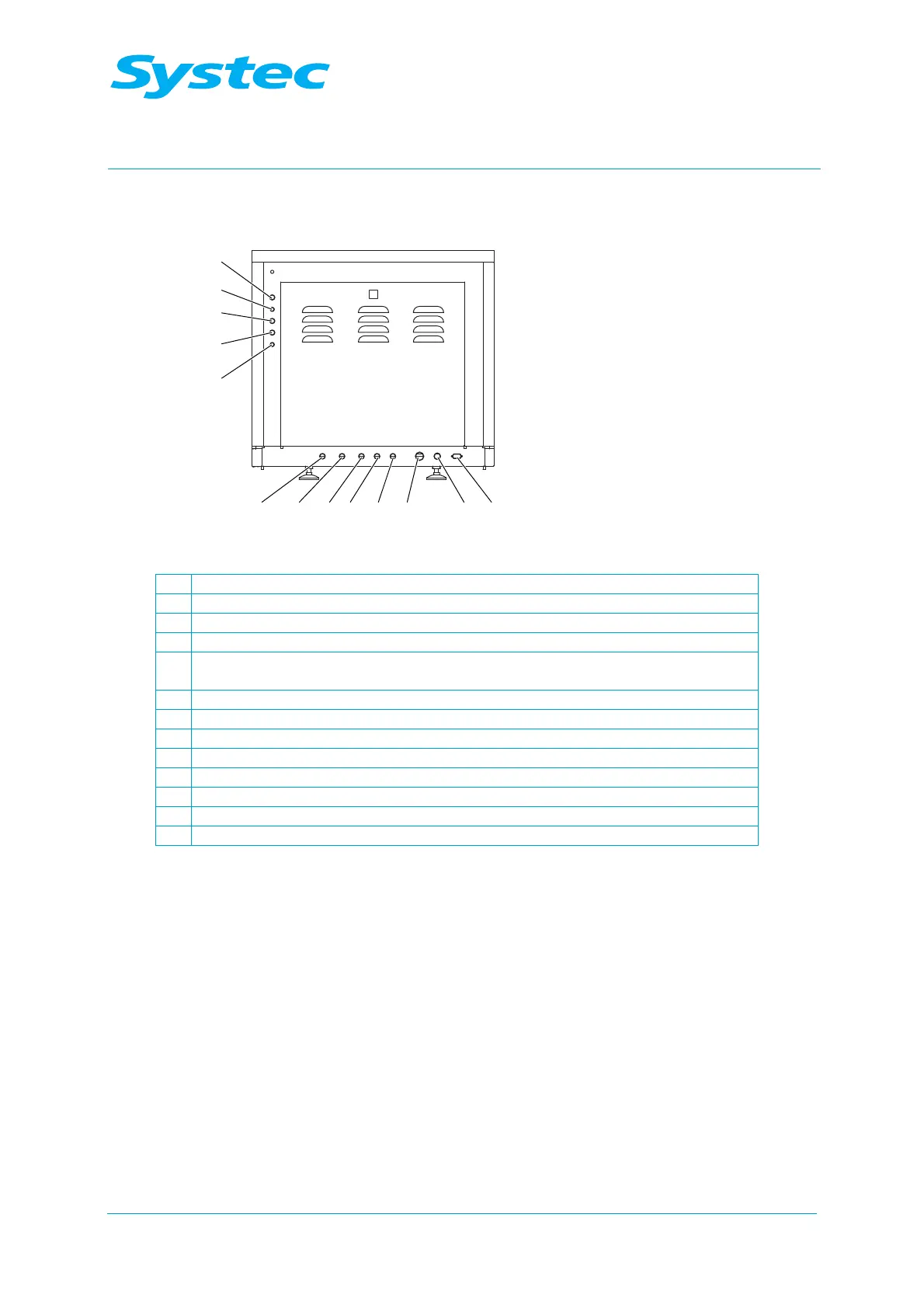

Fig. 7: Device connections on rear of DX/DE-45
1 Cooling water (3/4") outer thread, pressure > 1 bar
2 Demineralised water (3/4") outer thread, pressure > 1 bar, optional
3 Compressed air (7.2 mm quick release connector), optional
4 Drain on demineralised water reservoir container
5
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
6 Mains connection (230 V, 50/60 Hz)
7 Connection for Aquastop, optional
8 Serial interface (RS-232 for connection to a PC)
9 Fan fuse (optional)
10 Vacuum pump fuse (optional)
11 Demineralised water fuse
12 Compressor fuse
13 Safety temperature limiter (STL)
