V/D S ERIES
C OMMISSIONING
2-12 Revision: 2.1
2.2.7 DB-45
1 2 3
4
5
6
7

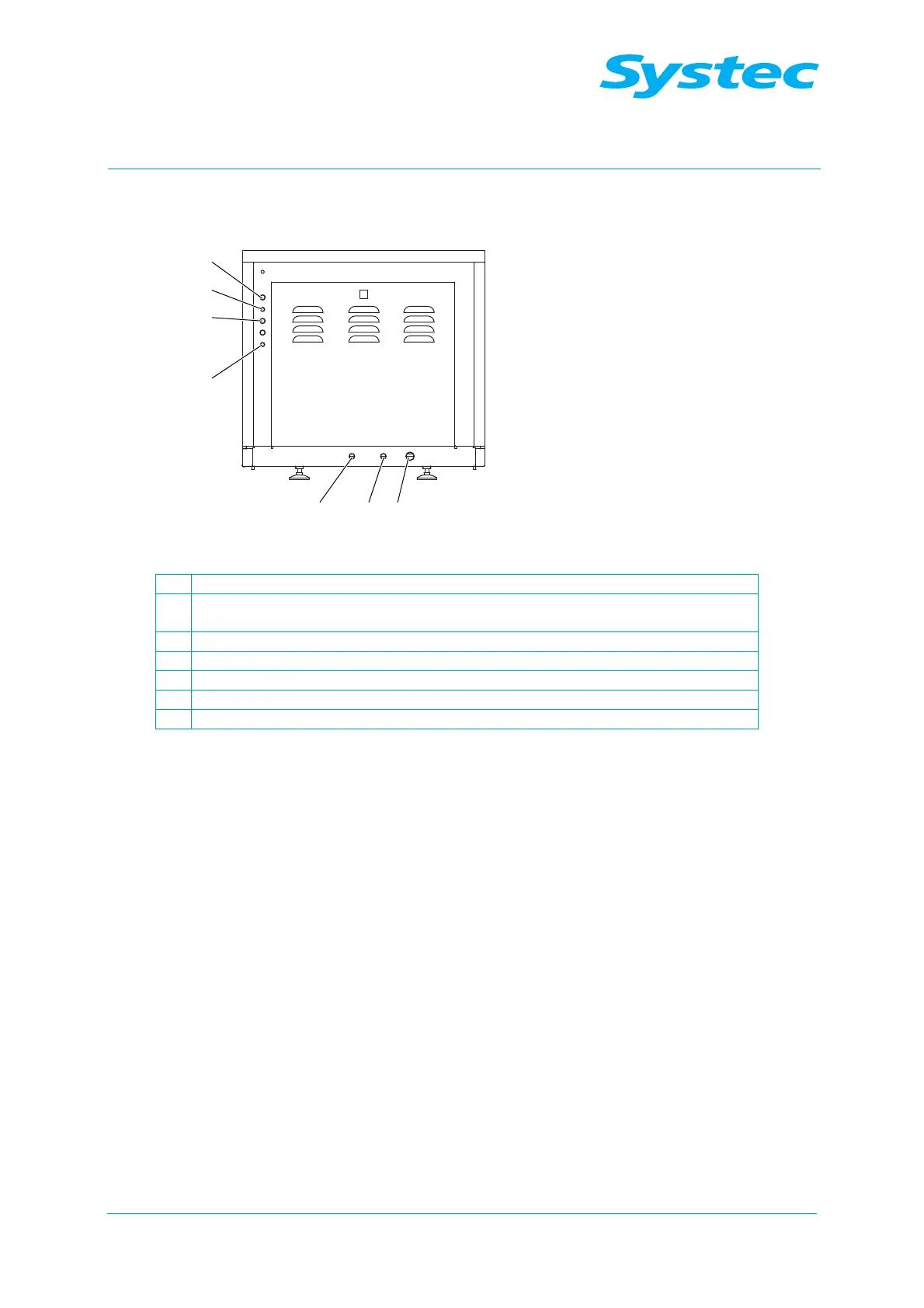

Fig. 8: Device connections on DB-45
1 Drain on demineralised water reservoir container
2
Waste water (3/4") outer thread (drain provided by customer temperature-
resistant to 103 °C)
3 Mains connection (230 V, 50/60 Hz)
4 Inside-air fan fuse
5 Demineralised water fuse
6 Compressor fuse
7 Safety temperature limiter (STL)
