V/D S ERIES
M ECHANICAL ASSEMBLIES
Revision: 2.1 3-15
11 1312
14 16
15
17 1918
31 3332
34 3635
37 3938
41 4342
44
4645
47 4948
51 5352
565554
57 5958

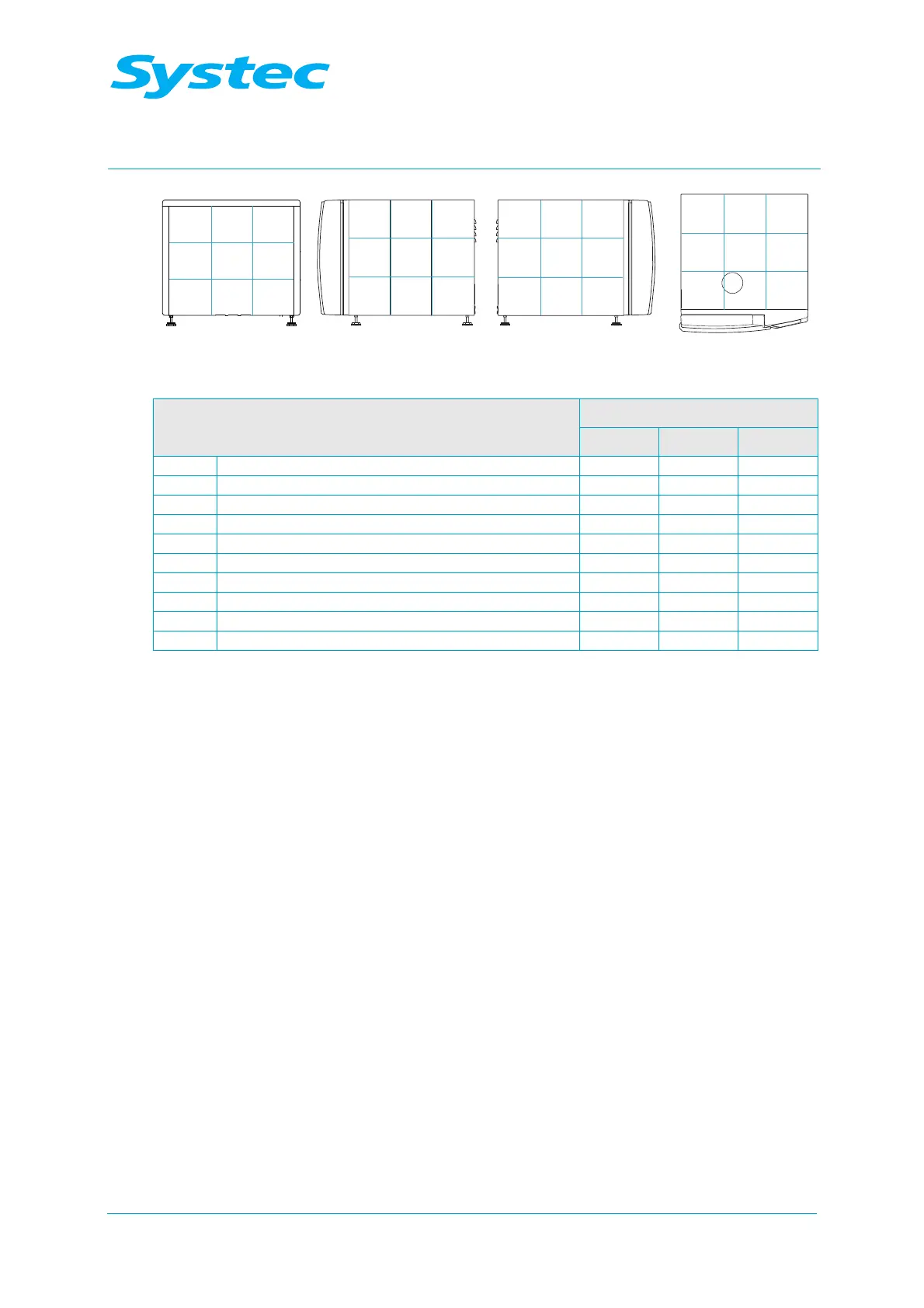

Fig. 3: D-23: Layout diagram of rear, right, left and top
Component
Position in layout diagram
DX DE DB
Y5 Compressed air inlet valve 52 52
Y7 Fast exhaust valve 47 49 49
Y8 Vacuum valve 19 51
Y9 Air extractor valve 48 48 48
Y11 Blow-out valve for cooling coil 52 52
Y12 Vacuum breaker valve 52 39, 52 39
Y14 Demineralised water inlet valve 37 37
Y15 Pump water valve for vacuum pump 31 31
Y16 Top exhaust valve 16 15 15
Y17a Demineralised water for reservoir container 31 31 (opt.)
Tab. 3: D-23: Position in layout diagram
