3.2.4 D-45
11 1312
14 16
15
17 1918
31 3332
34 3635
37 3938
41 4342
44
4645
47 4948
51 5352
565554
57 5958

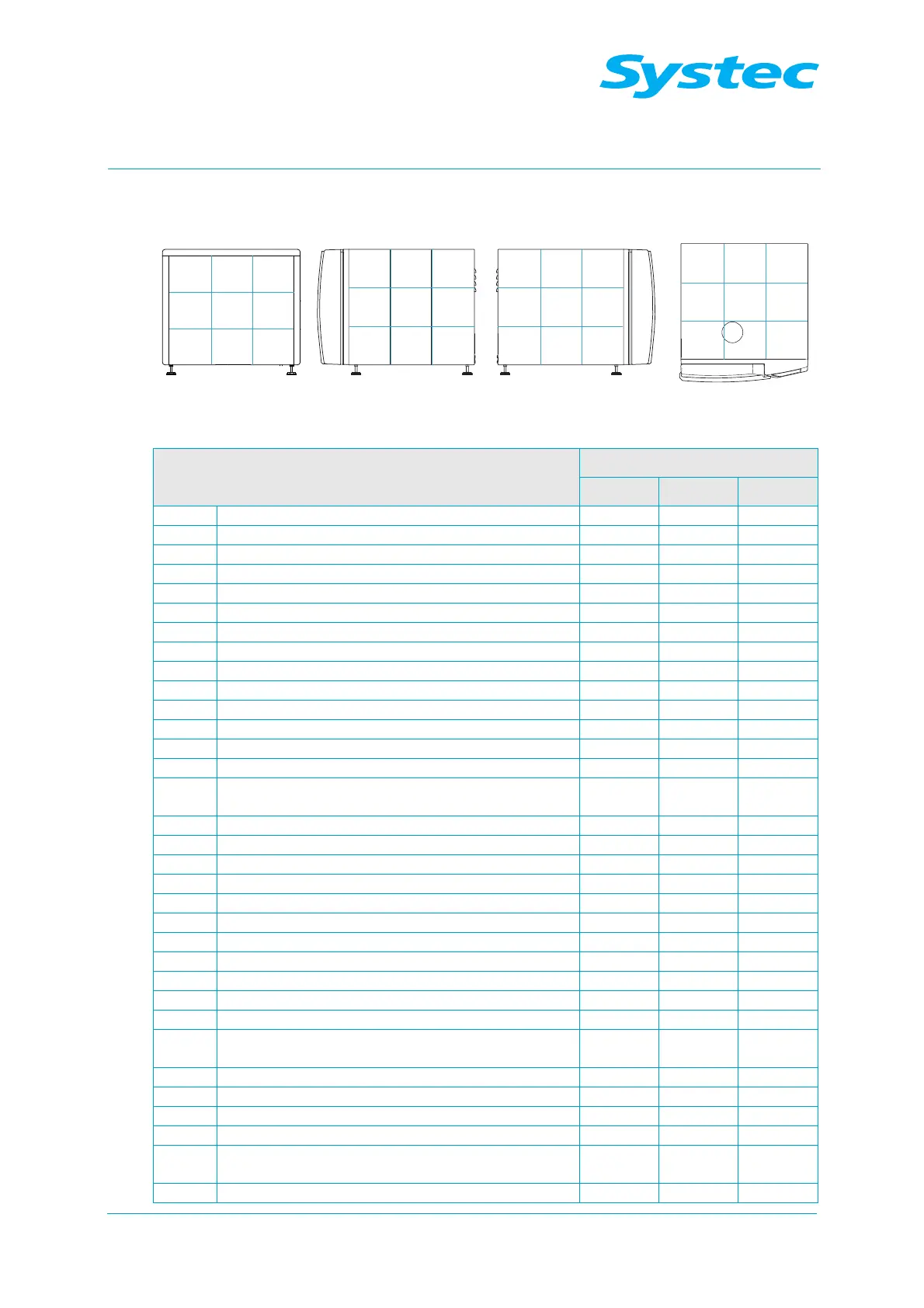

Fig. 4: D-45: Layout diagram of rear, right, left and top
Component
Position in layout diagram
DX DE DB
Steam generator 38/39
Manual setting of recirculate/eject 39 39
Pneumatic assembly 41 41 41
BV1 Manual drain tap for steam generator 38
D1 Steam air extractor for sterilisation chamber 47 48 48
D2 Steam air extractor (Super Dry) 47
E4/E5 Electrode for Aquastop 58 58 (opt.)
F2 Vacuum flow monitor 38 38
FSW1 Float switch valve for demineralised water 32 32 (opt.)
FSW2 “Empty tank” float switch 32 32
M1 Demineralised water feed pump 35 35 (opt.)
M2 Vacuum pump 35 35
M3 Air compressor 14 14 14
M4 Radial fan 15 15
N3 Needle valve for demineralised water on reservoir
container
32 32 (opt.)
NR6 Needle no-return valve – “Blow out cooling coil” 41 41
NR7 Needle no-return valve for cavitation protection 35 35
P1 Manometer for external compressed air 14 14
P2 Manometer for internal compressed air 19 19 19
PR1 Pressure reducer for external compressed air 14 14
PR2 Pressure reducer for cooling water 39 39
PS1 Pressure transducer for steam generator 35
PS2 Pressure transducer for sterilisation chamber 53 53 53
PV1 Compressed air reservoir 19 19 19
PV2 Exhaust filter 57 57
R1 No-return valve for demineralised water 37
R2 No-return valve on pressure transducer for steam
generator
35
R3 No-return valve for cooling water 39 39
R4 No-return valve for compressed air inlet 58 58 58
R5 No-return valve for drain 49 49 49
R6 No-return valve for air compressor 19 19 19
R8
No-return valve for steam inlet
(exhaust filter option)
58
R9 No-return valve – “Blow out cooling coil” 35 35
