V/D
S
ERIES
M
ECHANICAL ASSEMBLIES
Revision: 2.1 3-19
11 1312
14 1615
17 1918
31 3332
363534
37 3938
41 4342
464544
47 4948
51 5352
565554
57 5958

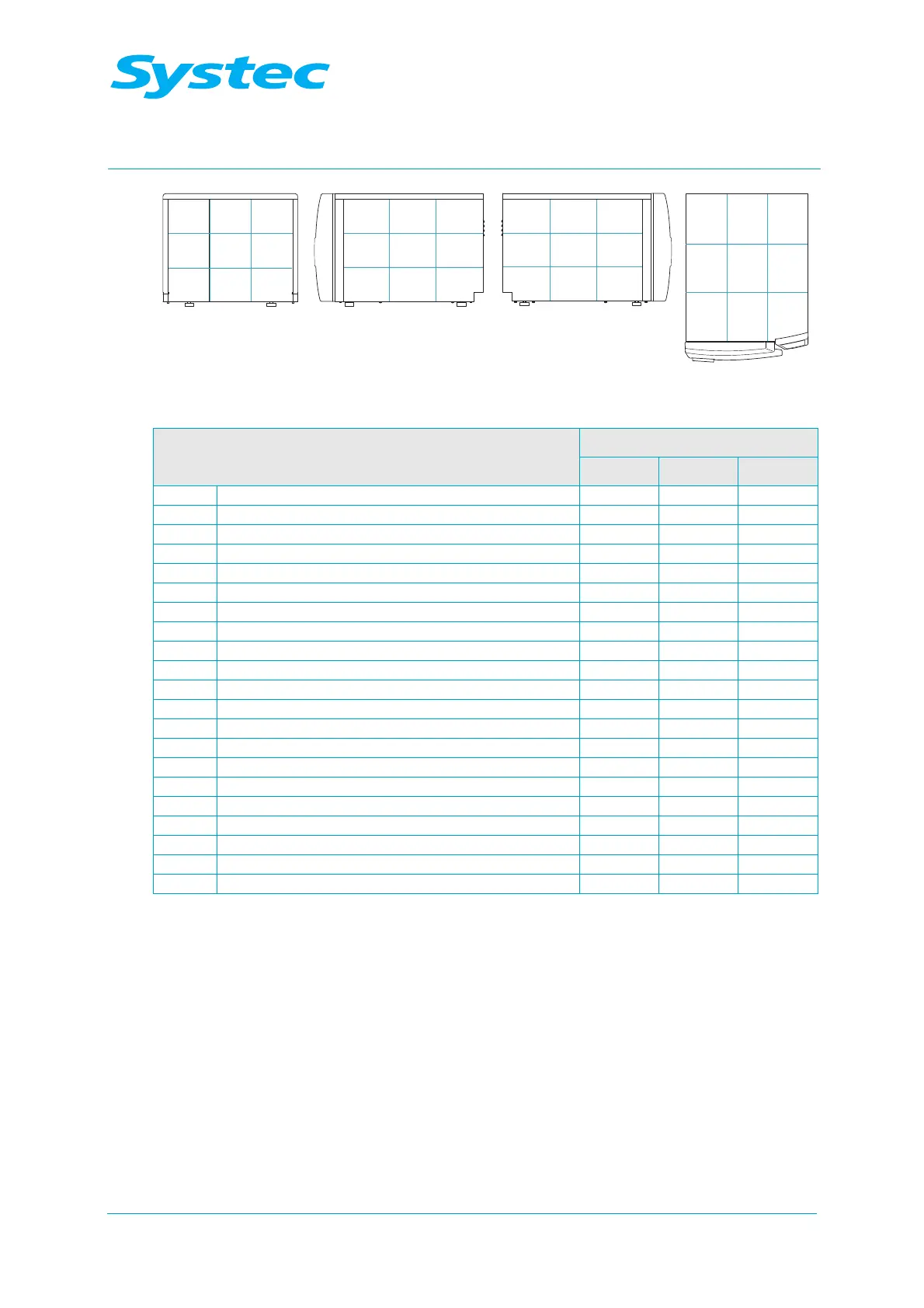

Fig. 5: D-65 – 200: Layout diagram of rear, right, left and top
Component
Position in layout diagram
DX DE DB
S2 Dirt trap sieve 49 49 49
SL1 Silencer for air compressor 37 37 37
SV1 Safety valve on steam generator 14
SV2 Safety valve on sterilisation chamber 52 52 52
Sw1 Pressure switch (7 bar) 45 45 45
Sw2 40 mbar switch 45 45 45
Y1 Steam inlet valve 36
Y2 Super Dry valve 36
Y3 Cooling water valve 35 35
Y4 Drain cooling 33 33
Y5 Compressed air inlet valve 35 35 35
Y6 Atmosphere valve 52 52 52
Y7 Drain valve 48 48 48
Y8 Vacuum valve 48 48
Y9 Air extractor valve 48 48 48
Y11 Blow-out valve for cooling coil 45 45
Y12 Vacuum breaker valve 35 35 35
Y13 Compressed air valve 45 45 45
Y14 Demineralised water inlet valve 36 36
Y15 Pump water valve for vacuum pump 34 34
Y16 Top exhaust valve 48 48 48
Tab. 5: D-65 – 200: Position in layout diagram
