Technogym Run MED - Monitor Plug for Csafe Port

RUN MED: Service & Maintenance Manual - rev. 1.0
When programming the machine sometimes it is necessary to fit plug into the free RJ-45
port on the back of the display, to avoid any type of interference during the operation.

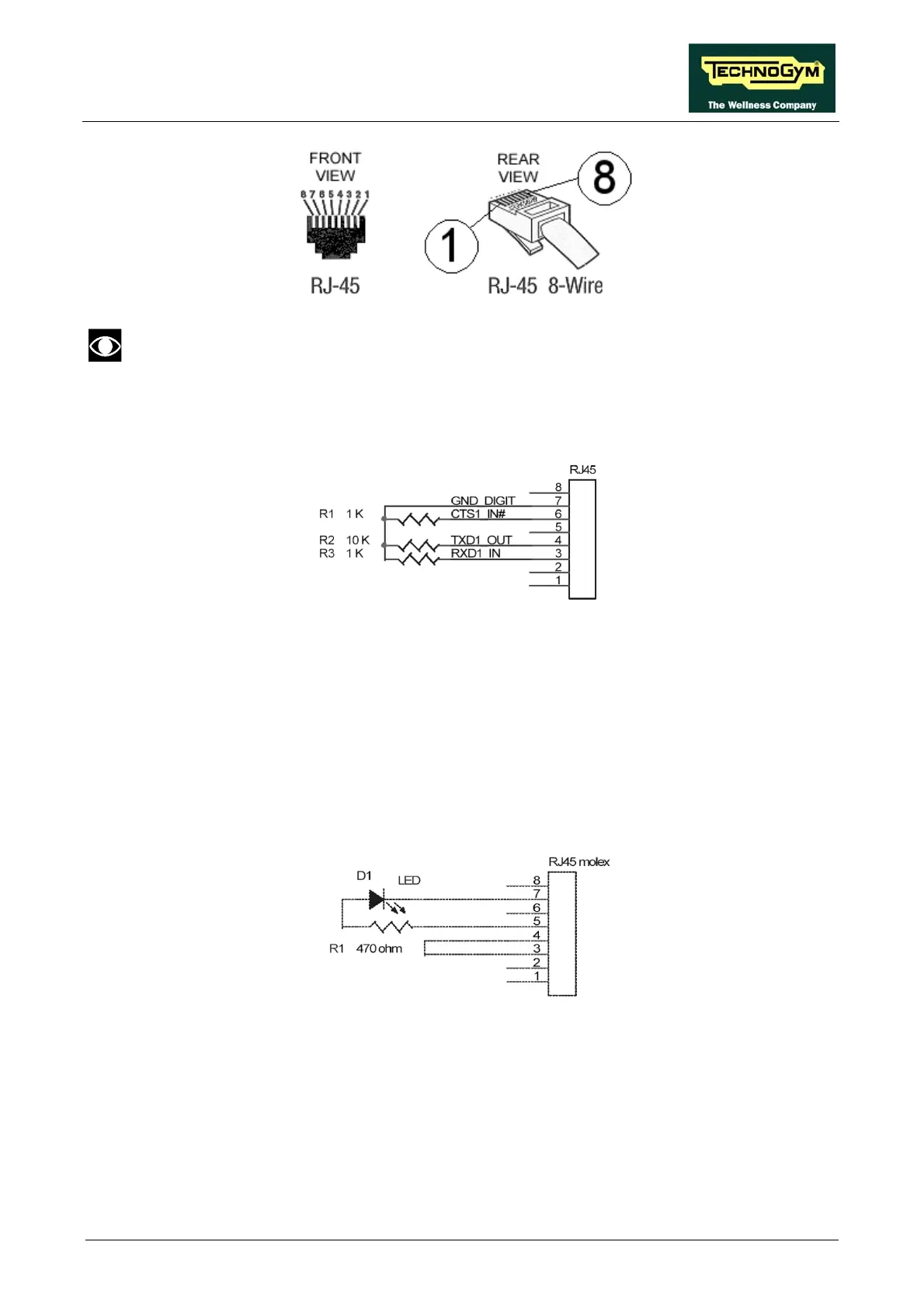

The wiring diagram of the RJ-45 plug is as follows:
Programming cable and plug can be ordered using the code H0002534AA.
4.4. MONITOR PLUG FOR CSAFE PORT
When the plug code 0WC00639AA is fitted into any one of the CSafe ports on the machine, the
corresponding LED should illuminate to indicate the presence of the 5 Vdc supply on the port.
During the CSafe port test function, the plug connects the transmit channel directly to the receive
channel, thereby producing a positive test outcome if the port is functioning correctly.
