7.13. DISASSEMBLING THE POWER SUPPLY BOX

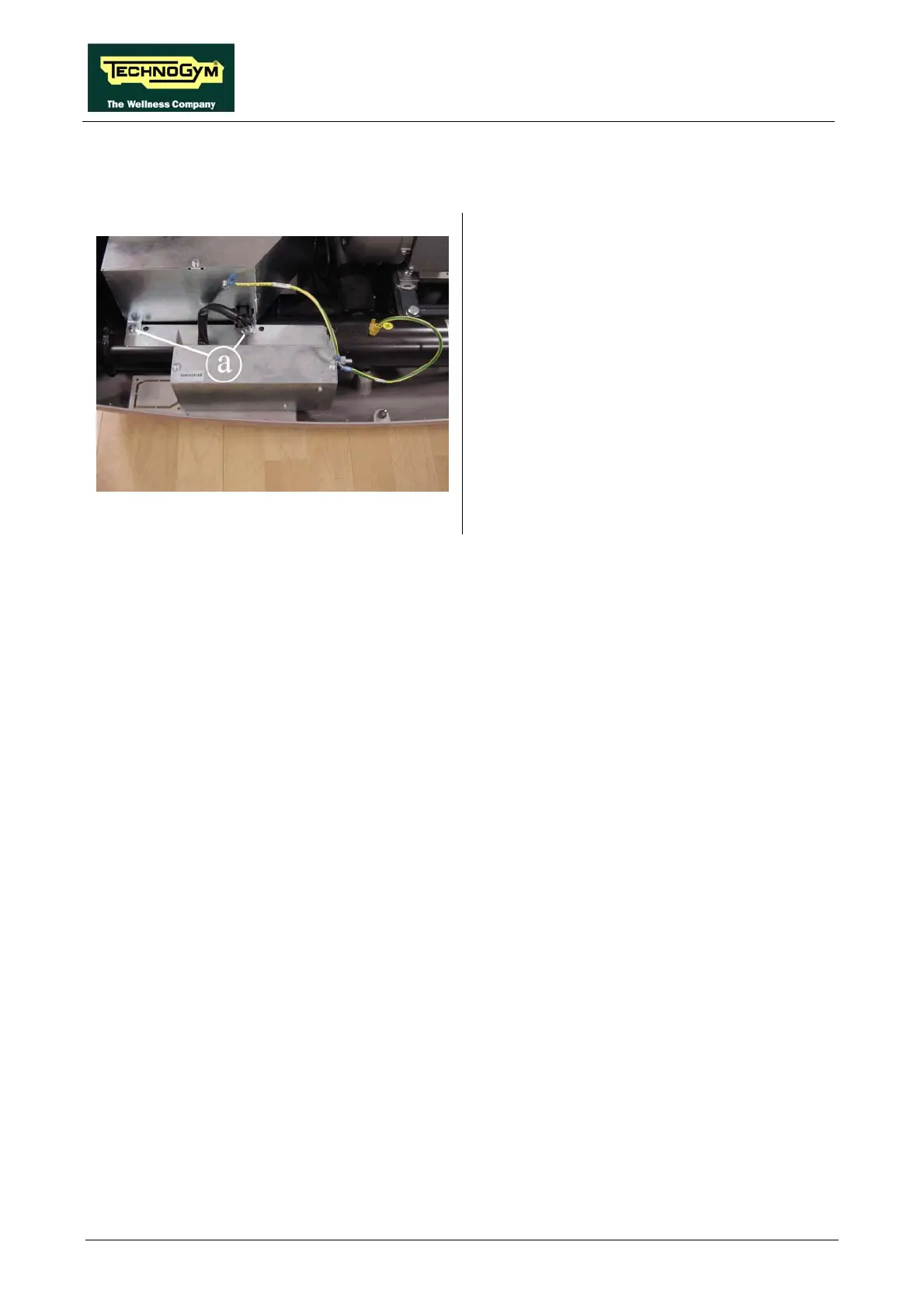

Figure 7.13-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”, only as
far as removing the upper guard.
1. Unplug the power supply cable from the AT
driver box.
2. Unplug the two ground cable from the AT
driver box and from the frame.
3. Back off the two screws a using a medium
Phillips screwdriver.
4. Remove the power supply box.
To reassemble the power supply box, carry out
the above steps in reverse order.
