RUN MED: Service & Maintenance Manual - rev. 1.0
Page 7.8

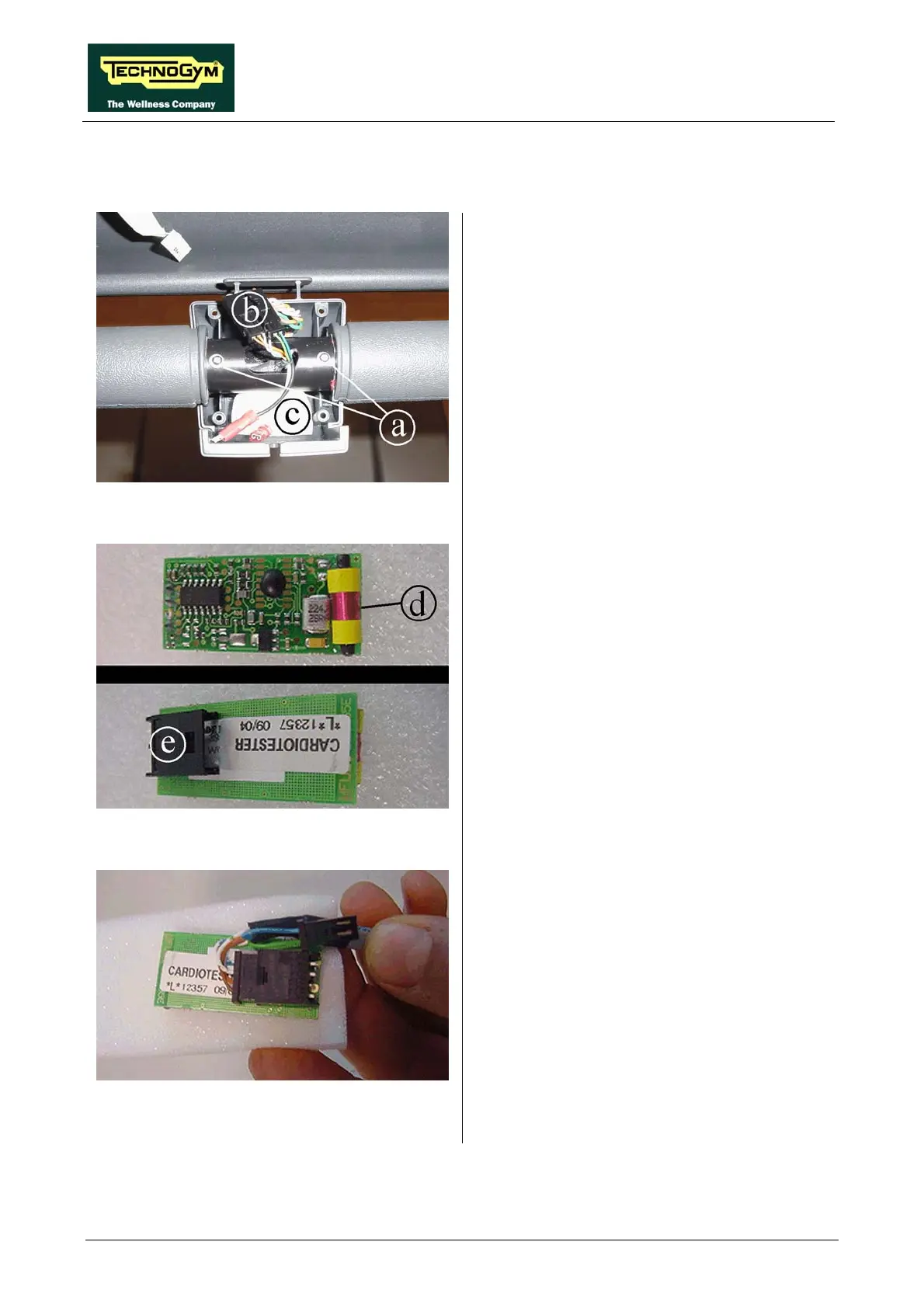

7.7. DISASSEMBLING THE CARDIO RECEIVER
Figure 7.7-1
1. Carry out the procedure described in
paragraph 7.6. “Disassembling the
emergency button”.
2. Back off the 2 screws a using a small Phillips
screwdriver.
3. Remove the cardio receiver from its plastic
bag.
4. Unplug the connector b.
5. Remove the cardio receiver c.
Figure 7.7-2
To assemble the new receiver:
1. On the HFU receiver, there are the receiving
coil d and the connector e.
Figure 7.7-3
2. Connect the cable to the cardio receiver and
bend the cable on a side of the connector.
Continued on following page →
