Technogym Run MED - Disassembling the Motor Guard

RUN MED: Service & Maintenance Manual - rev. 1.0
7.9. DISASSEMBLING THE MOTOR GUARD

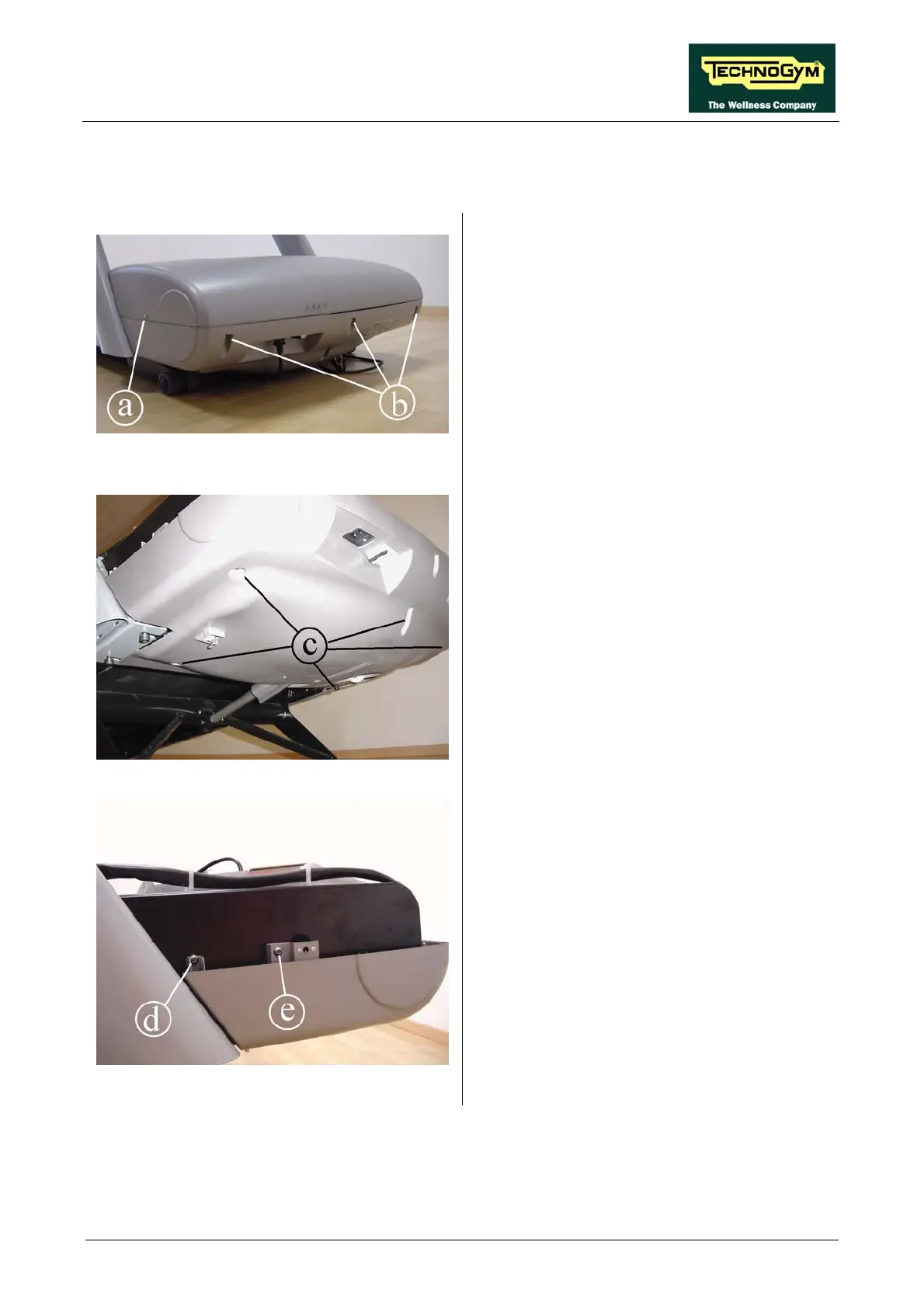

Figure 7.9-1
1. unplug the mains
lead from the wall outlet.
2.
urn, using a medium
3. turn,
using a medium flat-blade screwdriver.
4. Remove the top part of the motor guard.
Turn off the machine and
Back off the screws a on either side of the
machine through a ¼ t
flat-blade screwdriver.
Back off the 3 screws b through a ¼
Figure 7.9-2
x.
7. Unplug the cable connecting the limit switch
to the electrical box.
5. Back off the 5 screws c using a 4-mm Allen
wrench.
6. Unplug the electrical cable connecting the
fan to the electrical bo
Figure 7.9-3
8. , using a 4-mm hex
wrench.
of the motor guard
downward to remove.
To reassemble the motor guard, carry out the
above steps in reverse order.
On either side of the machine:
Back off the screw e
9. Back off screw d using a 4-mm Allen wrench
and remove the lower part
Page 7.11
