6.7. “SPEED ERROR” MESSAGE ON THE DISPLAY
The machine displays this error message if the encoder of the tread belt motor is not working.
This error message will not appear on the 500 model, which does not have a tread belt
motor encoder.
This error appears for the first time during operation of the tread belt, and causes the machine to
completely inhibit all movements, setting parameter PAR 13 to 1. As a result of this, the error
reappears when the machine is turned off and on again, but the machine will be able to function
normally in open loop mode, i.e. without using the information provided by the encoder for
controlling speed. Closed loop operation can only be resumed after resetting parameter PAR 13 to
. 0

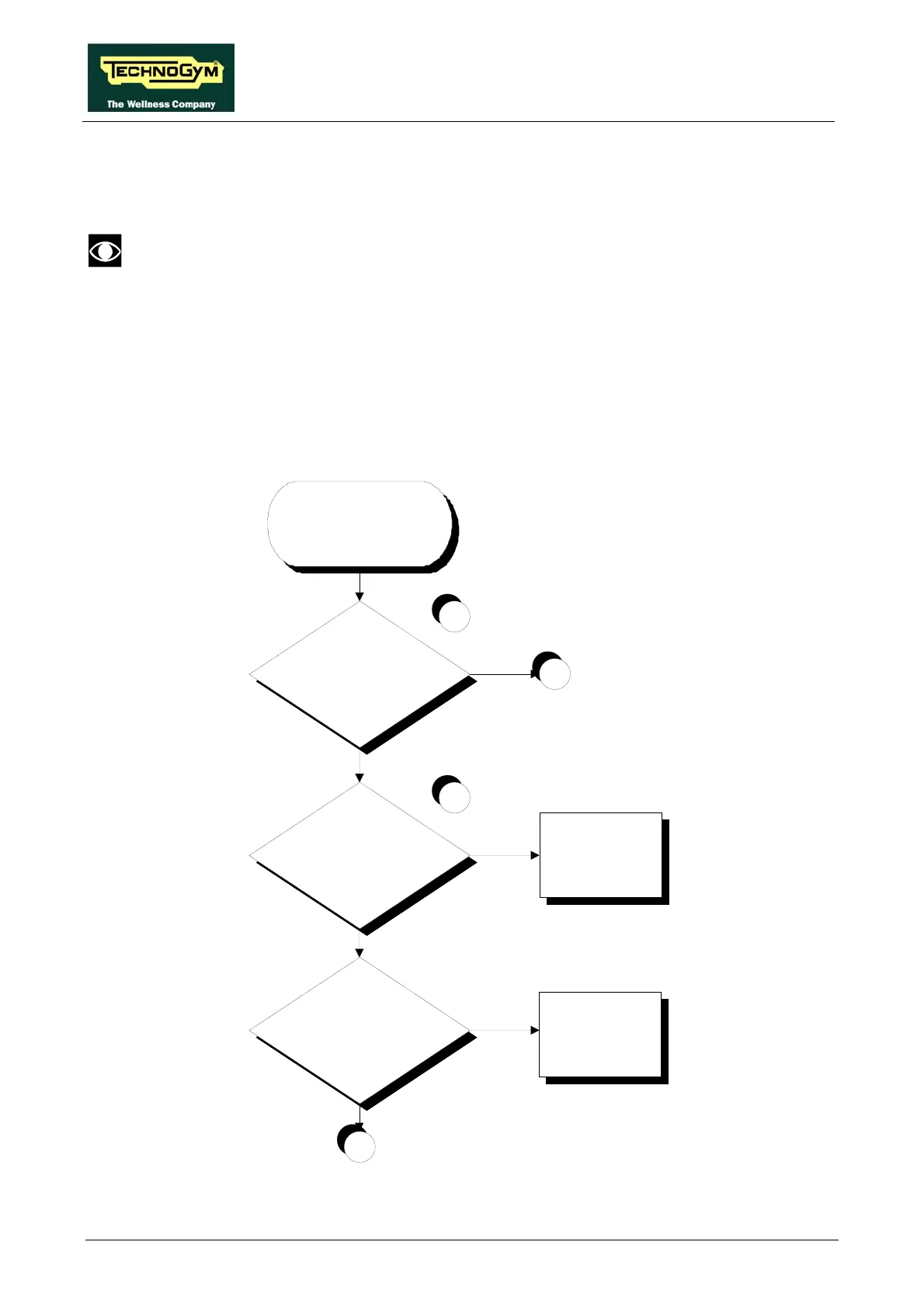

Is the encoder supply v oltage
correct at the output to the AT
driver board?
Is the encoder supply v oltage
correct at the input to the AT
driver board?
Replace the AT driver
board
"SPEED ERROR"
MESSAGE ON THE
DISPLAY
YES
NO
YES
NO
2
1
A
Is the EAM2069 cable
correct (check pin to pin)?
Replace the EAM2069
cable
NO
B
YES
Continued on the following page.
