7.14. DISASEMBLING THE TREAD BELT MOTOR ENCODER
Perform this operation using gloves to prevent the encoder wheel from getting dirty and
starting malfunctioning.

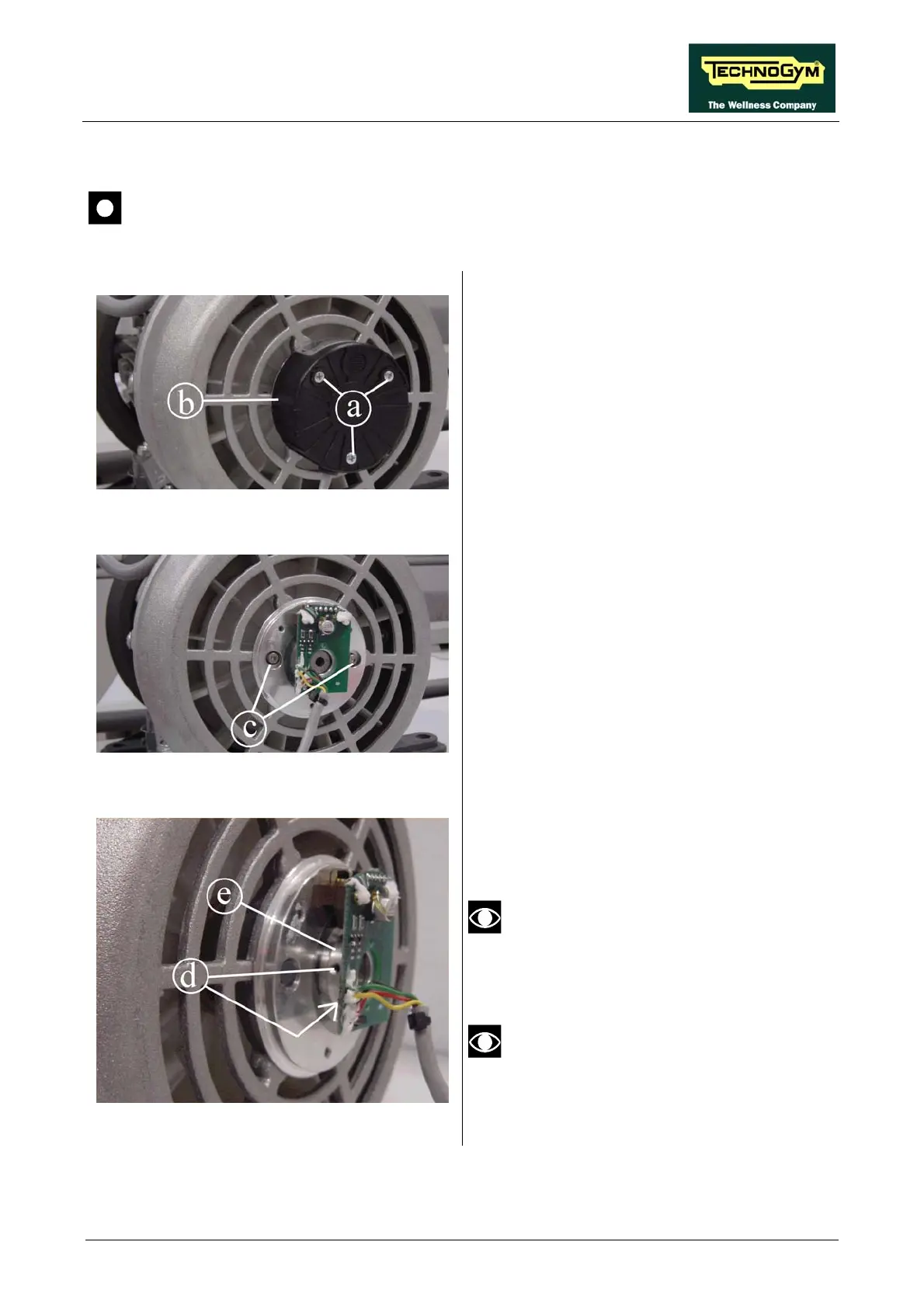

Figure 7.14-1
7.1 ling the electrical box”.
1. Back off the 3 screws a using a small Phillips
screwdriver.
2. Remove the plastic cover b.
Carry out the procedure described in paragraph
1. “Disassemb
Figure 7.14-2
3. Using a 2.5-mm hex wrench, back off the
two screws c securing the encoder to the
motor.
Figure 7.14-3
4. B
he
fr ft.
ack off the 2 grub screws d using a 1.5-mm
x wrench and remove the encoder group
om the motor sha
If the encoder is going to be reassembled
rather than replaced, take care with the
wheel “e” which is no longer secured to
the encoder group once it is removed
from the shaft.
If the encoder is replaced, use the same
model as the encoder that was
disassembled, to avoid possible
incompatibility with the motor.
Page 7.17
