7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

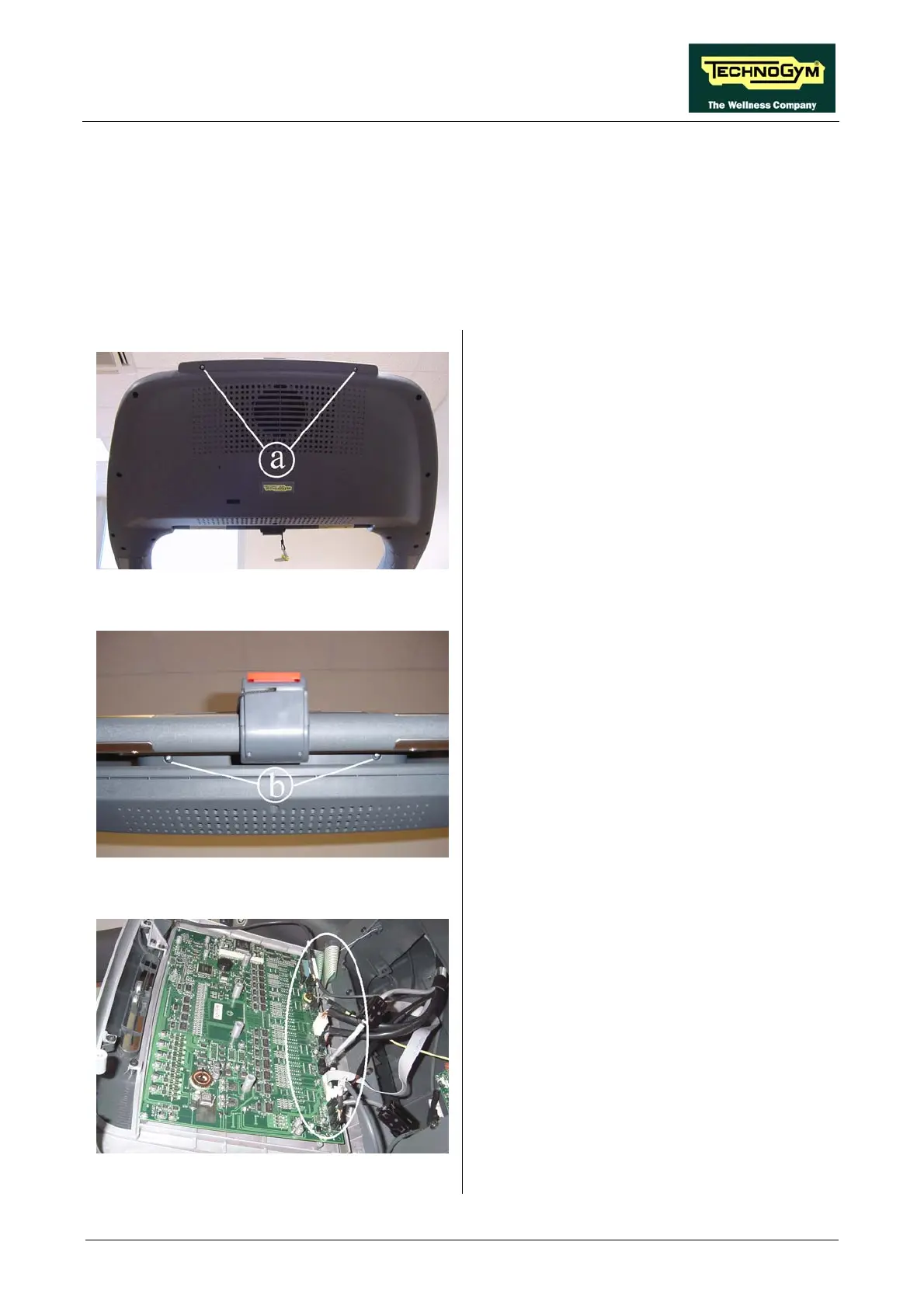

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 2 screws a using a medium
Phillips screwdriver.
Figure 7.1-2
3. Back off the 2 screws b using a medium
Philips screwdriver.
Figure 7.1-3
n the figure.
To remove the display:
5. Disconnect the connectors indicated.
6. Disconnect the 2 cords.
7. Remove the display.
To reassemble the display, carry out the above
steps in reverse order.
4. Open the display, leaving it attached to the
machine as shown i
