Technogym Run MED - Disassembling the Motor Compartment Fan and the Limit Switch

RUN MED: Service & Maintenance Manual - rev. 1.0
Page 7.12
7.10. DISASSEMBLING THE MOTOR COMPARTMENT FAN
AND THE LIMIT SWITCH

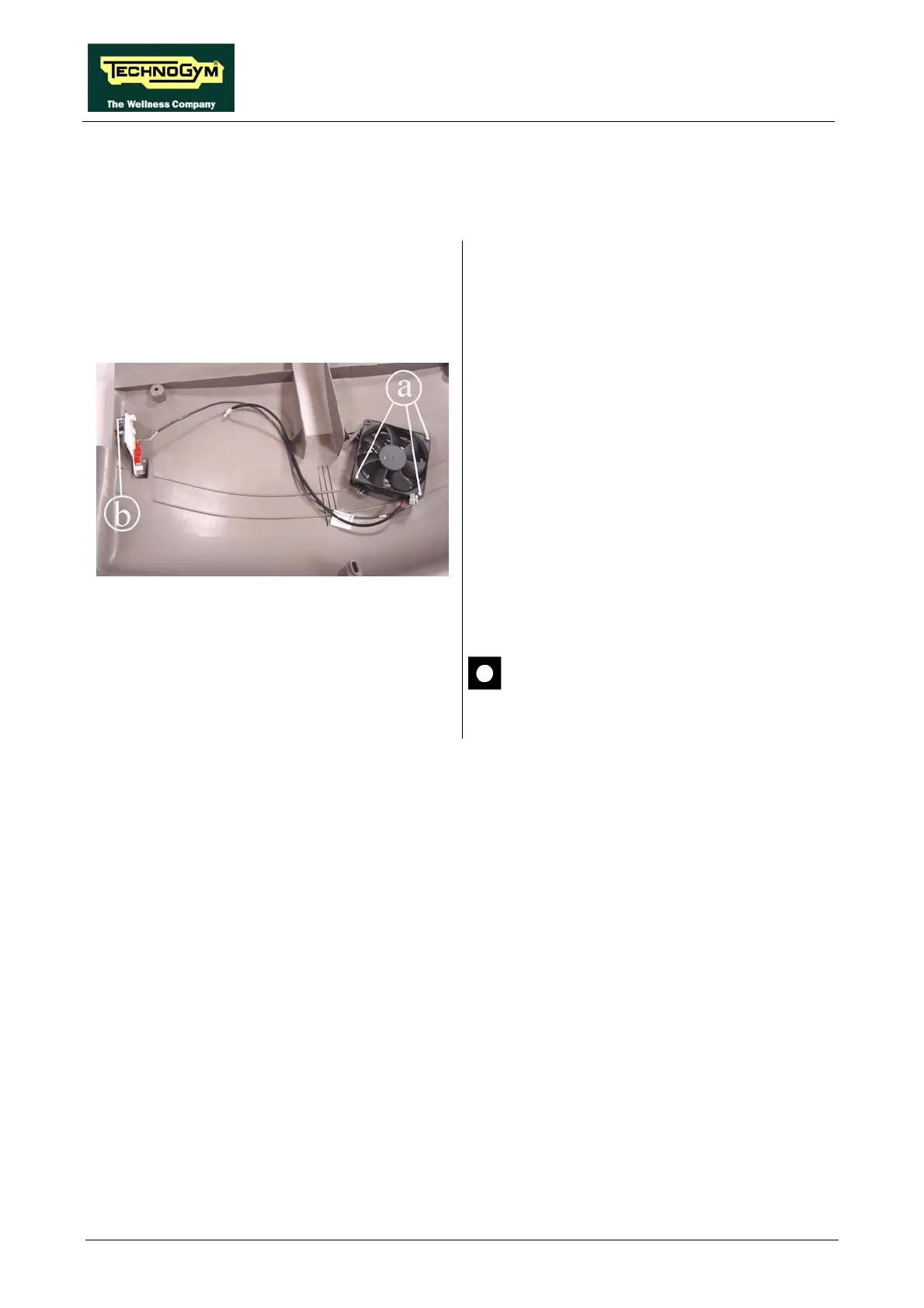

Figure 7.10-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”.
Disassembling the fan:
1. Back off the 3 screws a using a medium
Phillips screwdriver.
2. Remove the fan.
Disassembling the limit switch:
3. Back off the two screws b using an 8-mm
wrench and remove the limit switch from the
guard.
To reassemble the fan and the limit switch, carry
out the above steps in reverse order.
After reassembling the microswitch,
check its alignment.
