RUN MED: Service & Maintenance Manual - rev. 1.0
Page 7.20

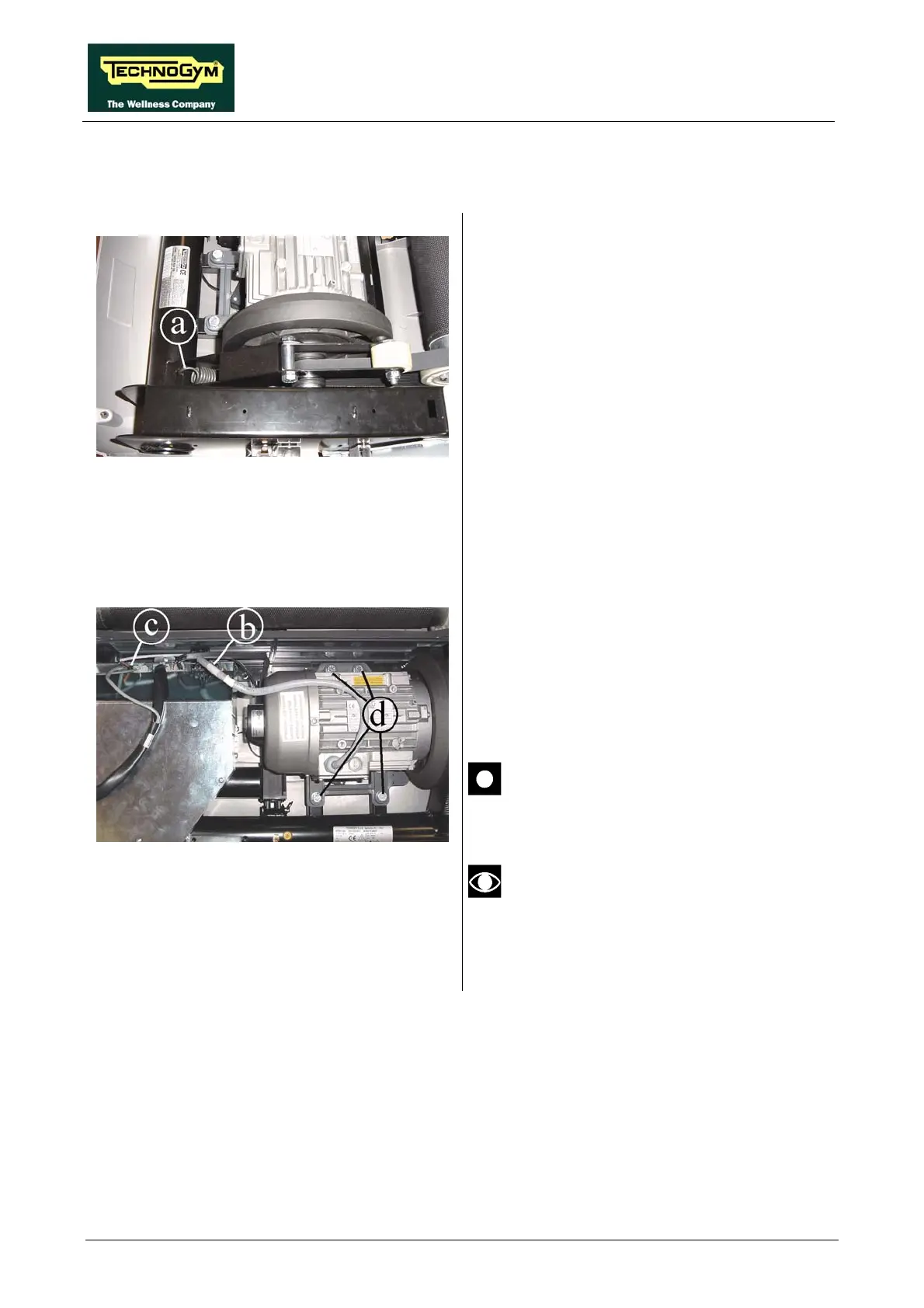

7.15. DISASSEMBLING THE TREAD BELT MOTOR
Figure 7.15-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”, only as
far as removing the upper guard.
1. Release the spring a of the tensioning
mechanism between the drive-belt and the
front roller of the tread belt.
Figure 7.15-2
2. Unplug connector b of the tread belt motor
cable TRM-06.
3. Unplug the connector c of encoder cable.
4. Use a 17-mm socket wrench to back off the 4
screws d securing the tread belt motor to the
machine frame.
5. Remove the tread belt motor.
To reassemble the tread belt motor, carry out the
above steps in reverse order.
After reassembling the tread belt motor,
check the alignment of the motor drive-
belt.
If the encoder is replaced, use the same
model as the encoder that was
disassembled, to avoid possible
incompatibility with the motor.
