Technogym Run MED - Disassembling the Electrical Box

RUN MED: Service & Maintenance Manual - rev. 1.0
7.11. DISASSEMBLING THE ELECTRICAL BOX

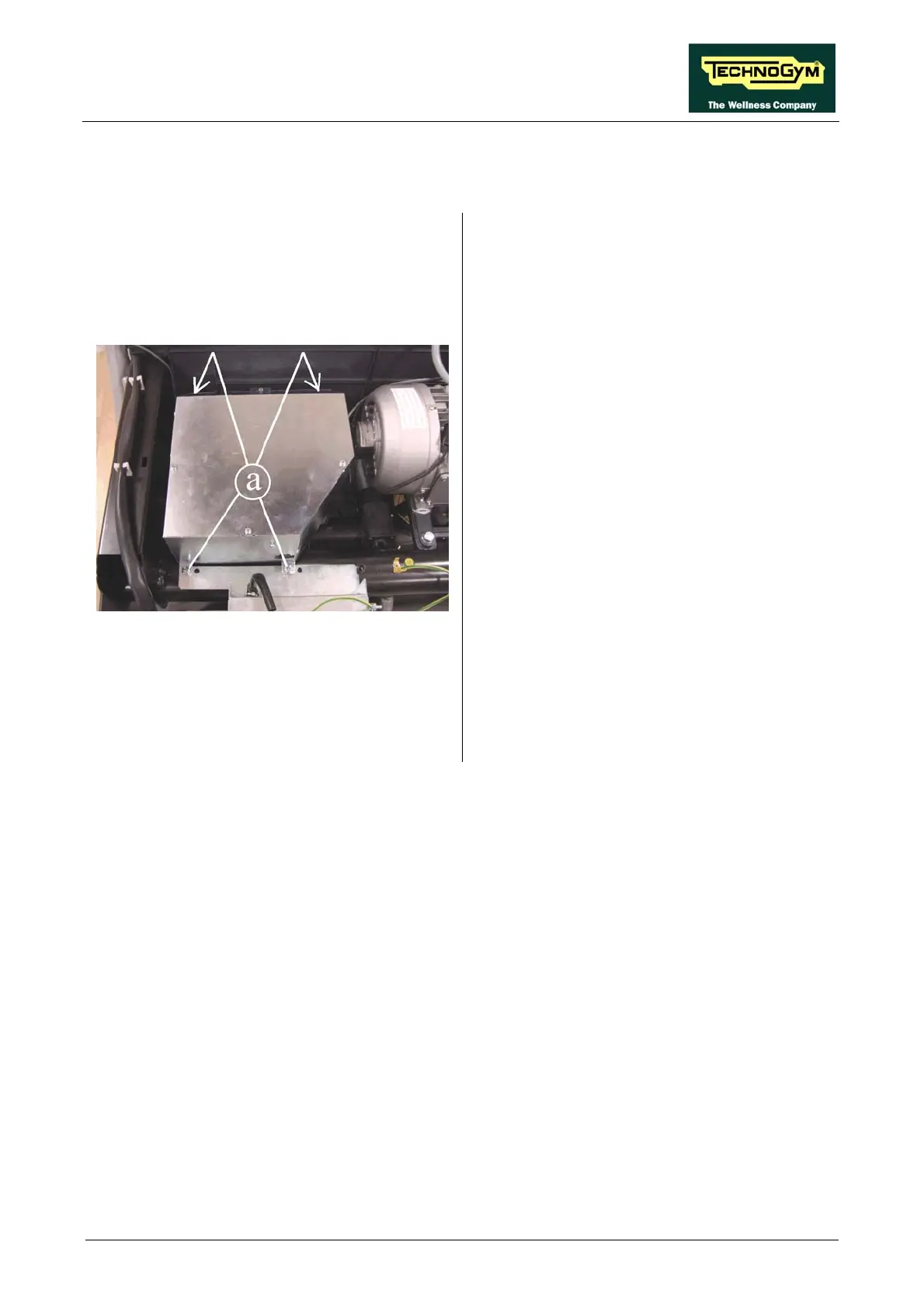

Figure 7.11-1
Carry out the procedure described in paragraph
7.9. “Disassembling the motor guard”, only as
far as removing the upper guard.
1. Back off the screws a using a medium
Phillips screwdriver.
2. Remove the entire box from its compartment
in the machine.
3. Disconnect the cables entering the electrical
box:
• Power supply cable from the power
supply box;
• Cable connecting upper and lower
assemblies (TRM-19);
• Limit switch cable (TRM-54);
• Ground connection cable;
• Fan cable (TRM-05);
• Tread belt motor cable (TRM-06);
• Tread belt motor encoder cable (TRM-
07);
• Elevation motor cable (TRM-08).
To reassemble the electrical box, carry out the
above steps in reverse order.
Page 7.13
