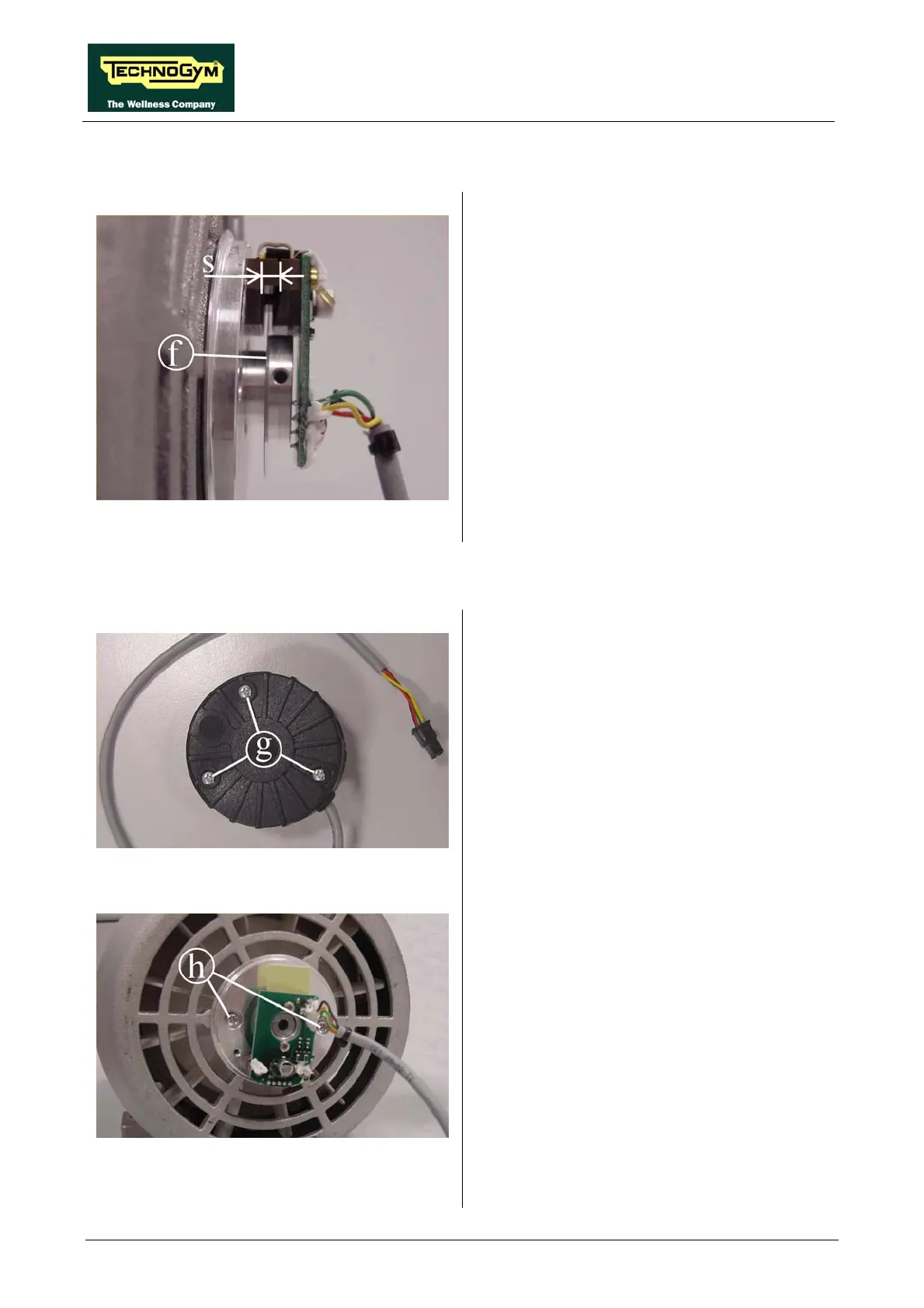

7.14.1. REASSEMBLING THE SAME ENCODER
Figure 7.14-4
To reassemble the encoder removed previously:
1. Fix the wheel f so that it is at the centre of
the detection region, indicated by dimension
s in the figure.
Complete the reassembly by carrying out the
above steps in reverse order.
7.14.2. ASSEMBLING A NEW ENCODER
Figure 7.14-5
To assemble a new encoder:
1. Back off the 3 screws g using a small Phillips
screwdriver and remove the plastic cover.
Figure 7.14-6
2. Using a 2.5-mm hex wrench, fix the encoder
to the motor using the two screws h.
Continued on following page →
