RUN MED: Service & Maintenance Manual - rev. 1.0
Page 7.4
Figure 7.3-4
a medium
.
To reassemble the circuit boards, carry out the
above steps in reverse order.

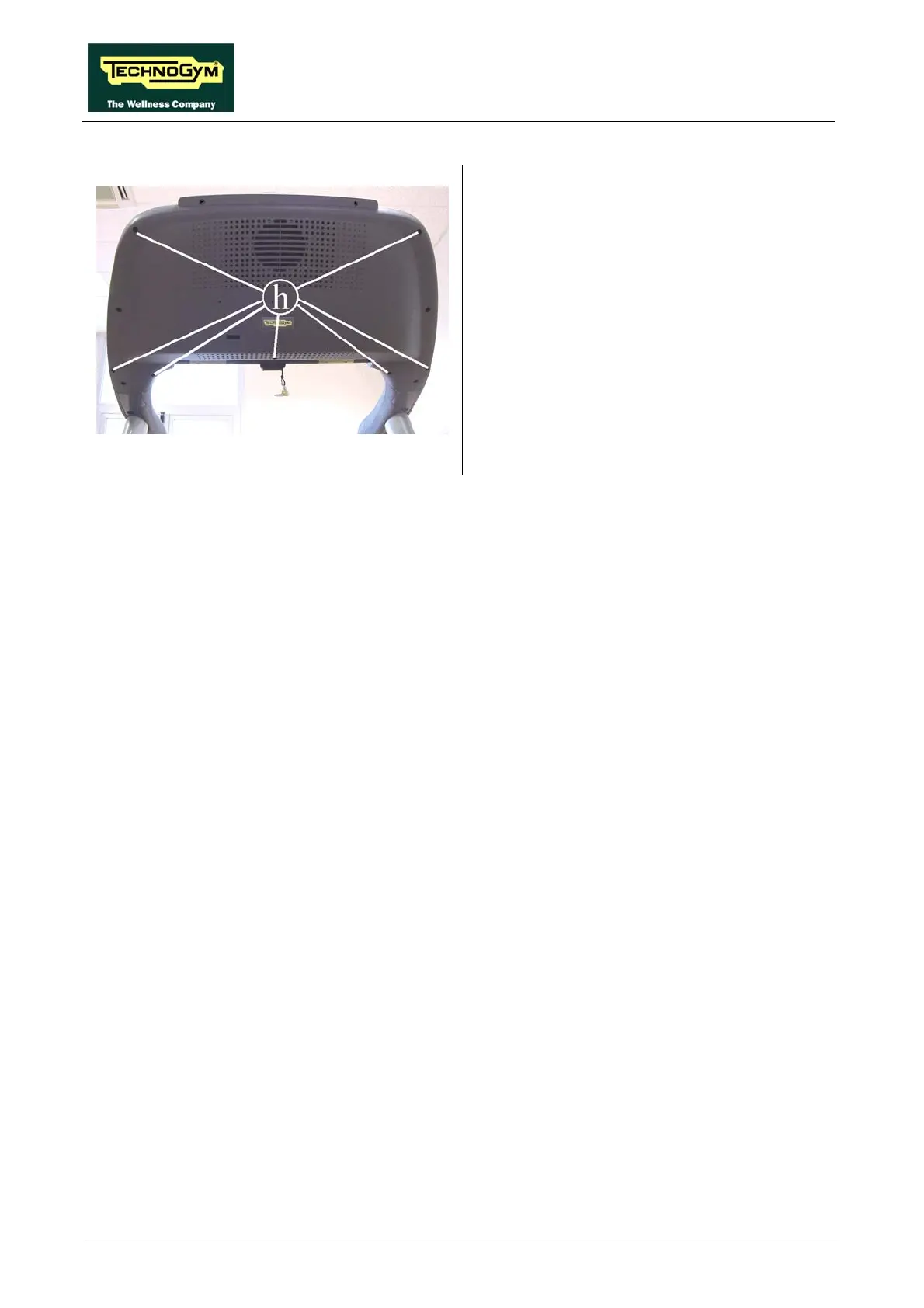

4. Back off the 7 screws h using
Phillips screwdriver.
Remove the front display support. 5
6. Remove the CSafe board from the rear
display support.
