Trigger Mode and Holdoff
To Use

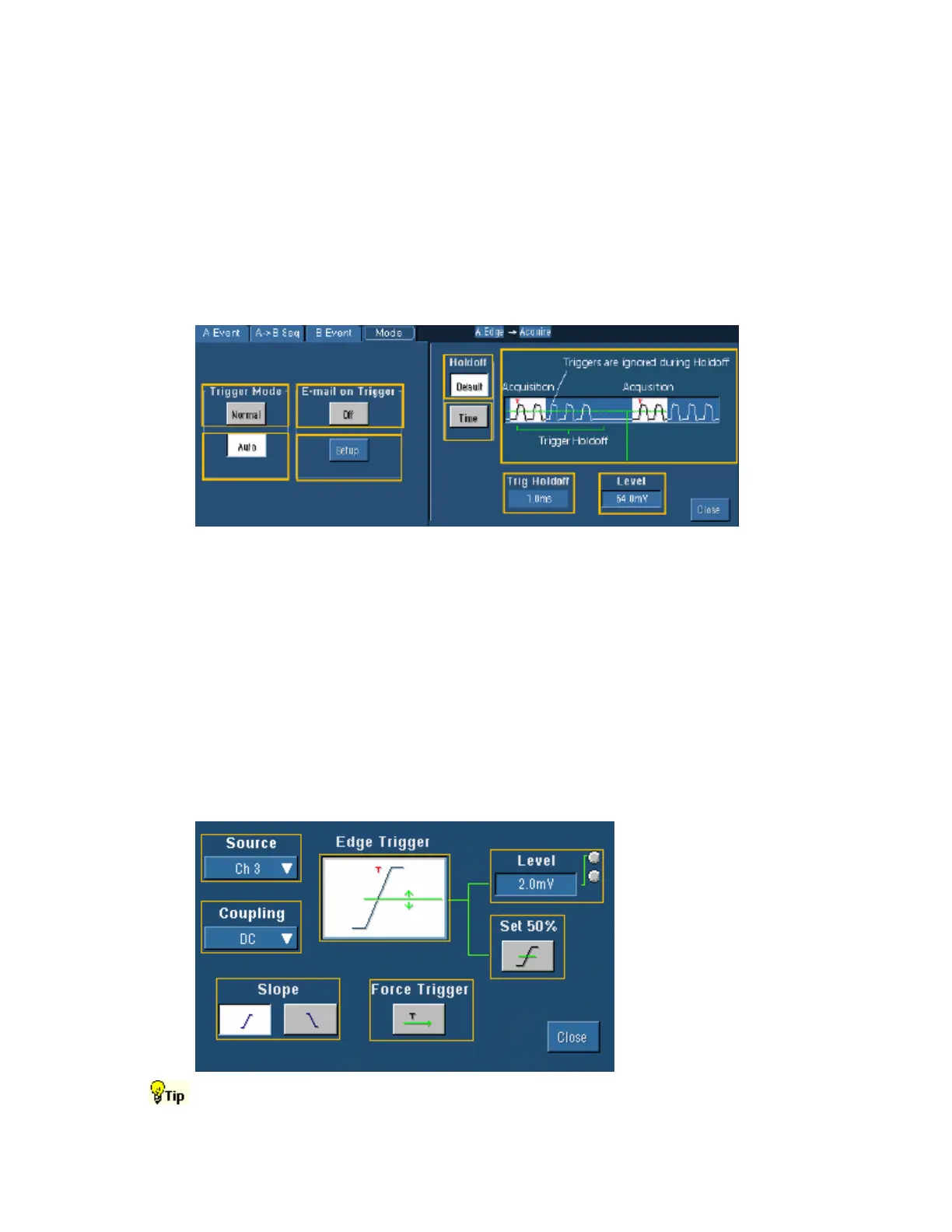

To set the Trigger Mode, click either Auto or Normal. To set the Trigger Holdoff time manually,
click Time, and then use the multipurpose knob with the Trig Holdoff control to set the holdoff
time. The Holdoff setting range is 1.5 µs (minimum holdoff available) to 12 seconds (maximum
holdoff available). To enable E-mail on Trigger click On. To setup the e-mail on event parameters,
click Setup. Set the A Event trigger level using the A Trig Level control and the multipurpose
knob.
Behavior
Use the holdoff time to delay the trigger system for a specified amount of time between triggers.
You can set the holdoff time to a value that synchronizes the instrument with an incoming signal
to generate a stable display and avoid triggering on non-desired events.
If E-mail on Event has already been set up, clicking E-mail on Trigger enables you to send e-mail
on a trigger. If E-mail on Event has not been set up, you must first click Setup, and then configure
E-mail on Event in the setup control window.
Edge Trigger Control Window
To Use
Use these controls to set the Edge trigger parameters.
Select the edge trigger by pushing the EDGE button on the front panel.
