Tektronix TDS5000B Series Online Help

185

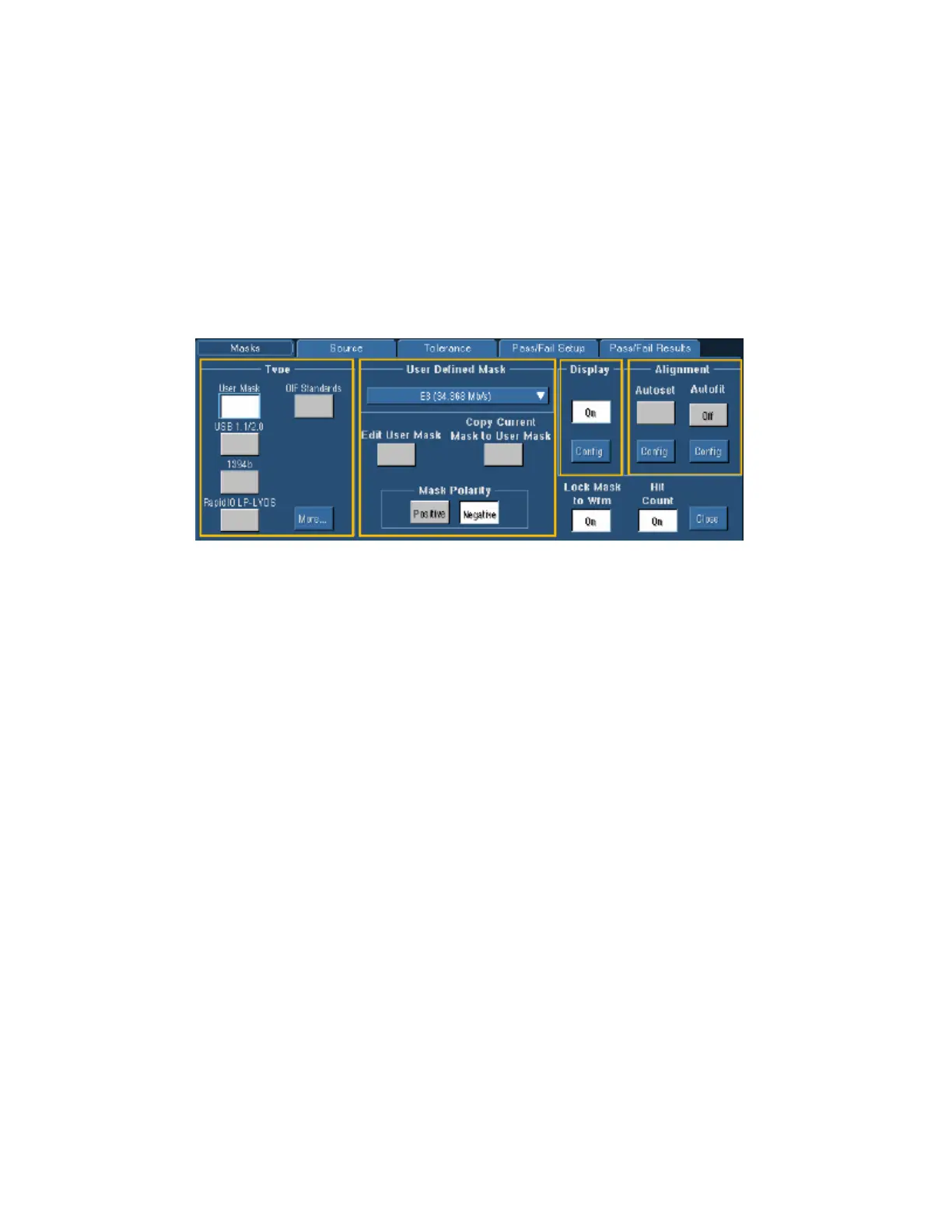

User Mask Setup
Overview
Use this control window to access the Mask Edit control window or to copy a standard mask as a
user mask. You can also select the standard that you want to copy or edit from the standard drop-
down list.
Note
Option SM must be installed to have access to mask types other than a User mask.
To Use
From the Mask Setup control window, click More, and then click the User Mask type control.
Click the Edit User Mask control to access the Mask Edit control window. Click the Copy Current
Mask to User Mask to make the current mask a user mask.
Behavior
Clicking the User Mask control gives you access to the User Mask in the standard drop-down list.
Clicking the Edit User Mask control will replace this control window with the Mask Edit control
window. Clicking the Copy Current Mask to User Mask control will activate a dialog box where
you can overwrite the user mask.
Mask Edit Control Window
Access this control window from the Mask menu by selecting Mask Edit Setup….
Overview
Use this control window to select the segment and vertex for editing, set the Vertical and
Horizontal Mask Values, and save or recall masks.
