specify widths for either positive or negative pulses. The pulse widths are measured at the voltage
level specified by the Level control.

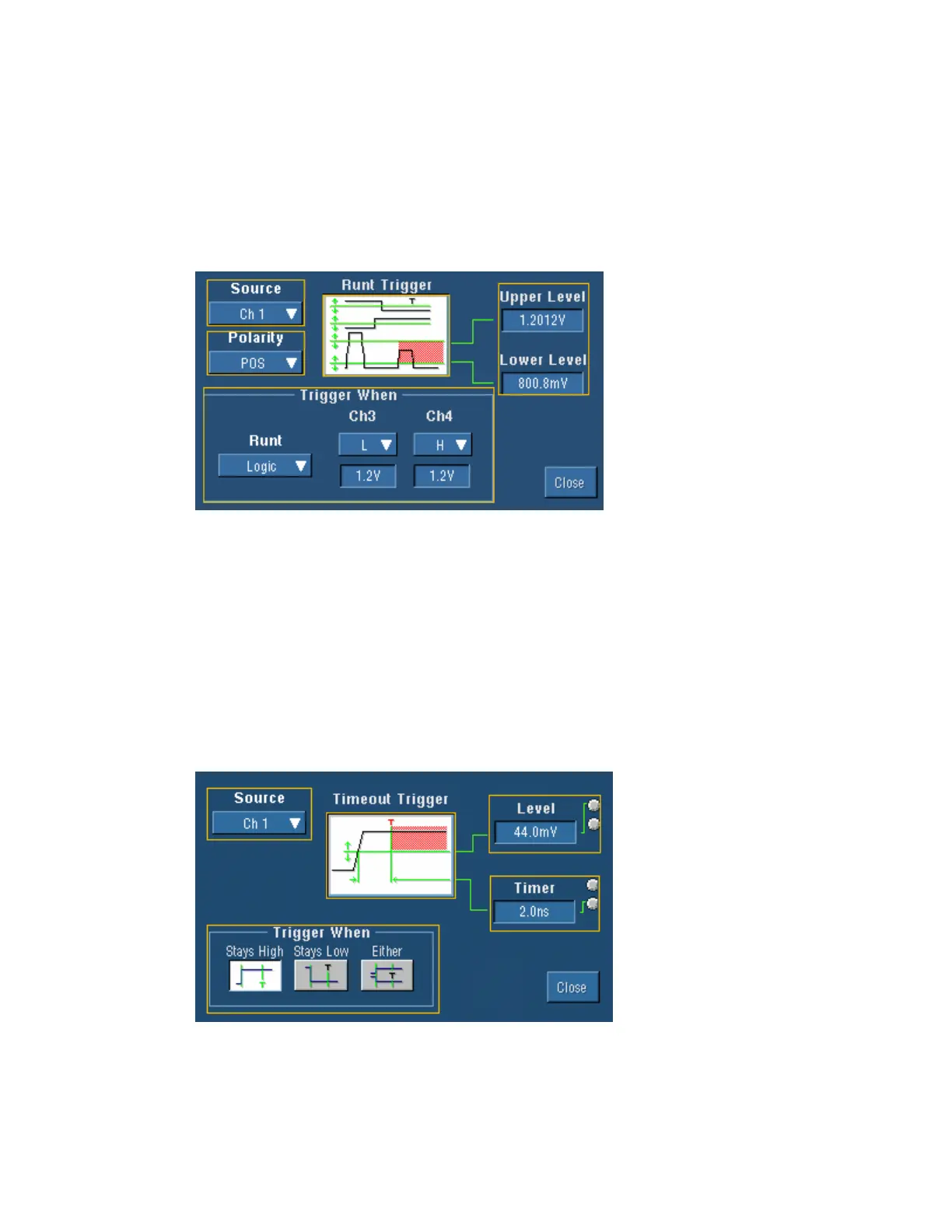

Runt Trigger Control Window
To Use
Use these controls to set the Runt trigger parameters.
Behavior
Use the Upper Level and Lower Level threshold controls to set the voltage ranges that define a
valid pulse. Runt pulses are short pulses that cross one threshold but fail to cross a second
threshold before crossing the first threshold again. The pulse widths are measured at the voltage
level specified by the Level control. These pulses can also be qualified by time or by the logical
state of other channels.
Timeout Trigger Control Window
To Use
Use these controls to set the Timeout trigger parameters.
