145
Color Palettes
To Use

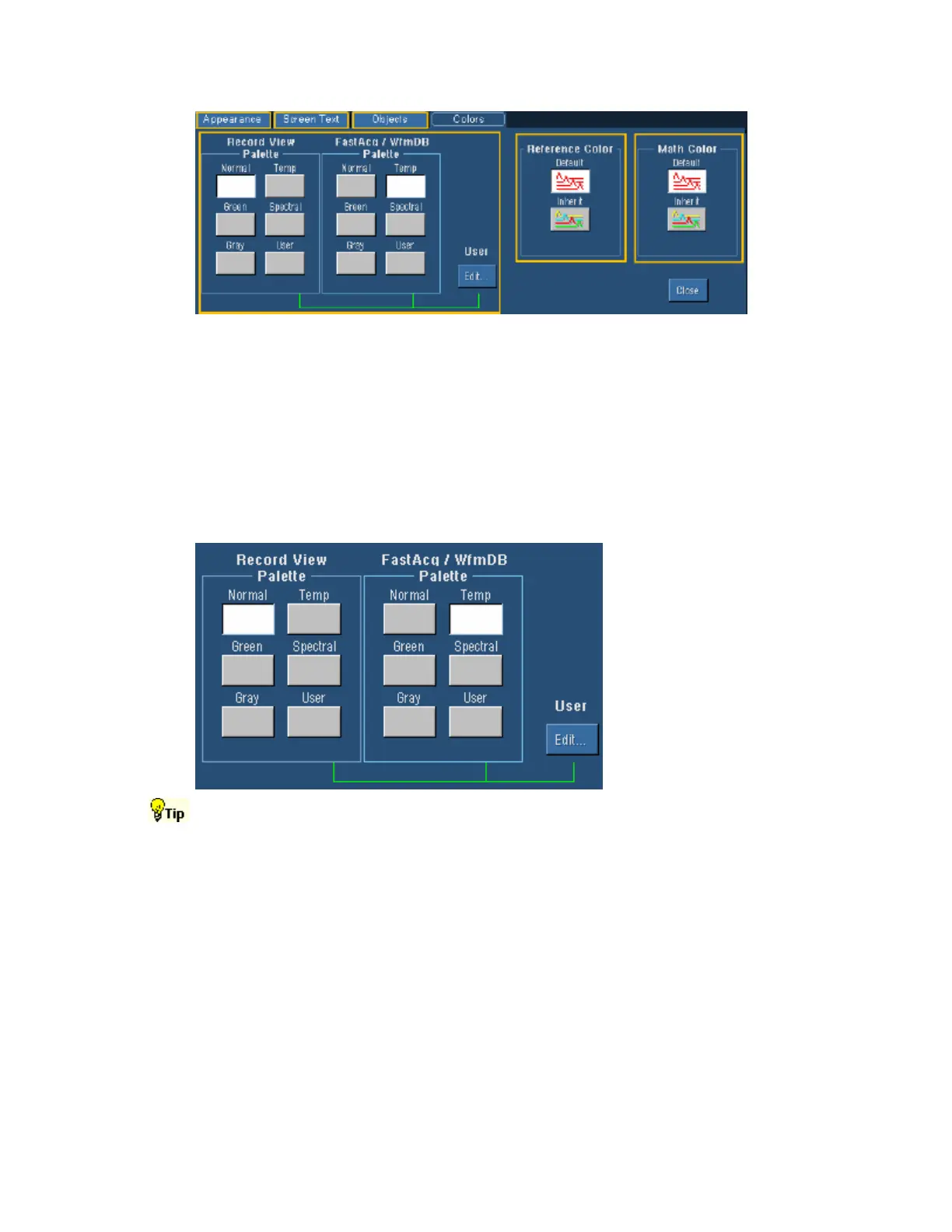

Use the buttons under Record View Palette to define the color for live waveforms. Use the buttons
under FastAcq/WfmDB Palette to define the color for live waveforms when using Fast
Acquisition or Waveform Database acquisition mode. Click one of the buttons to select the color
for displayed waveforms.
Click the User Edit… button to activate the Display Palette where you can customize the display
color.
Use the Display menu Record View Palette or the Fast/Acq WfmDB Palette submenu to
directly access the color palettes.
Behavior
Normal displays hues and lightness levels for best overall viewing. The color of each channel
waveform matches the color of the corresponding front-panel vertical SCALE knob.
On the Spectral (Spectral Grading) palette, areas of the waveform with the highest sample density
appear in blue shades while the areas of lowest sample density appear in red shades.
On the Temp (Temperature Grading) palette, areas of the waveform with the highest sample
density appear in warmer colors (red shades) while the areas of lowest sample density appear in
cooler colors (blue shades).
