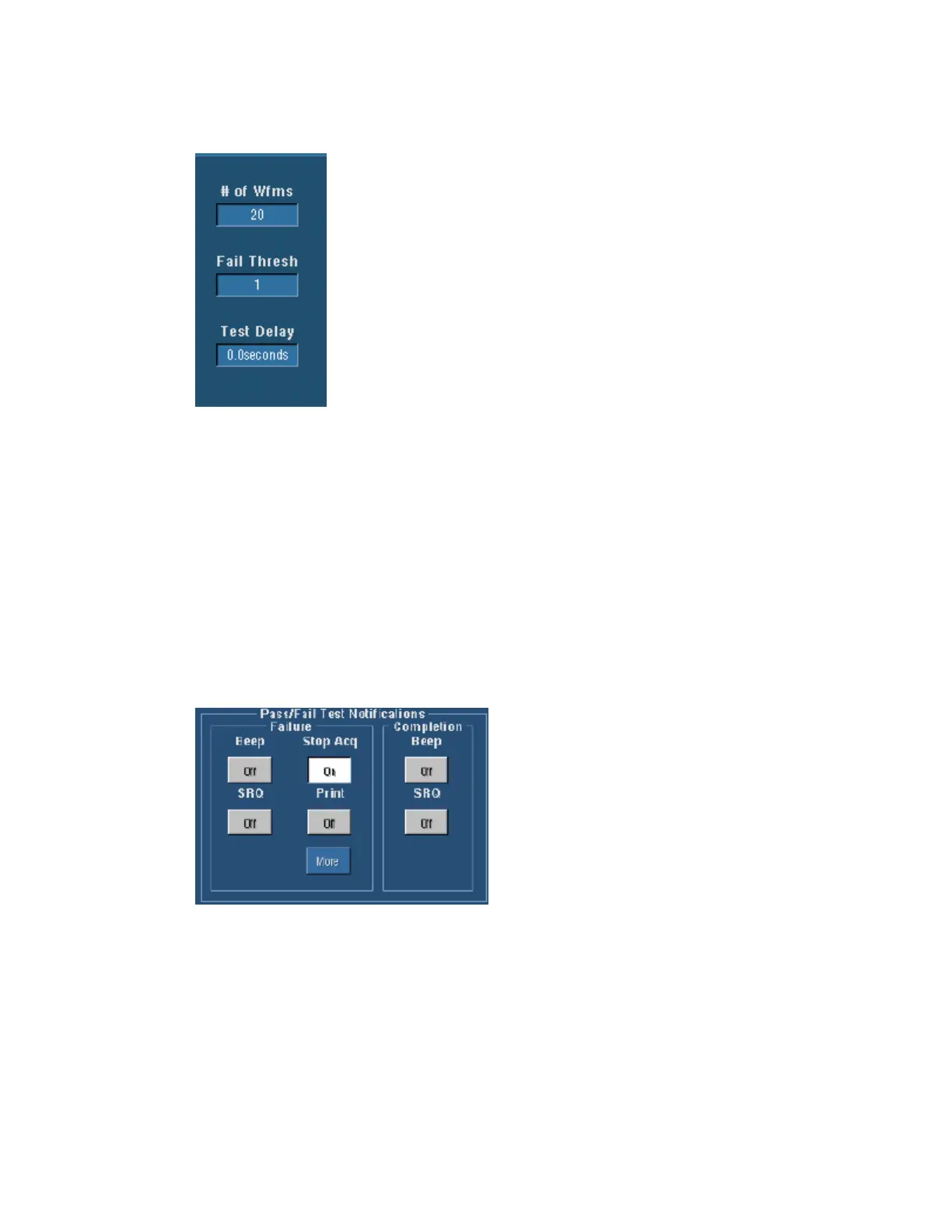

Mask Test Pass/Fail Controls
Overview
Use the # of Wfms (Samples), Fail Thresh, and Test Delay to set the
parameters for the mask test.
Note
If you are using Waveform Database mode, the # of Wfms text box
changes to a Samples text box.
To Use
Click the # of Wfms (Samples) text box to activate the pop-up
calculator. Enter the number of waveforms to use in a test. In the Fail
Thresh text box enter the minimum number of waveforms that must
fail for the test to fail. Enter the number of seconds to wait before
starting the test in the Test Delay text box.
Behavior
Entering a number in the # of Wfms (Samples) text box stops the test when that number has been
reached.
If the waveforms or samples that fail are equal to or greater than the number in the Fail Thresh text
box, the test has failed. If the failed waveforms or samples are less than the number in the Fail
Thresh text box, the test passes.
The instrument begins sampling after the number of seconds has passed that is set in the Test
Delay text box. Use the Test Delay if you need to give the signal source time to stabilize.
Mask Pass/Fail Test Notification
Overview
Use the Pass/Fail Test Notification to set the
mode of notification, send commands, save
waveforms, send e-mail, print, and log data
when a waveform fails or a test completes.
To Use
Clicking the controls will switch between on and off. If the control is off, click it to turn it on.
Clicking the More control switches between additional controls and the controls shown in the
graphic.
Behavior
When Beep in the Failure field is turned on, the instrument will beep when a test fails. When Beep
in the Completion field is turned on the instrument will beep when the test is completed.
