180
The segments of a mask are the polygonal regions on the screen. Segment one is the left upper
most polygon. Segments are assigned from top to bottom and left to right on the screen.

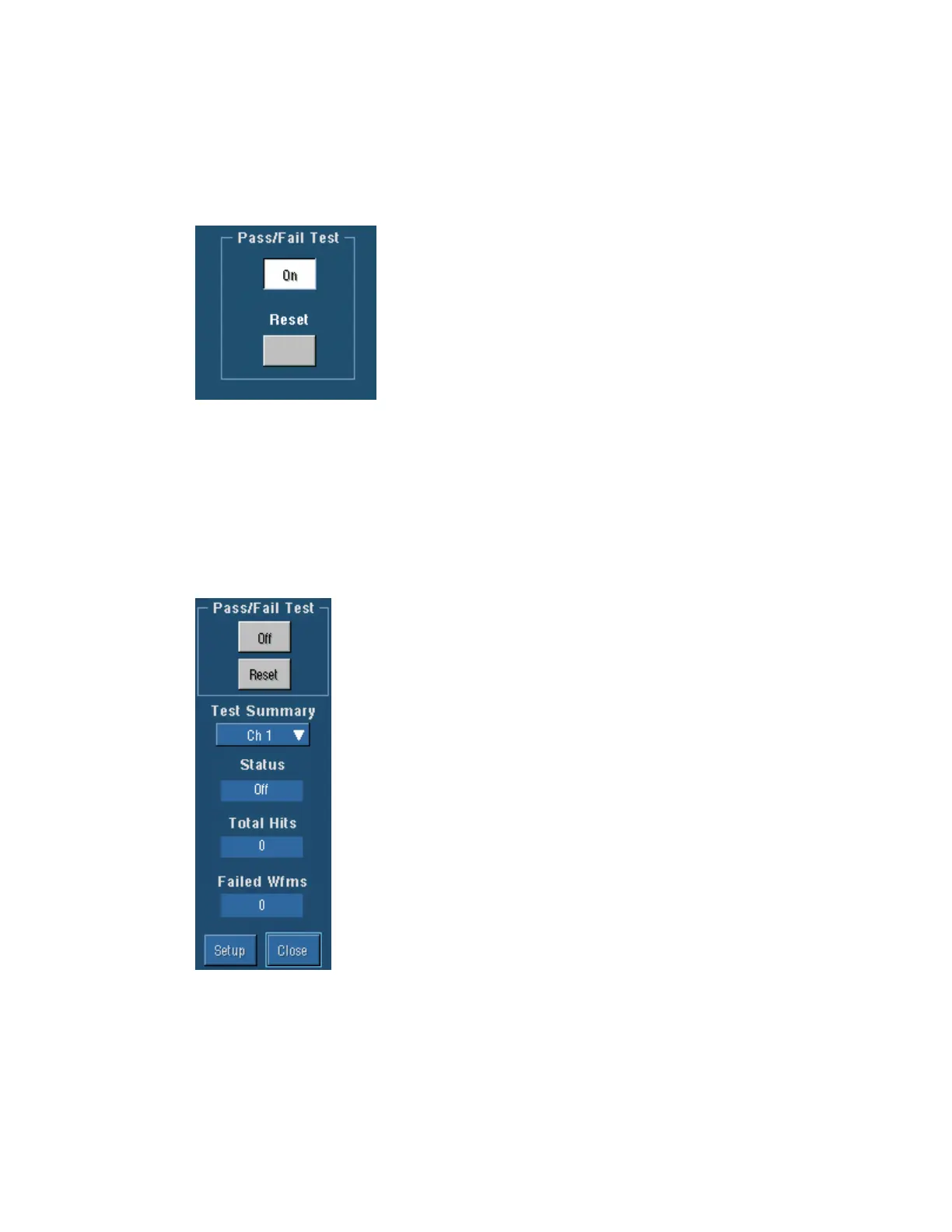

Mask Test Start or Reset
Access these controls from the Masks Pass/Fail Results Setup control window.
Overview
Use this control window to start a test or reset the test to the
starting point.
To Use
Click the On/Off control to start the test. Click the Reset
control to reset the test to the beginning.
Behavior
When the test starts, it uses the parameters in the Pass/Fail Test Setup control window. When the
test is reset, the Total Hits, Failed Wfms, Hits per segment, and Waveforms Tested fields are reset
to zero.
Mask Test Controls Control Window
Access this control window by clicking the Controls button on the Pass/Fail Results Setup control
window.
Overview
Use this control window to run a test and view the results. You can
also reset or start the test and return to the Mask Setup control
window from this control window.
To Use
Click the On/Off control to start and stop the test. Click the Reset
control to reset the test. Click the drop-down arrow in the Test
Summary field to select a different source. Status, Total Hits, and
Failed Wfms are read only fields. Click the Setup control to return to
the Mask Setup control window.
Behavior
This control window allows a mask test to run on a full screen and
still provide access to the start, stop and reset functions. In addition,
you can see the test summary for each input selected.
