Behavior

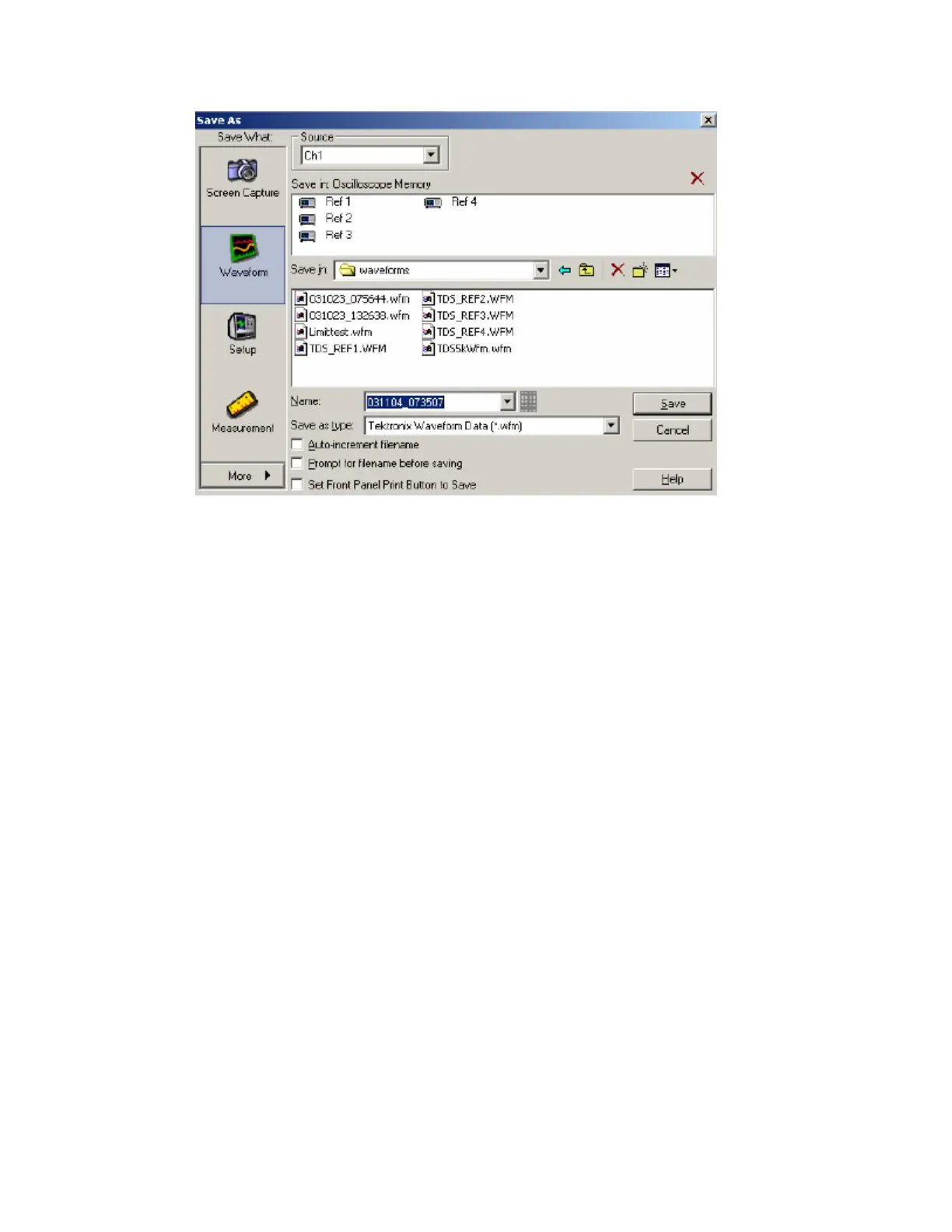

This dialog box opens when you select Save As from the File menu or click Save from the
Reference Waveform controls. The default file type is a Tektronix waveform file (.wfm). If you
select a different file type from the Save as Type list, you can also define the options for saving the
waveform.
The default folder for reference waveforms is C:\TekScope\Waveforms. The following file
formats are available:
• .wfm. Internal instrument formats
• .csv. Usable by spreadsheets such as Microsoft Excel
• .dat. Usable by Mathcad and MATLAB
• .txt. Standard text file format
Note
Any characters that you enter in the file name box become part of the file name. The instrument
does not use any user-defined file extensions.
Recall Dialog Box: Waveform
Access this control window from the File menu, Recall control or from the Reference Waveform
controls, Recall button.
To Use
Use this dialog box to recall a saved waveform file to a reference location. From the Destination
list, select the Ref 1-4 location that you want to recall the waveform to. The default folder for
reference waveforms is C:\TekScope\Waveforms. Use the pop-up keyboard to enter a file name,
or click the file name to select it.
