Behavior

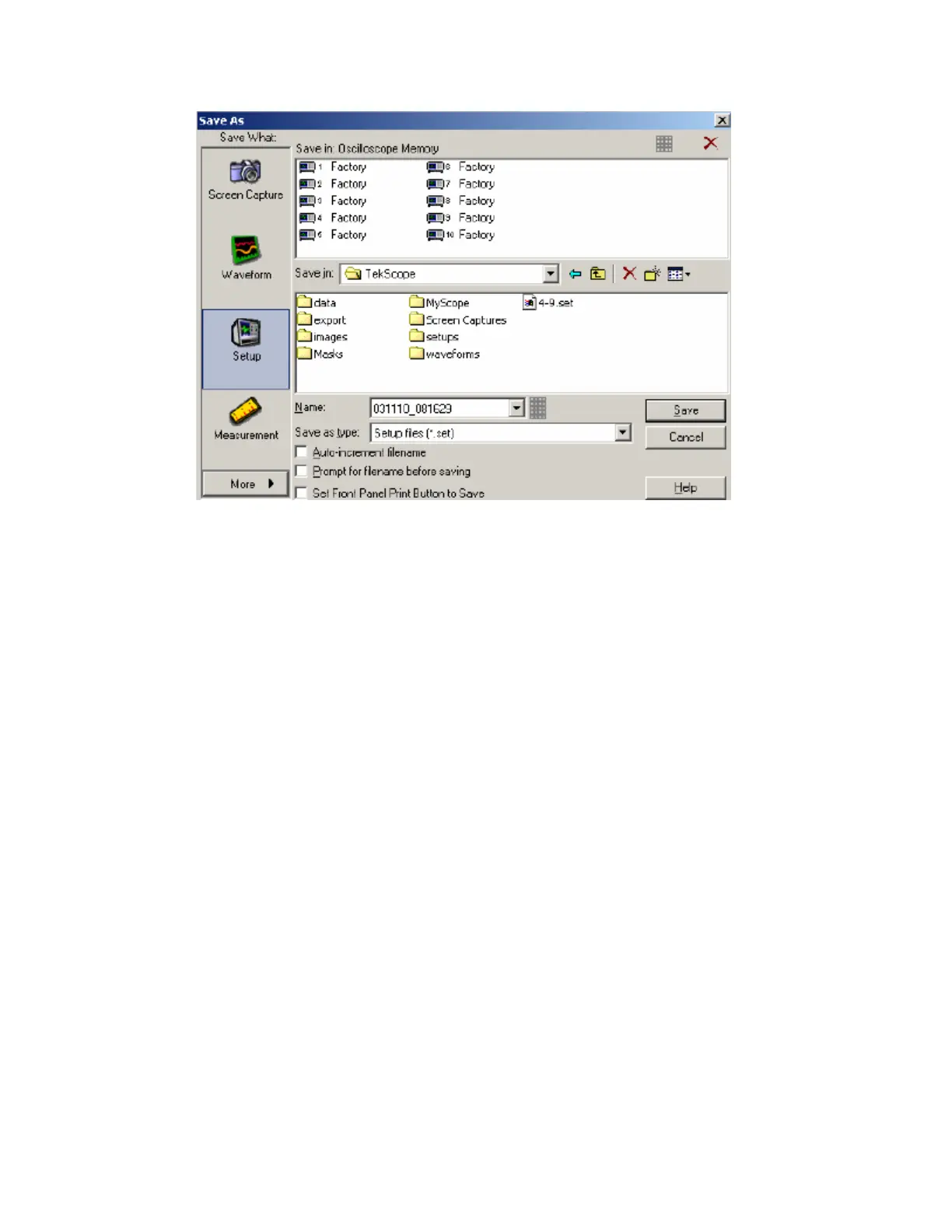

You can display up to ten saved instrument setups in this dialog box. Additional setups can be
saved to the hard drive. When you save a setup, the label adjacent to the setup icon changes from
its previous value to User. You can save setups to any location labeled Factory without
overwriting a saved setup.
The data in reference waveforms is not saved with the instrument setup. However, the setup
information does include which reference waveforms are turned on and which reference
waveforms are used with math waveforms and automatic measurements. If you want to save the
reference waveform data, save the reference waveform separate from the instrument setup.
The instrument preference settings are not saved with the setup. They are saved when the
instrument power is powered off.
Note
Before saving an instrument setup, make sure that the location does not contain a setup that you
have previously saved. The previously saved setup will be overwritten.
Recall Dialog Box: Instrument Setups
Access this dialog box from the Recall toolbar button or the File menu Recall command.
Overview
Use the Recall dialog box to recall instrument setups.
To Use
Setups are recalled from an internal file on your hard drive or from a setup file that you have
named. Click one of the icons under Look in Oscilloscope Memory, and then click Recall to
restore the setup. To recall the default factory setup for the instrument, click the Factory Defaults
icon.
