Graticule Zoom Control Window
Access this control window from the Vertical or Horiz/Acq menu, Graticule Size submenu, Size
command.
To Use

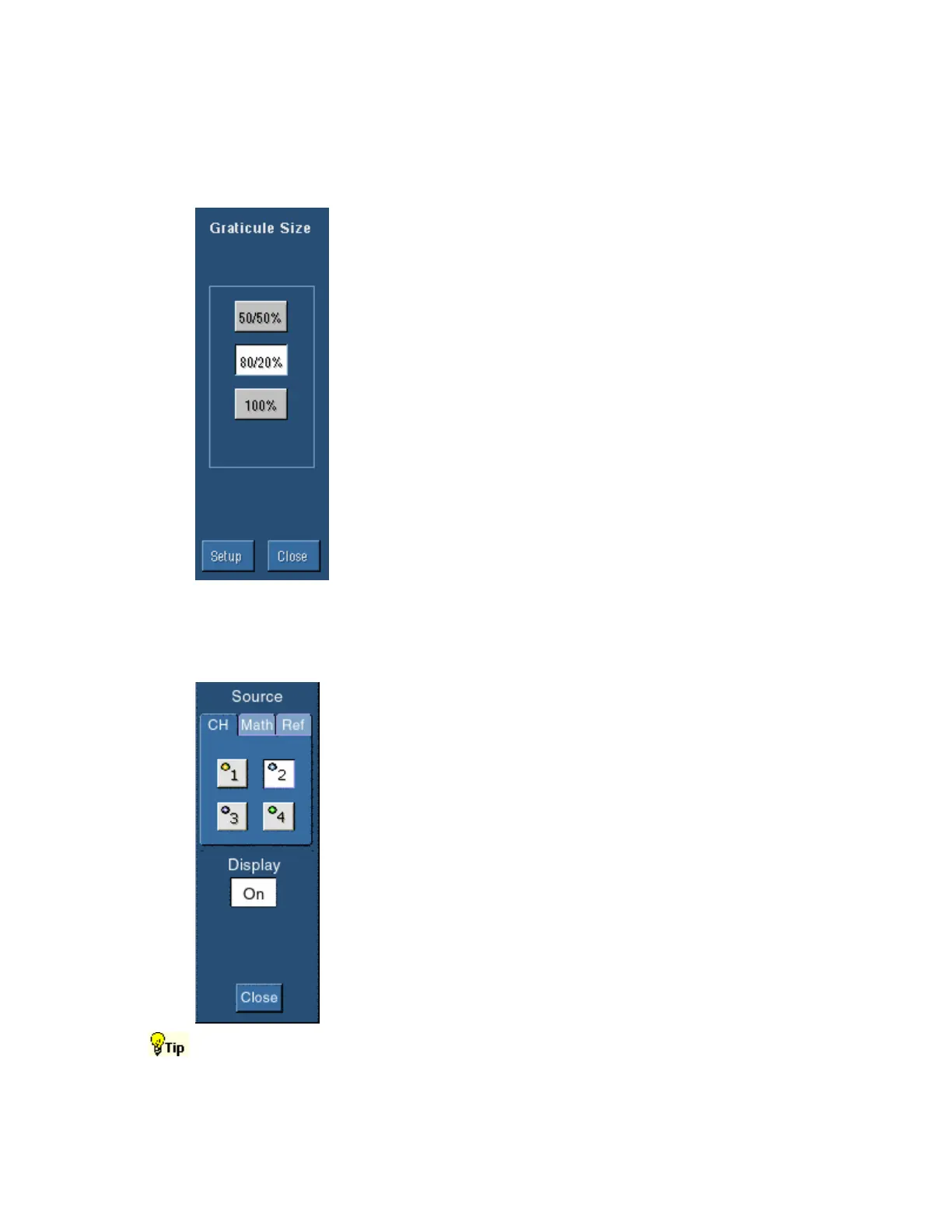

Click one of the Graticule Size buttons to set the proportion of the
display area for the acquisition window and zoom window. Click Setup
to access the Zoom Setup control window.
Behavior
Click the 50-50 button to allocate half of the available display for the
zoomed graticule and half of the available display for the acquisition
window. Click 80-20 to allocate 80% of the available display for the
zoomed graticule and 20% for the acquisition window. Click Full to
use the entire display for the zoomed graticule.
Waveform Display Control Window
Access this control window from the Vertical menu Display On/Off command. Display On/Off is also
available on the Math menu.
Overview
Use the Waveform Display control window to turn the selected
waveform on or off.
To Use
Click Display to turn the selected waveform on or off. Use the Channel
Selector tabs to select a valid channel, math, or reference waveform.
Behavior
The Display button applies only to the selected waveform. Each
waveform (channel, math, or reference) has its own Display button.
Any displayed channel, math, or reference waveform can be turned off
without impacting any math functions, measurements, or histograms
done on that waveform. You may want to turn some waveform displays
off to make the remaining waveforms easier to view and analyze.
Use the dedicated front panel buttons to turn the channel waveforms on or off.
