Inverting Channel Waveforms
Use the following steps to invert a channel waveform on the screen.
1 Select the Invert command from the Vertical menu.
2 From the Channel Selector tabs, click the waveform that you want to invert.
3 Click Invert to toggle the button On. The waveform appears flipped on its zero volt axis.
Other waveforms on the screen remain unchanged.
Invert the waveform by clicking the Invert button on the channel’s tab on the Vertical
Setup control window or by right-clicking on the waveform handle, and then selecting Invert
from the shortcut menu.
Connecting Probes

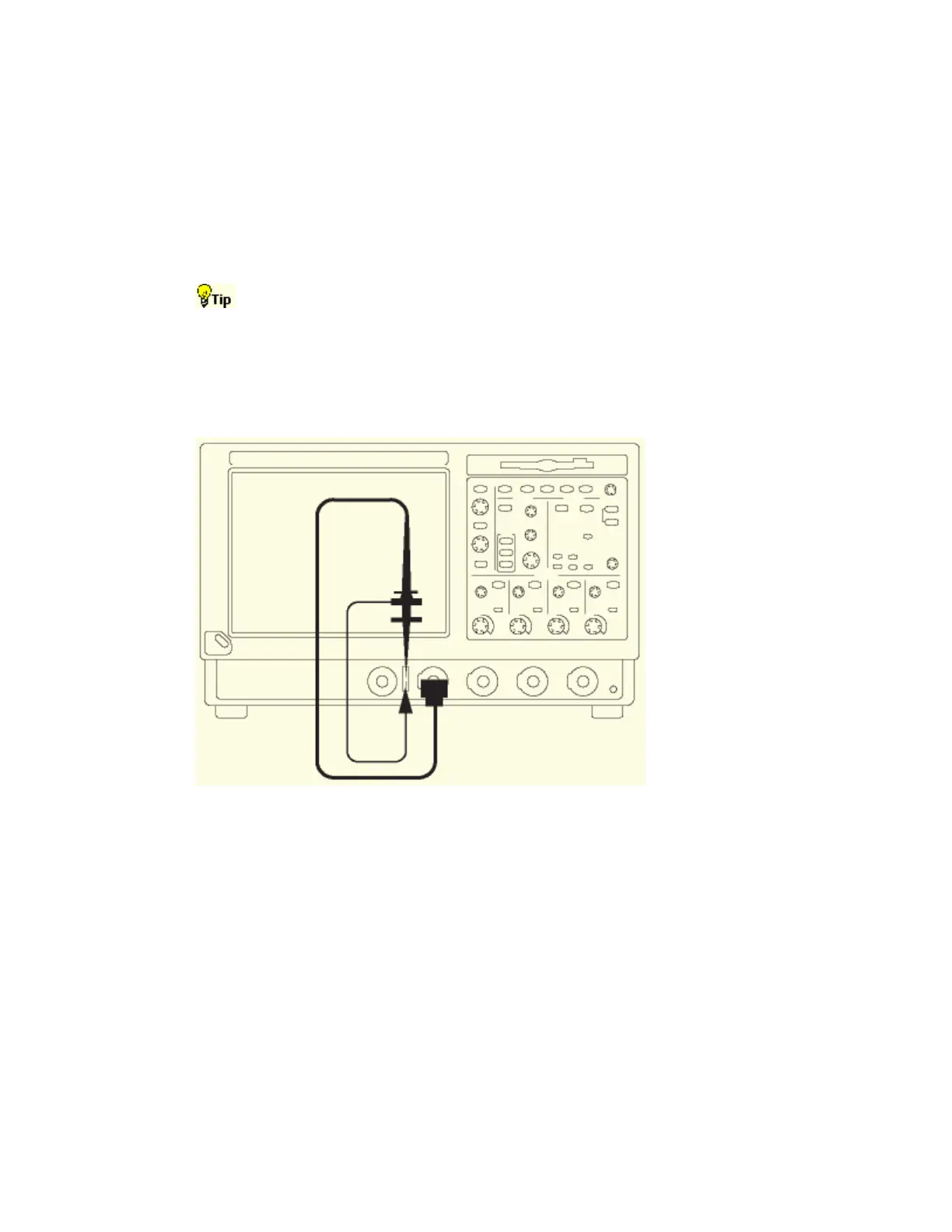

Connect the probe tip and the ground lead to the two probe compensation connectors on the instrument as
shown. If using the probe hook-tip, ensure a proper connection by firmly twisting the tip onto the probe.
Adjusting Display Contrast
If you find that the instrument screen is too bright or too dark, use these steps to adjust the LCD
display contrast to your preference. You need to have a mouse attached to perform this procedure.
1 Right-click on the Windows desktop.
2 Select Properties.
3 Select the Settings tab.
4 Click Advanced.
