Select the File menu Recall Default Setup command to instantly restore the default setup.

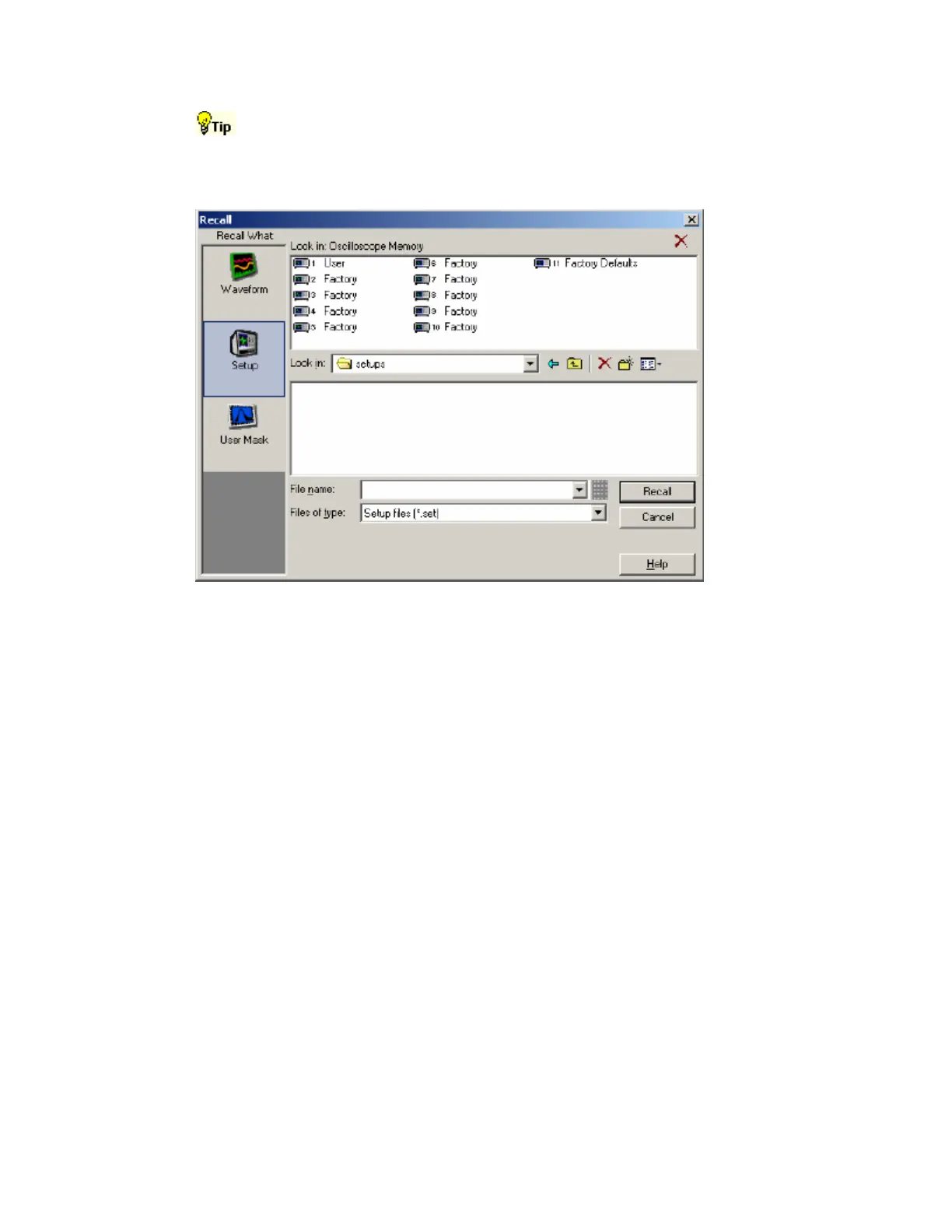

To recall an instrument setup from a file, select the location of the setup from the Look in list.
Select the setup you want to recall, and then click Recall.
Behavior
The setups are restored from an internal file on your hard drive as soon as you click Recall. The
labels adjacent to the icons were created when the setups were first saved. Any of the setups with
the label "Factory" will restore the default factory setups.
The data in reference waveforms is not saved with the instrument setup. However, the setup
information does include which reference waveforms are turned on and which reference
waveforms are used with math waveforms and automatic measurements. If you want to save the
reference waveform data, save the reference waveform separate from the instrument setup. You
can then recall the saved waveform to the setup from the Reference Waveform Controls.
Note
If a restored setup attempts to use an undefined reference waveform (or to use it in a math
waveform or with an automatic measurement), then an undefined reference waveform is created.
This reference waveform becomes a 500-point waveform filled with null data. Any math
waveforms or any measurements done on this waveform will contain invalid or unusable data.
However, you can recall a valid saved waveform to the new reference waveform so that the math
waveforms and the automatic measurements will become valid.
Delete Setups and Reference Waveforms
Access this command from the File menu.
