Triggering and Horizontal Delay Summary

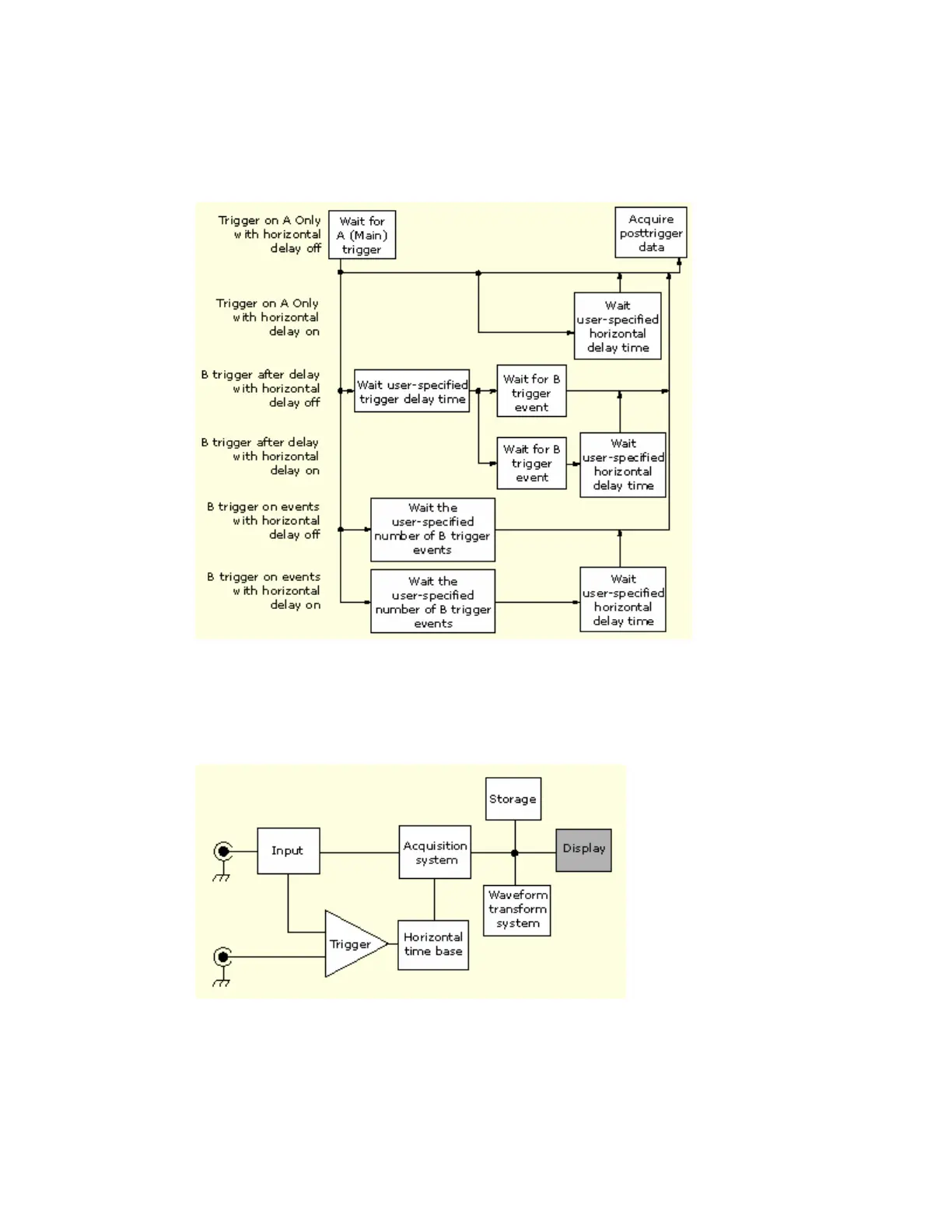

The following figure shows all combinations of triggering and horizontal delay.

Display Overview

This instrument includes a flexible, customizable display that lets you control how waveforms

appear. The following figure shows how the display features fit into the overall instrument

operation.
