219
Behavior
This window is mainly intended for service personnel. The diagnostic information can be used as
part of an incoming inspection or to diagnose potential problems with the instrument. Remove the
input signals before running any of the diagnostics. If diagnostic failures occur, record the failure
information and contact your local Tektronix service personnel for more information.

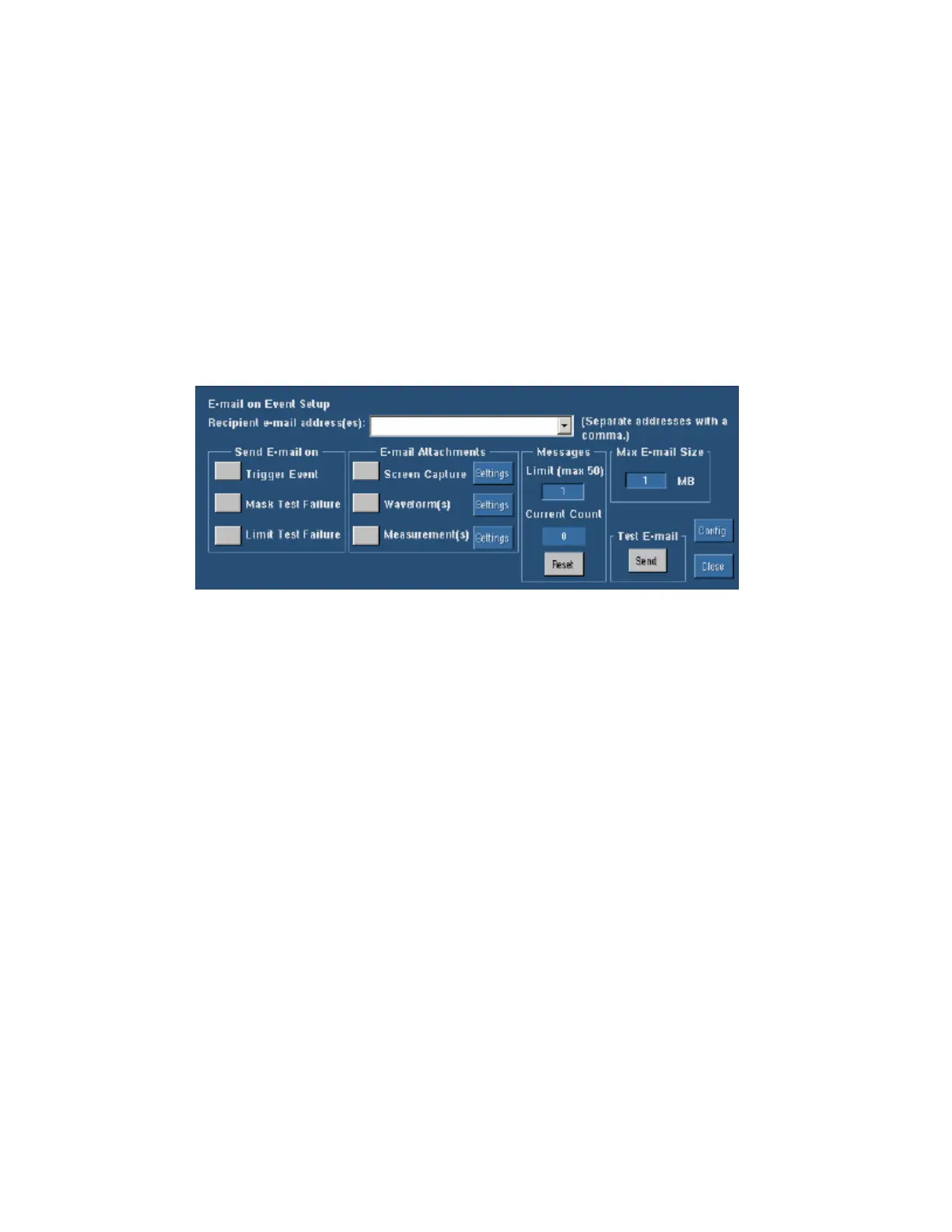

E-mail on Event Control Window
Access this control window from the Utilities menu and select E-mail on Event Setup
Overview
Use the E-mail on Event Setup control window to set up the conditions under which the
instrument will send an email, the types of attachments, and message limits.
To Use
Type the email address(es) to which you want to send a message in the Recipient e-mail
address(es) box. Use a comma to separate multiple addresses.
Select the events on which you want to send e-mail using the Send E-mail on check boxes. Use the
E-mail Attachment check boxes to select the type of attachment to include with the e-mail. Click
the Settings button to open the Save Options dialog box, and set the parameters for the attachment.
Enter the number of e-mail messages to be sent by the instrument, up to a maximum of fifty, in the
Limit text box. Enter the maximum size, up to 2 GBs, for each e-mail message in the Max E-mail
Size text box. Click the Send button to send a test e-mail. Click the Config button to open the E-
mail Configuration dialog box.
Behavior
The maximum number of characters in the Recipient e-mail address box is 252, so you can enter
any number of e-mail addresses up to a total of 252 characters. You can select one or all of the
events to send e-mail on. If you do not have a SMTP server address or e-mail address set up, you
cannot select an event to send e-mail on.
The screen capture, waveform, and measurement types for the e-mail attachments are determined
by the type that you select in the Save Options dialog box when you click Settings.
When the maximum number of messages is reached, the Send E-mail on check boxes are cleared
and the Current Count is reset to 0. You must select the event again to continue sending e-mail.
Clicking Reset changes the current count back to 0.
Attachments that exceed the Max E-mail Size are saved to the hard drive on the instrument.
