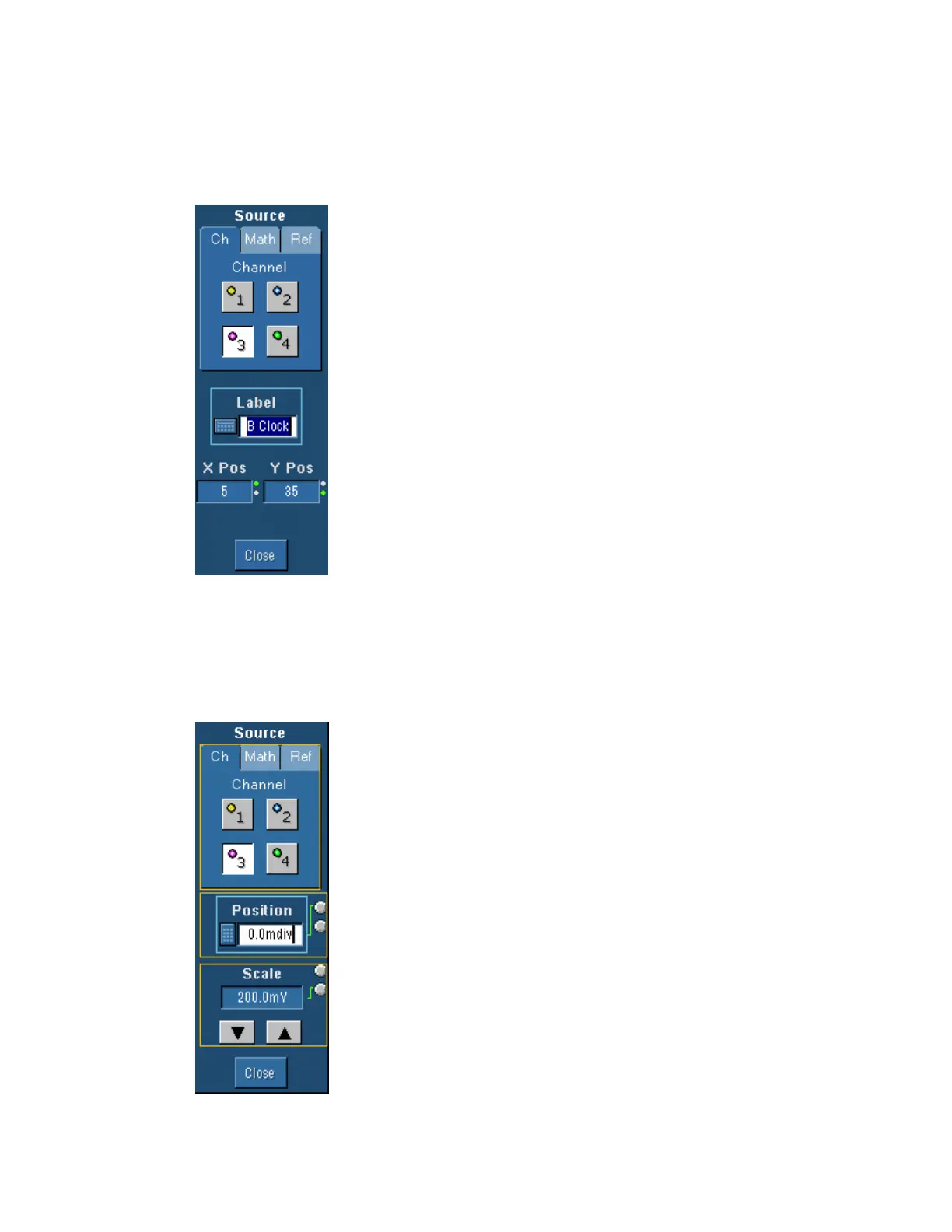

Waveform Label Control Window
Access this control window from the Vertical menu Label command. Label is also available on the Math
menu.
Overview
Use the Waveform Label control window to attach a label to the
waveform.
To Use
Use the Channel Selector tabs to select a valid channel, math, or
reference waveform. Assign a label to the selected waveform with the
pop-up keyboard to make it easier to identify on the screen. Click the
X Pos and Y Pos controls to activate them and use the multipurpose
knobs to position the label on the graticule. You can also position the
label anywhere on the screen by clicking and dragging it to the
desired location.
Behavior
The label applies only to the selected waveform. Each waveform
(channel, math, or reference) has its own label. If you do not enter a
label for the selected waveform, the label will be left blank. A label
only appears when its associated waveform is turned on.
The X Pos and Y Pos control values are relative to the upper-left corner of the display. The values
are expressed in pixels.
Position/Scale Control Window
Access this control window from the Vertical menu Position/Scale command. Position/Scale is also
available on the Math menu.
Overview
Use the Position/Scale control window to set the vertical position
and scale of the selected waveform.
Use the Channel Selector tabs to select a waveform.
In addition to using the controls in this control window, you can also
use the dedicated controls on the front panel to perform the same
functions.
