Measurement Tabs: Amplitude
To Use

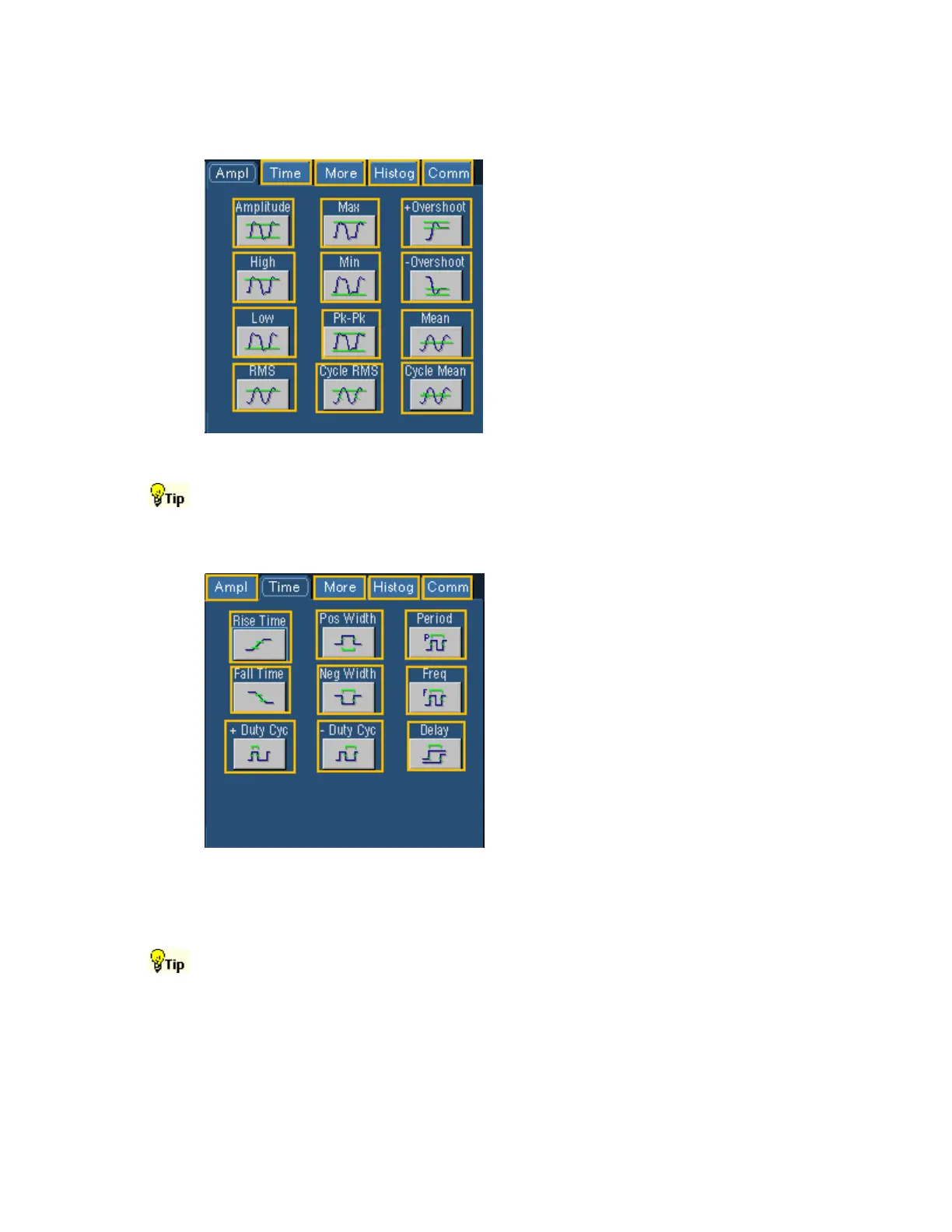

Use the Ampl tab to select automatic
amplitude measurements. Select a source
channel from the Channel Selector tabs, and
click a measurement button to add the
measurement to the Measurement list. Click
Display in the upper-right corner of the control
window to turn the measurement display on
and off.
Behavior
Measurements are updated approximately
three times a second, or less for long record
lengths. Measurements are calculated after
each acquisition. You can display up to eight
automatic measurements.
Select the individual measurements directly from the Measure menu Amplitude submenu.
Measurement Tabs: Time
To Use
Use the Time tab to select automatic time
measurements. Select a source channel from
the Channel Selector tabs, and click a
measurement button to add the measurement to
the Measurement list. Click Display in the
upper-right corner of the control window to
turn measurement display on and off.
Behavior
Measurements are updated approximately
three times a second, or less for long record
lengths. Measurements are calculated after
each acquisition. You can display up to eight
automatic measurements.
A new control window opens when you click Delay. Enter the parameters for the delay
measurement and click Ok to return to the Measurement Setup control window. The delay
measurement is added to the list.
Select the individual measurements directly from the Measure menu Time submenu.
