182

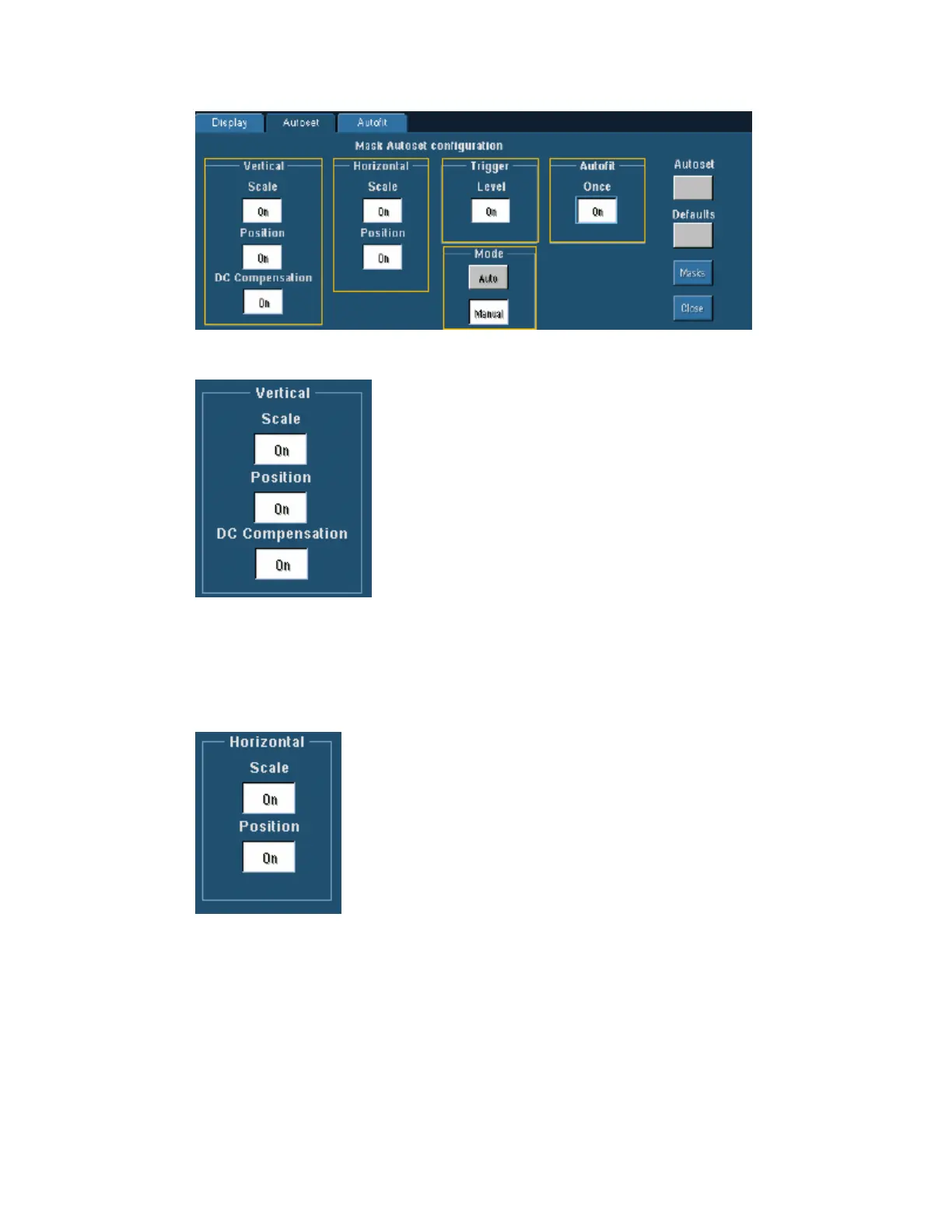

Mask Autoset Vertical Controls
Overview
Use these controls to choose whether to have autoset affect
the vertical scale or position. You can also choose whether
to have autoset affect DC compensation.
To Use
Click the Scale, Position, and DC Compensation controls to
turn these vertical control functions on or off.
Behavior
Turning on the Scale, Position, or DC compensation sets these vertical adjustments up to be
performed on an autoset.
Mask Autoset Horizontal Controls
Overview
Use these controls to choose whether to have autoset affect the
horizontal scale or position.
To Use
Click the Scale and Position controls to turn these horizontal
control functions on or off.
Behavior
Turning on the Scale or Position horizontal control functions sets up these adjustments to align the
signal within the mask when autoset is done.
