Edge triggering is the most common way to trigger an instrument. The trigger occurs when the
trigger source passes through a specific level on the specified slope (rising or falling).

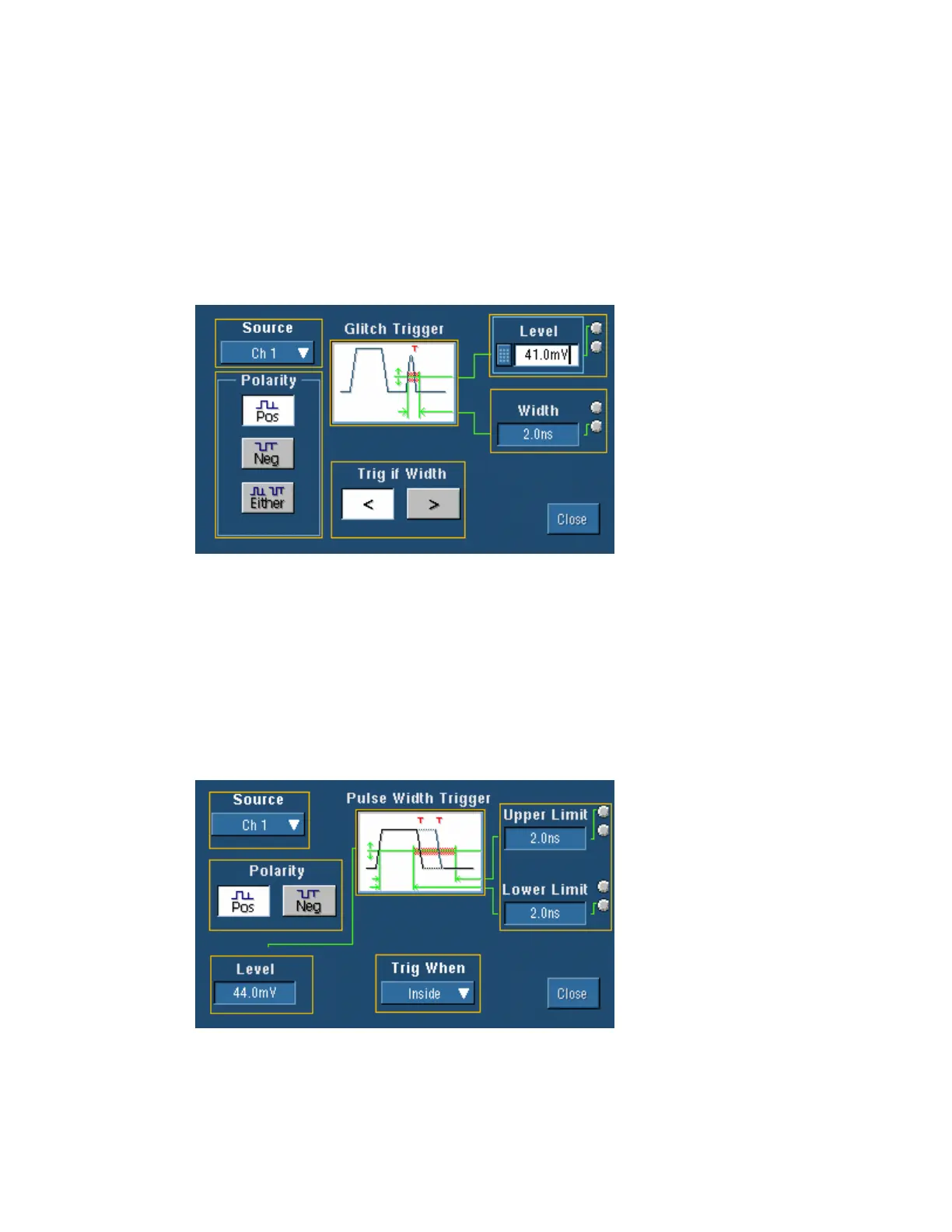

Glitch Trigger Control Window
To Use
Use these controls to set the Glitch trigger parameters.
Behavior
Use the Glitch trigger to detect and trigger on a glitch or to ignore a glitch. Glitches are defined as
pulses that are narrower than a specified time. The trigger occurs when the instrument detects a
pulse outside (either less than or greater than) the parameters you specify.
Width Trigger Control Window
To Use
Use these controls to set the Pulse Width trigger parameters.
Behavior
Use the Width trigger to trigger the instrument on a pulse that is either within or outside the
specified range. The range is defined by the Upper Limit and Lower Limit controls. You can
