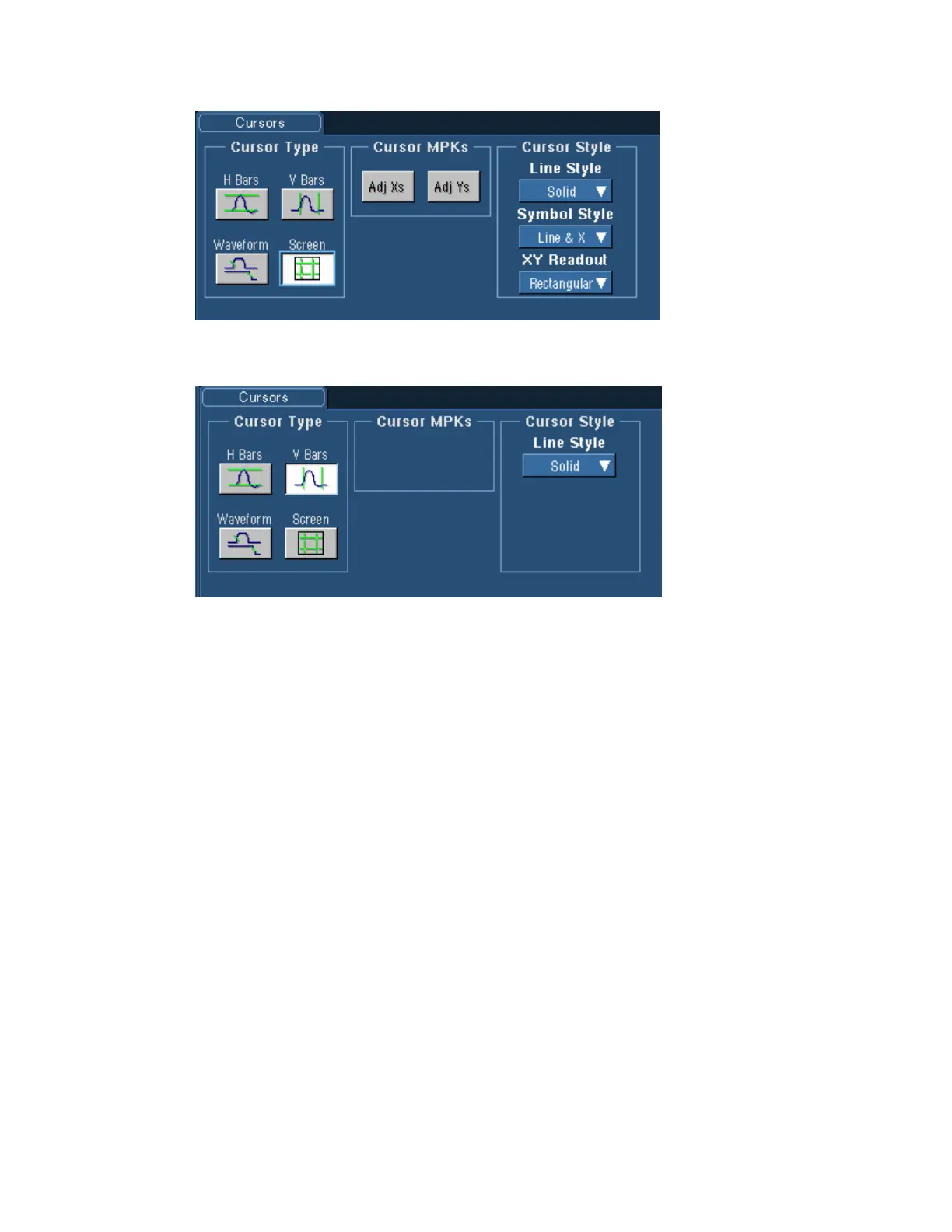

However if you select V Bars, then Cursor MPKs controls are not available and the Cursor Style
controls change as shown below.
Measure controls
Measurement controls always include a Next Ch and Clear All button. The Clear All button clears
all measurements on all channels. The Next Ch button advances the Source to the next active
channel and assigns the same measurements to the next channel as were assigned to the previous
channel. This is a quick way to assign the same measurements to multiple channels.
Each page of the measurement controls can hold up to 12 measurements. If you select more than
twelve, a More button appears to accommodate the multiple pages necessary to display more than
12 measurements.
Mask controls
The Mask and Limit Test controls act as shortcuts to the Mask or Limit Test setup control
windows.
Utilities controls
The Set Time and Date, Instrument Diagnostics, E-mail on Event, and User Preferences Utilities
controls act as shortcuts to the setup control window for these controls. Clicking the Setup button
in any one of these controls will activate the setup control window for that command.
