Acquiring Waveforms
TDS5000 Series User Manual
3-47
Overview Control elements & resourcesTime stamping frames
Select the
FastFrame
and time
stamps
selection
controls

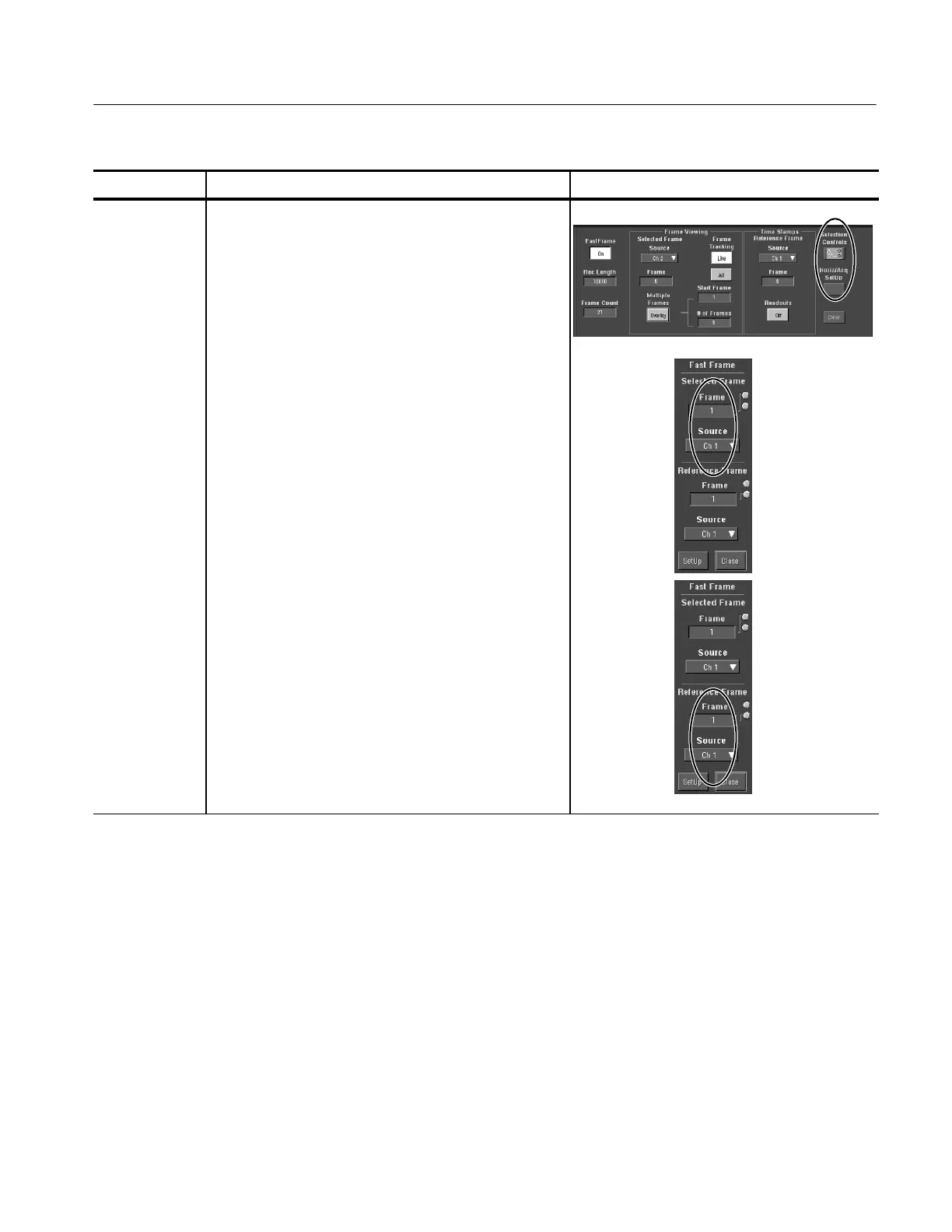

You may set the Selected Frame and Reference Frame
as previously shown or you can set them from the
Selection Controls window.
6. Click Selection Controls from the Time Stam ps control
window to display the FastFrame controls.
7. In the FastFrame controls window, touch Selected
Frame Source and select the source of the frame you
want to view.
8. Under Selected Frame, click Frame and use the general
purpose knob or keypad to enter the number of the
specific frame you want to view and take time stamps
on. The frame you select appears on the display.
Note: The ∆ is the selected time stamp -- the reference
time stamp.
9. Click the Reference Frame Source and select the source
of the reference frame. Click Frame and use the general
purpose knob or keypad to enter the number of the
reference frame.
To Next Page
