Tektronix TDS5052 User Manual

Data Input and Output
TDS5000 Series User Manual
3- 197
H The third header value holds the trigger position
(expressed as an index in the data position).
H The fourth header value refers to the fractional trigger position.
Also note that the delimiters are carriage returns.

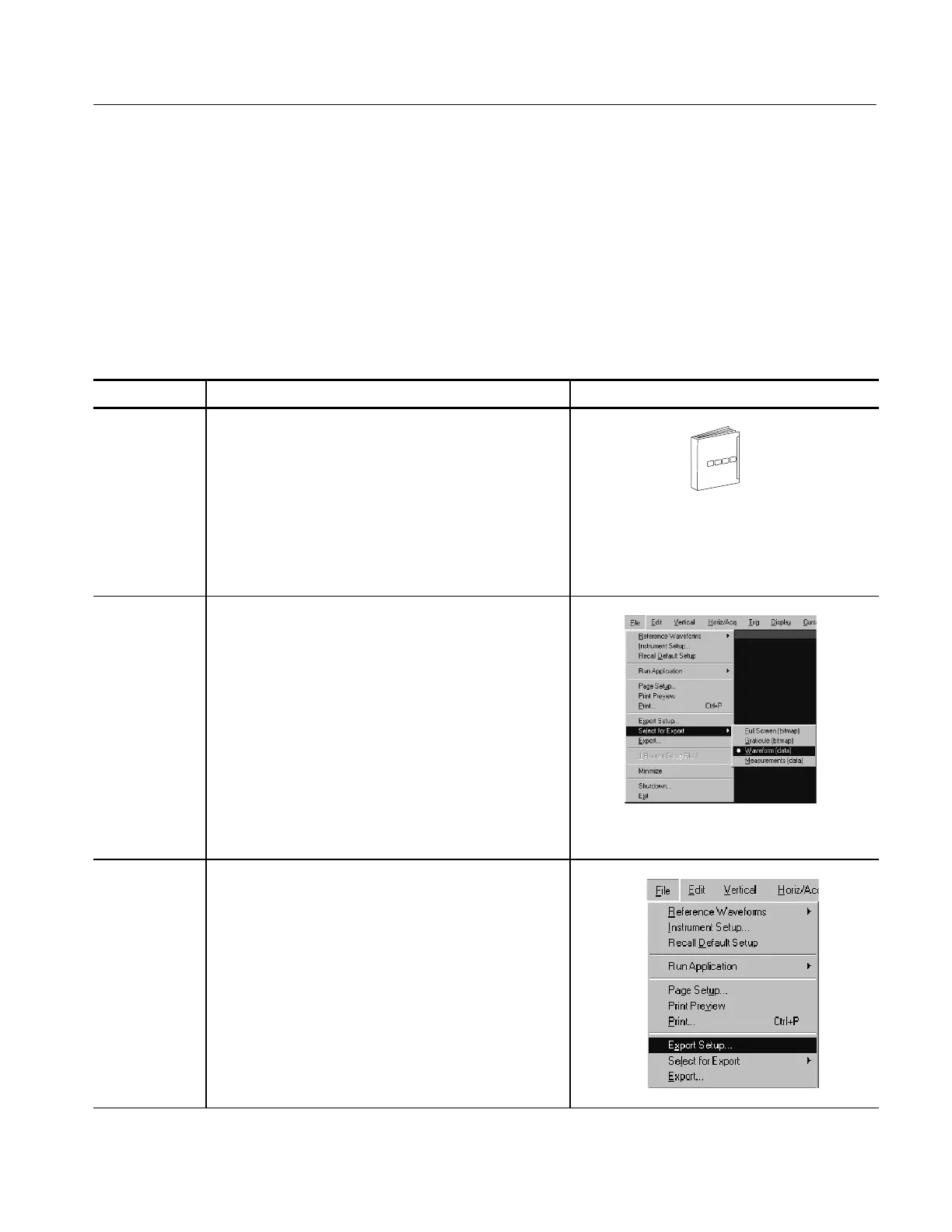

Use this procedure to export waveforms, images, or measurements to the
oscilloscope hard disk, a floppy disk, or third party storage device.
Overview To export waveform data Control elements and resources
Prerequisites
1. The oscilloscope must be powered on.
2. Make sure the waveform, image, or measurement to be
exported exists; that is, your source must be a channel,
an active math waveform, an active reference, and so
forth.
H See Powering On theOscilloscope on page
1--8.
H See page 3--25 for acquisition setup.
H See page 3--49 for trigger setup.
Select format
for export
3. From the menu bar, select the File menu Select for
Export submenu. The submenu lists all avail able
waveform, image, and measurement types available for
export:
H Full Screen exports a bitmap of all screen
contents
H Graticule exports a bitmap of only the grati c ule
area
H Waveform exports waveform data
H Measurements exports m easurement data
Select setup
for export
4. From the menu bar, select the File menu Export Setup
command. The Export Setup control window opens on
the Images tab.
Exporting Waveform Data
