Parts Description

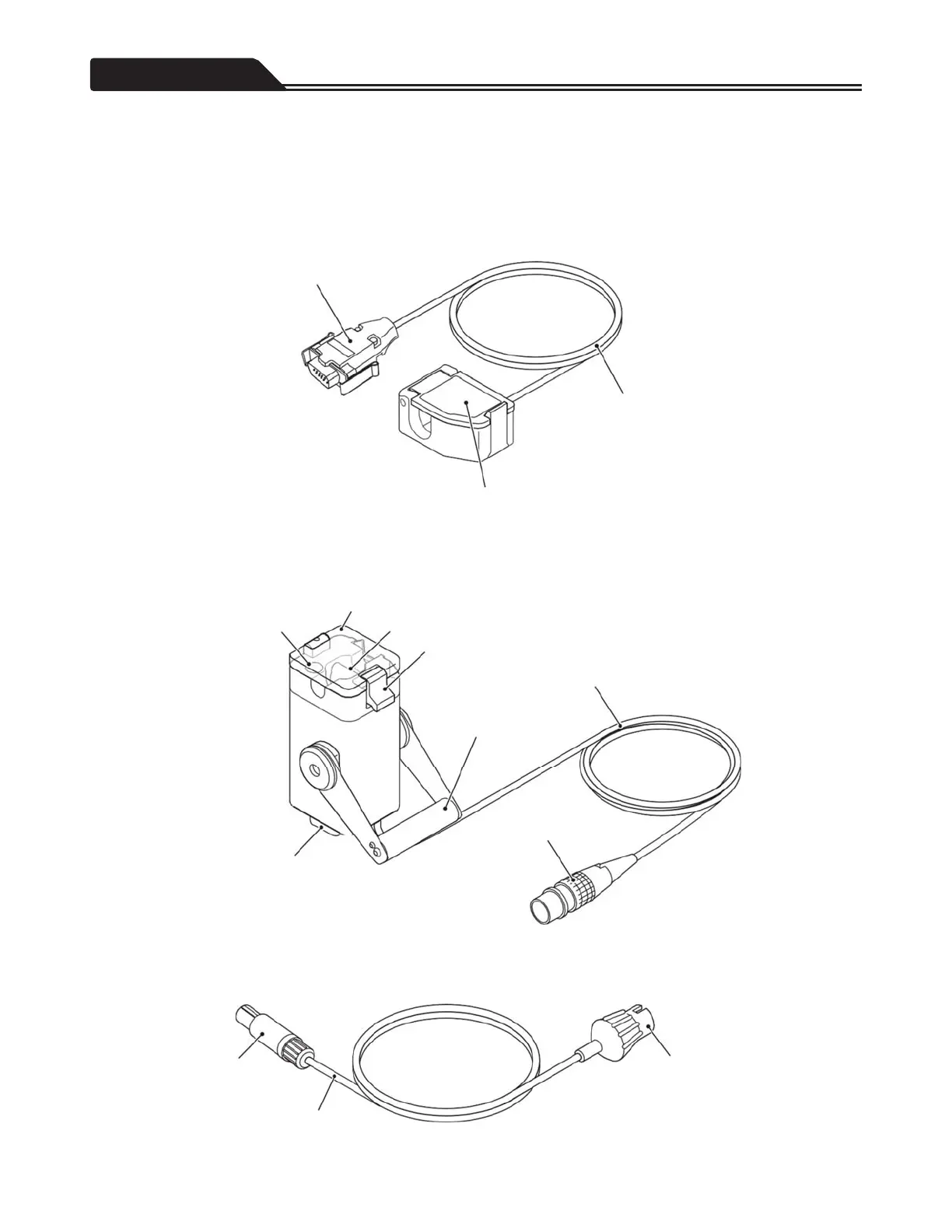

 ABD/Flow Sensor
Product name: CAPIOX Centrifugal Pump Controller SP-200 ABD/Flow Sensor
Manufacturer: Transonic Japan
(Catalogue number: ME
*
SPFAS01 (for standard tube circuit), ME
*
SPFAS02 (for soft tube circuit))
An ultrasonic transmission sensor and a receiving sensor are built in. The flow is measured by the ultrasonic transit method, and
air bubbles are detected by the change in the ultrasonic receiving level.
The ABD/Flow Sensor is attached to the blood circuit tube (inner diameter 9.5 mm (3/8 inches)).
Plug
Cable
Clamp-on ABD/Flow sensor
 Fast Clamp
(Catalogue number: ME
*
SPCLP01)
When air bubbles are detected or back flow occurs, the blood circuit is instantly blocked off with the plunger.
The Fast Clamp is attached to the blood circuit tube (inner diameter 9.5 mm (3/8 inches)).
Lid
Clamp ready lamp
Plunger
Latch
Cable
Lever
Plug
Fixing block
 Temperature Sensor Cable
(Catalogue number: XX
*
SPCBL011 (blue), XX
*
SPCBL012 (red))
When measuring temperature, connect the applicable temperature sensor (CAPIOX Luer Thermistor) to the Controller.
Plug Temperature sensor
connector
Cable
14
