Operation Procedure

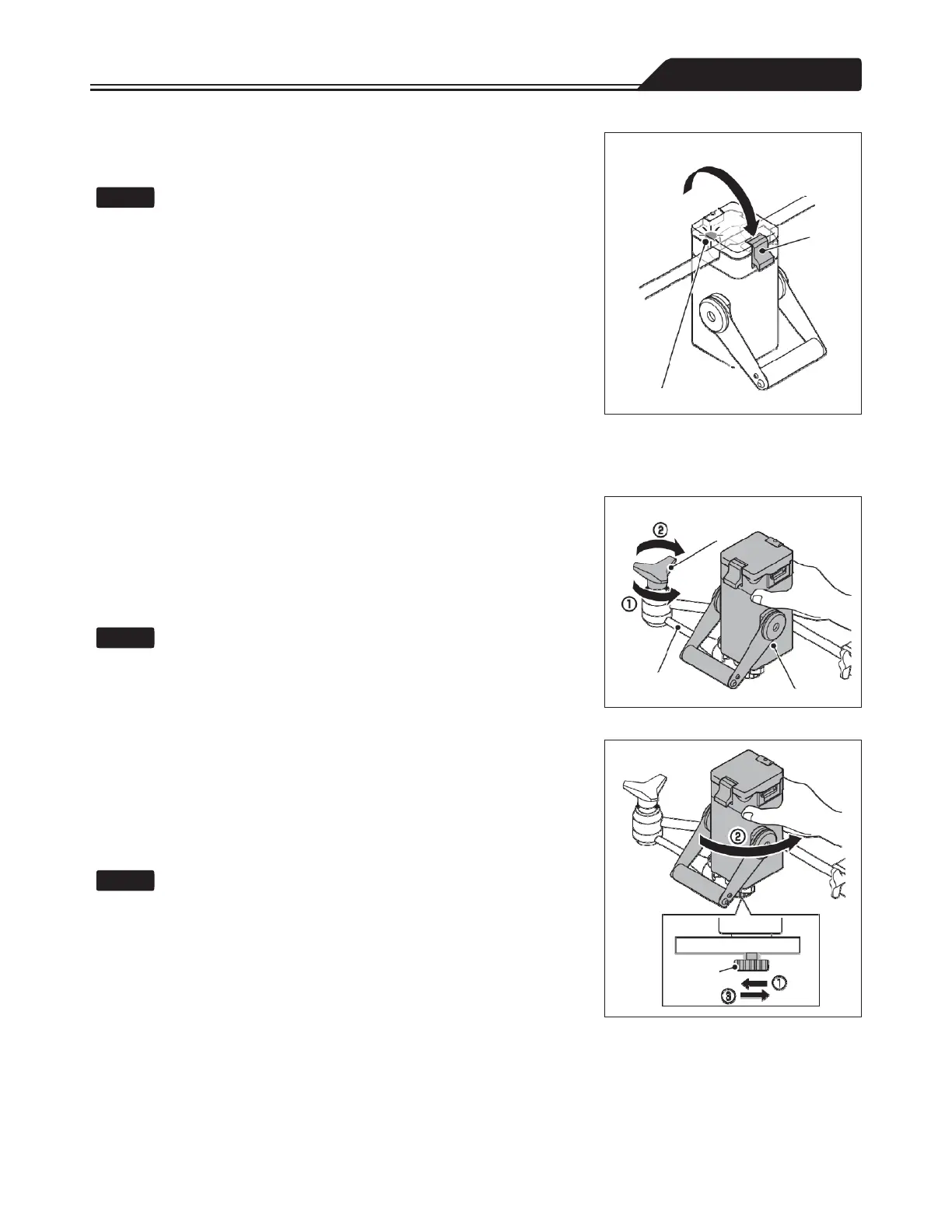

4. Close the lid of the Fast Clamp, and close the latch.
(Figure 1-55)
• The clamp ready lamp is lit in green.
Figure 1-55
 Using the Fast Clamp Arm
1. Holding the Fast Clamp by hand, loosen the knob of
the Fast Clamp Arm by turning it counter-clockwise
(Figure 1-56
a ), and then move the Fast Clamp to any
position.
After moving to the position, secure it by turning the knob
of the Fast Clamp Arm clockwise. (Figure 1-56
b )
• The Fast Clamp Arm is secured.
Figure 1-56
2. To change the direction of the Fast Clamp, hold the
Fast Clamp, loosen the fixing knob by rotating counter-
clockwise. (Figure 1-57
a ) Rotate the Fast Clamp.
(Figure 1-57
b )
Then secure the fixing knob by turning clockwise.
(Figure 1-57 c )
• The Fast Clamp is secured.
Figure 1-57
53
Check
Check
Check
Latch
Clamp ready lamp
Knob
Fast Clamp Arm
Fast Clamp
Fixing
knob
