Toro Groundsmaster 360 - Servicing the Gear Pump

ServicingtheGearPump

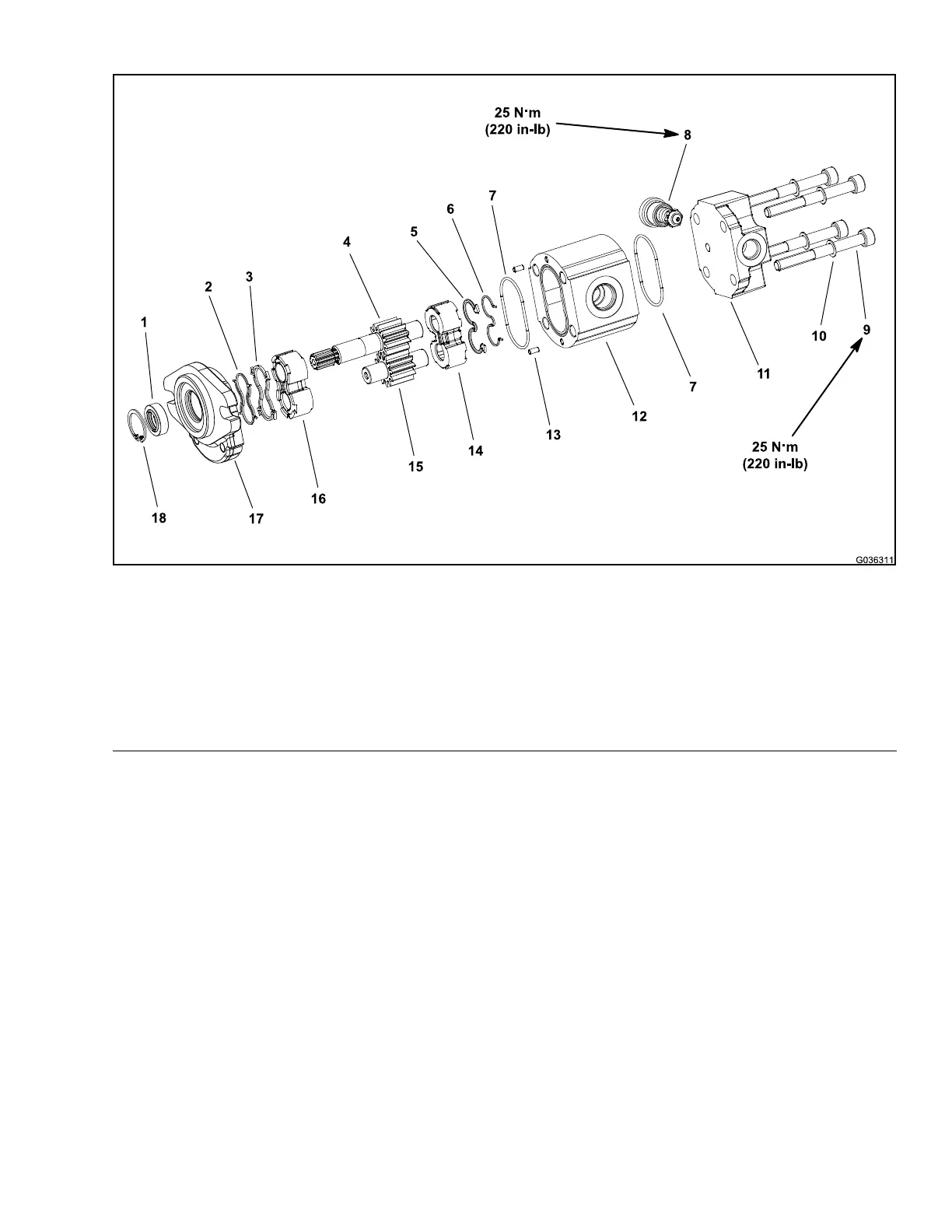

g036311
Figure137
1.Shaftseal7.O-ring13.Dowelpin(2each)
2.Frontback-upseal
8.Implementreliefvalve
14.Rearbearingblock
3.Frontpressureseal
9.Socket-headscrew(4each)
15.Idlergear
4.Drivegear
10.Lockwasher(4each)
16.Frontbearingblock
5.Rearpressureseal11.Backplate17.Frontplate
6.Rearback-upseal12.Body18.Retainingring
Groundsmaster360
Page4–139
HydraulicSystem:ServiceandRepairs
16225SLRevC
