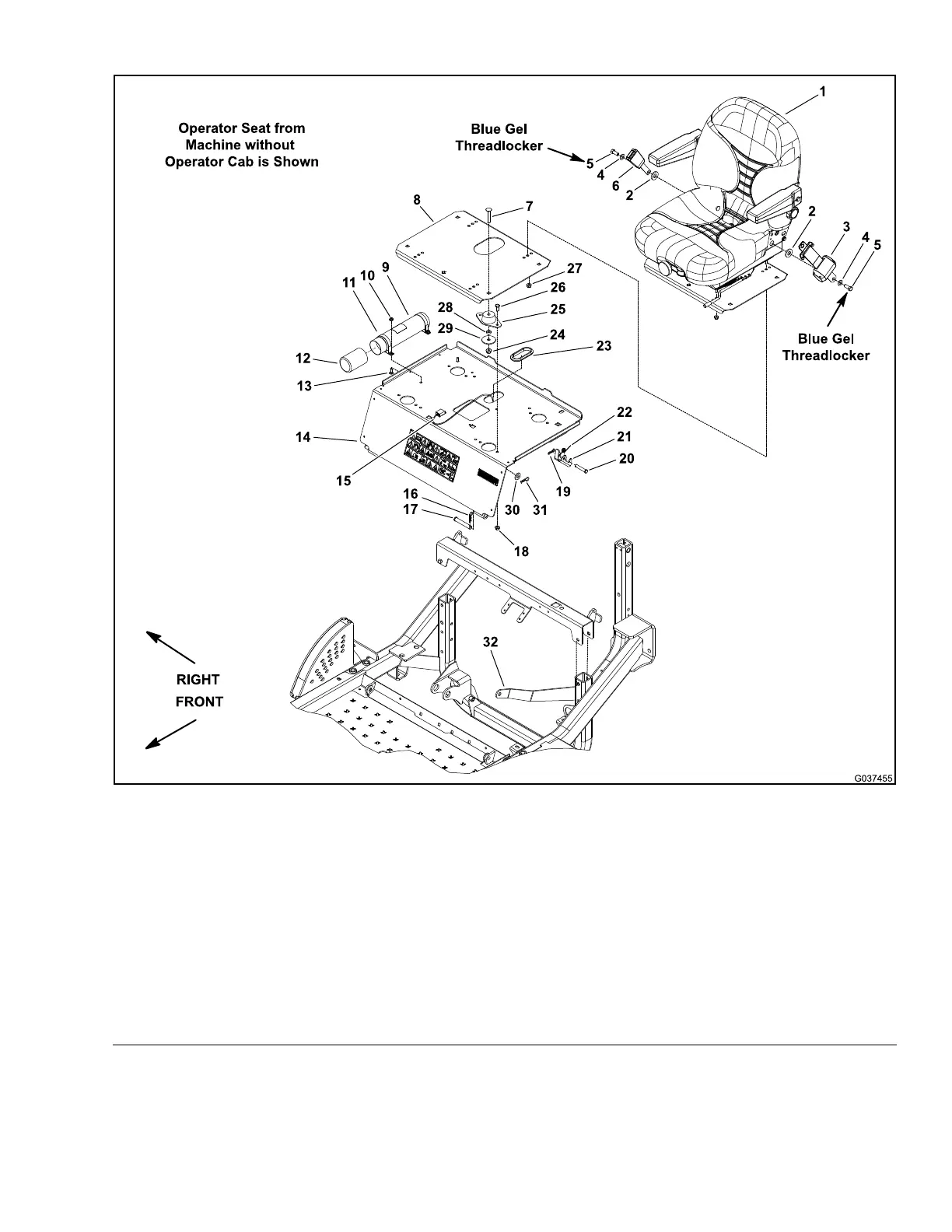

OperatorSeat

g037455

Figure297

1.Operatorseat(without

operatorcab)

9.Manualtube

17.Clevispin(2each)25.Mount(4each)

2.Flatwasher(2each)10.Flangenut(2each)18.Flangenut(2eachper

mount)

26.Bolt(2eachpermount)

3.Seatbelt

11.R-clamp(2each)19.Cotterpin27.Flangenut(4each)

4.Flatwasher(2each)

12.Manualtubecover

20.Clevispin28.Spacer(4each)

5.Bolt(2each)13.Carriagescrew(2each)21.Seatlatch29.Flatwasher(4each)

6.Seatbeltlatch14.Seatplate

22.T orsionspring

30.Flatwasher(2each)

7.Carriagescrew(4each)15.Seatswitchwireharness23.Grommet31.Hairpin(2each)

8.Upperseatplate

16.Hairpincotter(2each)24.Flangenut(4each)

32.Propstrap

Groundsmaster360

Page6–59

Chassis:ServiceandRepairs

16225SLRevC
