Toro Groundsmaster 360 Service Manual

AligningtheWheels
1.Parkthemachineonalevelsurfacewiththewheelsdirectedstraightahead.
Lowerthecuttingdeck,shutofftheengine,settheparkingbrake,and
removethekeyfromthekeyswitch.
Note:Machinehandlingissuesmaybecausedbyimproperorunbalanced
tirepressures.Ensurethatalltirepressures(frontandrear)areproperly
adjustedbeforecheckingoradjustingthewheelalignment;referto
Specications(page6–2).
g036463

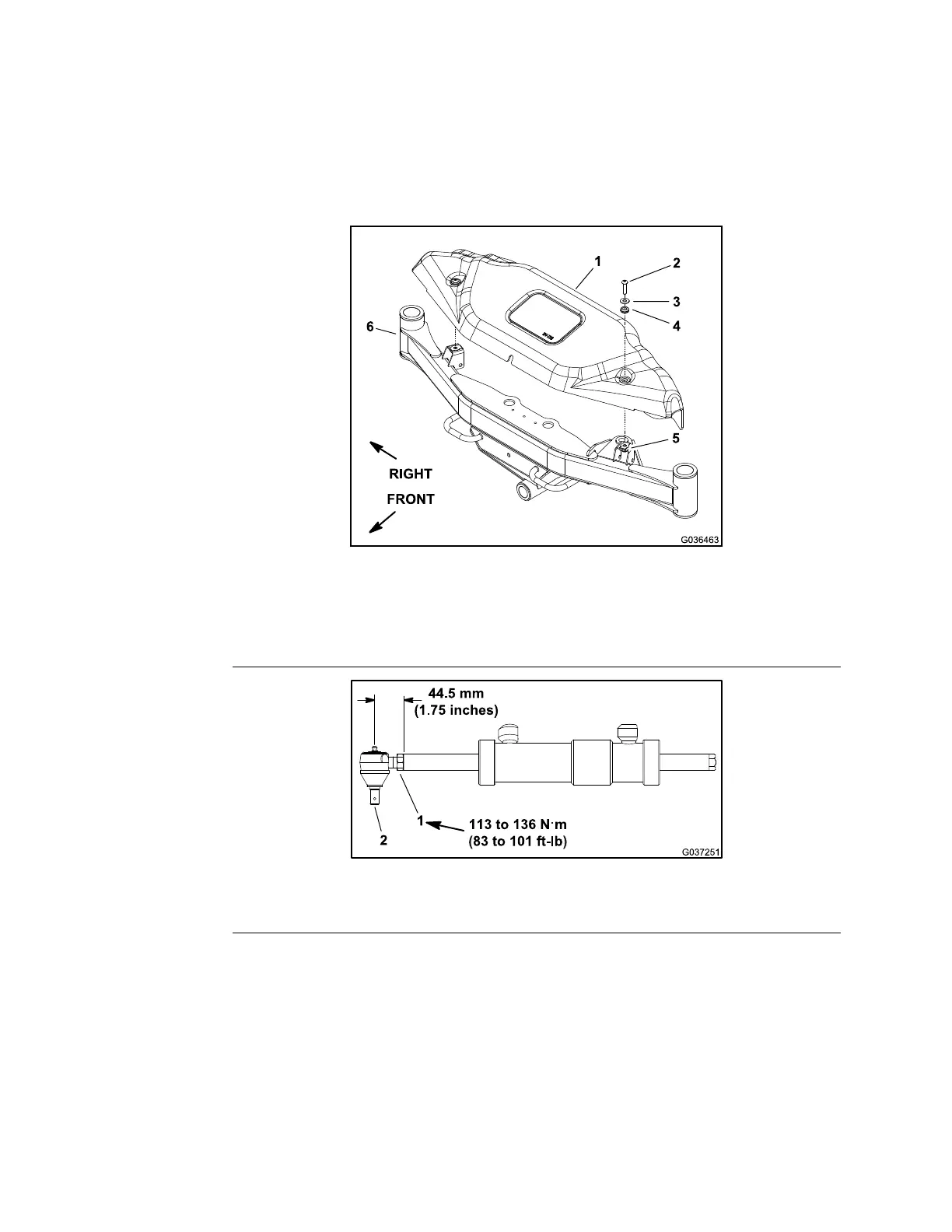

Figure255
1.Frontcover
4.Grommet(2each)
2.Screw(2each)5.Tinnermannut(2each)
3.Flatwasher(2each)
6.Frontaxle
g037251
Figure256
1.Jamnut2.Rodend
2.Removethefrontcoverfromthefrontaxletogetaccesstothefrontsteering
components(Figure255).
3.Raisetheoperatorseatandlowerthepowercenterassemblytogetaccess
totherearsteeringcomponents;refertoPowerCenterAssembly(Machines
withoutOperatorCab)(page6–55)andPowerCenterAssembly(Machines
withOperatorCab)(page6–57).
Chassis:Adjustments
Page6–8
Groundsmaster360
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
