Toro Groundsmaster 360 Service Manual

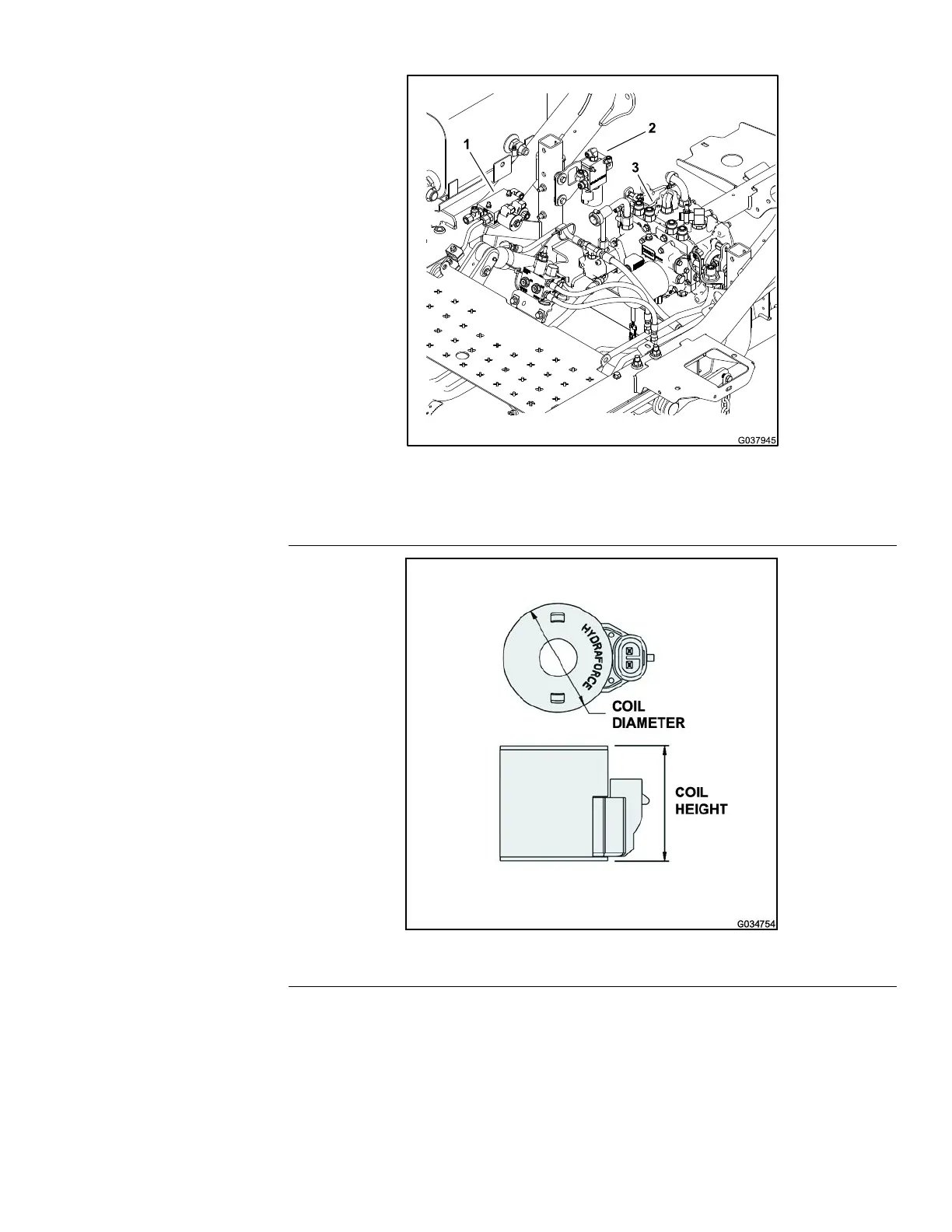

HydraulicSolenoidValveCoils
g037945
Figure233
1.Deckliftmanifoldassembly
3.Transmission
2.Steeringselectormanifoldassembly
g034754
Figure234
TheGroundsmaster360hydrauliccontrolmanifoldsuseseveralhydraulic
solenoidvalvecoilsforsystemcontrol(Figure233).Thedeckliftmanifold
assemblyincludes2solenoidvalvesandthesteeringselectormanifoldassembly
includesasinglesolenoidvalve.Whenthesolenoidcoilsareenergized,the
hydraulicvalveshiftoccurstocontrolthehydraulicuidow.Thecorrect
resistanceofacoilcanbeidentiedbymeasuringtheheightanddiameterofthe
Groundsmaster360
Page5–91
ElectricalSystem:TestingtheElectricalComponents
16225SLRevC
