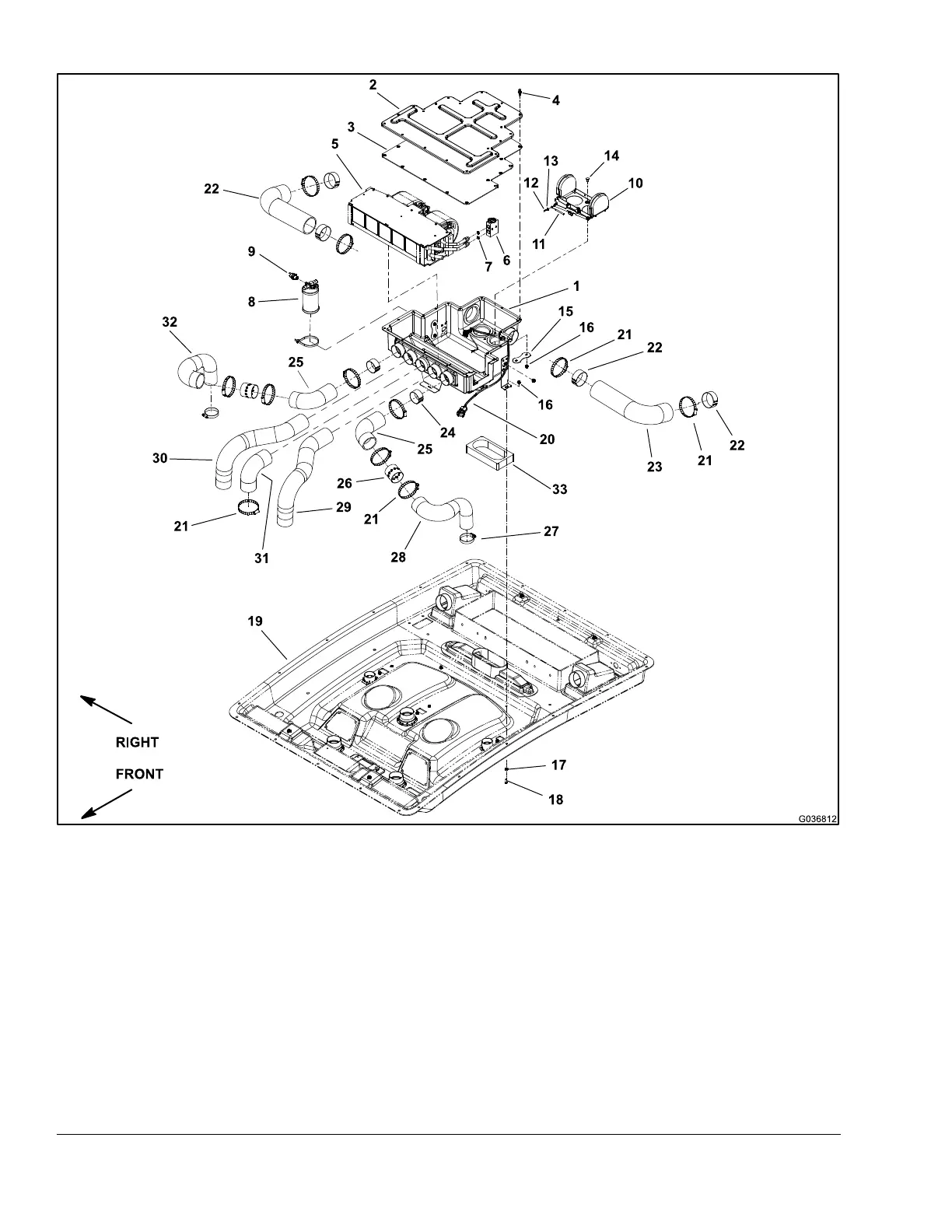

MixingBoxAssembly

g036812

Figure329

1.Mixingbox10.Airdiverterassembly

19.Cabheadliner

28.Venthose

2.Mixingboxcover

11.Controlcable

20.Mixingboxwireharness29.Venthose

3.Coverinsulation

12.Hairpin

21.Hoseclamp(11each)

30.Venthose

4.Rivet(19each)

13.Flatwasher

22.Tubesupport(4each)

31.Venthose

5.Heatercore/

airconditioning

evaporator/fanassembly

14.Carriagescrew(2each)23.Venthose(2each)

32.Venthose

6.Expansionvalve

15.Supportplate24.Tubesupport(2each)33.Mixingboxinletfoam

7.O-ring(2each)16.Flangenut(4each)25.Venthose(2each)

8.Airconditioning

drier-receiver

17.Flatwasher(2each)26.Adapter(2each)

9.Binaryswitch18.Button-headscrew

(2each)

27.Hoseclamp(2each)

OperatorCab:ServiceandRepairs

Page8–20

Groundsmaster360

16225SLRevC
