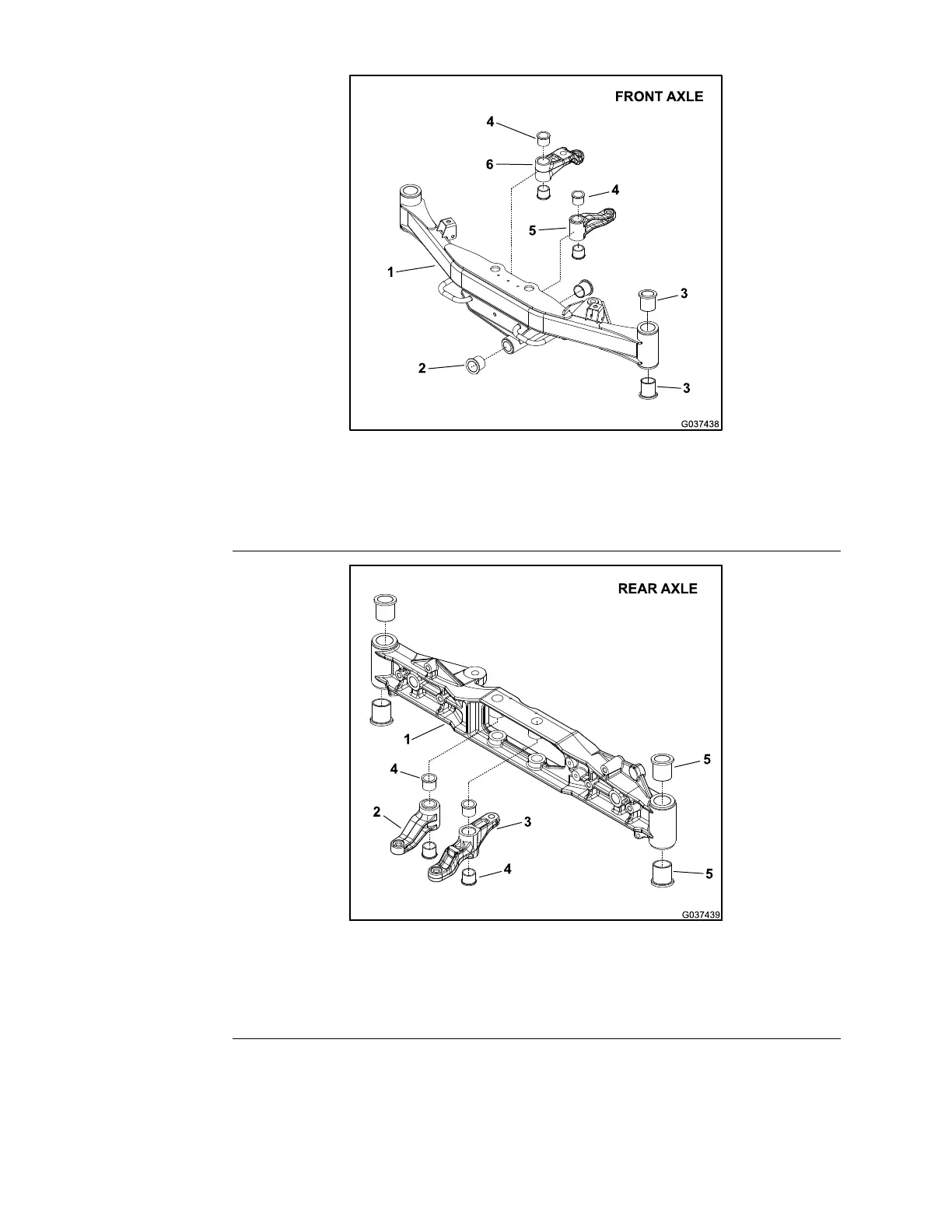

ServicingtheSteeringAssemblyBushings
g037438
Figure279
1.Frontaxle4.Flangebushing
2.Flangebushing
5.Leftfrontarm
3.Flangebushing
6.Rightfrontarm
g037439
Figure280
1.Rearaxle4.Flangebushing
2.Rightreararm5.Flangebushing
3.Leftreararm
Usethefollowingproceduretoreplacethebushingsinthefrontaxleandfront
arm(Figure279)ortherearaxleandreararm(Figure280)assemblies:
Chassis:ServiceandRepairs
Page6–38
Groundsmaster360
16225SLRevC
