Toro Groundsmaster 360 Service Manual

ServiceandRepairs
WARNING
DonotstarttheengineandengagethePTOswitchwhenthePTO
driveshaftisdisconnectedfromthecuttingdeck.Ifyoustartthe
engineandthePTOshaftisallowedtorotate,seriouspersonalinjury
andmachinedamagecouldresult.
IfthePTOdriveshaftisdisconnectedfromthecuttingdeck,
disconnectthePTOsolenoidcoilconnectorfromthewireharnessto
preventthePTOclutchfromengagingunintentionally.
CAUTION
Donotworkonthecuttingdeckwiththeenginerunning.
Alwaysshutofftheengineandremovethekeyfromthekeyswitch
beforeworkingonthecuttingdeck.

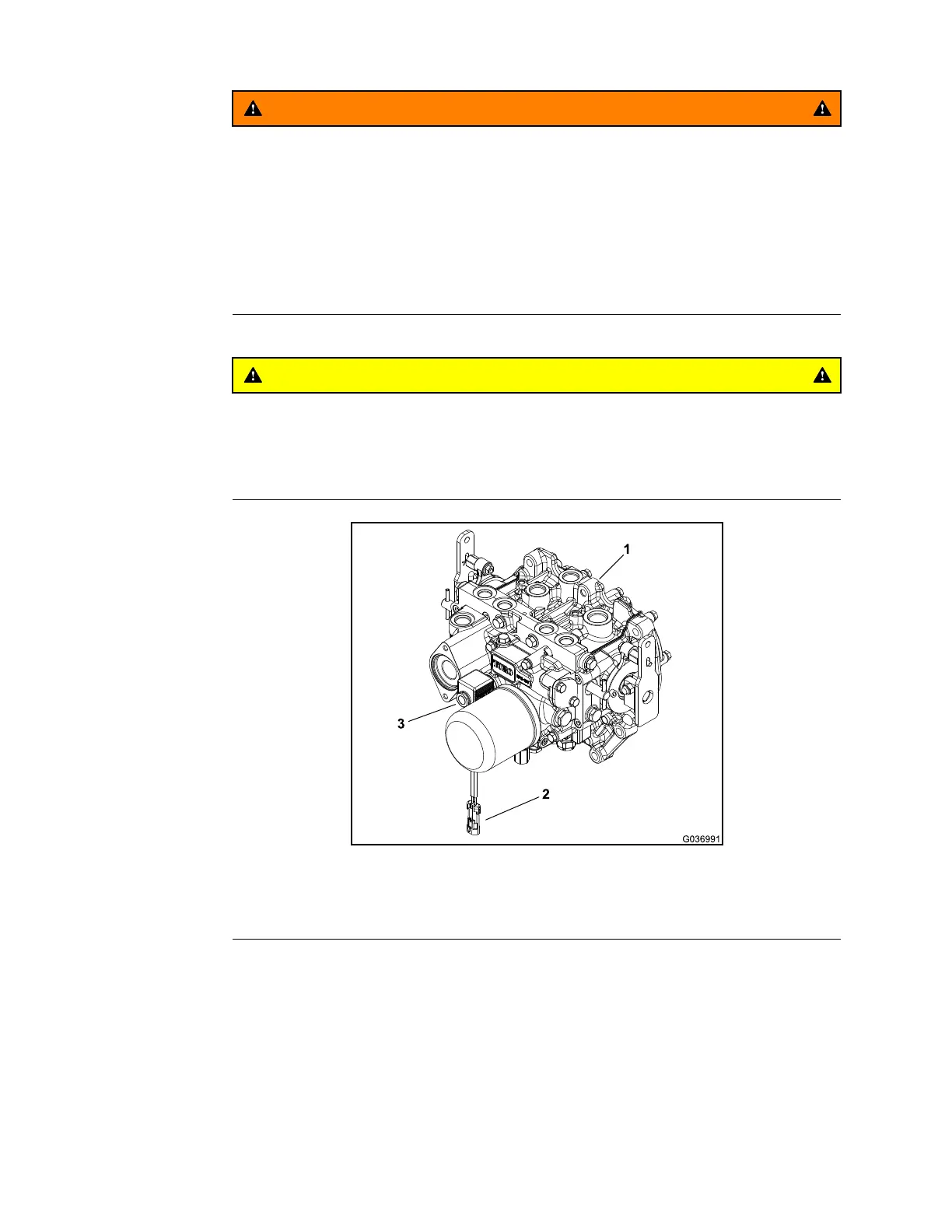

g036991
Figure303
1.Transmission
3.Solenoidvalveandcoil
2.Coilconnector
Beforeservicingthecuttingdeck,disconnectthePTOsolenoidcoilconnector
fromthewireharnesstopreventunintentionalengagementofthePTOclutch.
CuttingDeck:ServiceandRepairs
Page7–4
Groundsmaster360
16225SLRevC

Toro Groundsmaster 360 Specifications

General

Cutting Width	72 inches
Fuel Type	Diesel
Number of Blades	3
Transmission	Hydrostatic
Turning Radius	0 inches (0 cm) - Zero Turn
Drive System	4WD
Cutting Height	1.5 - 5 inches
