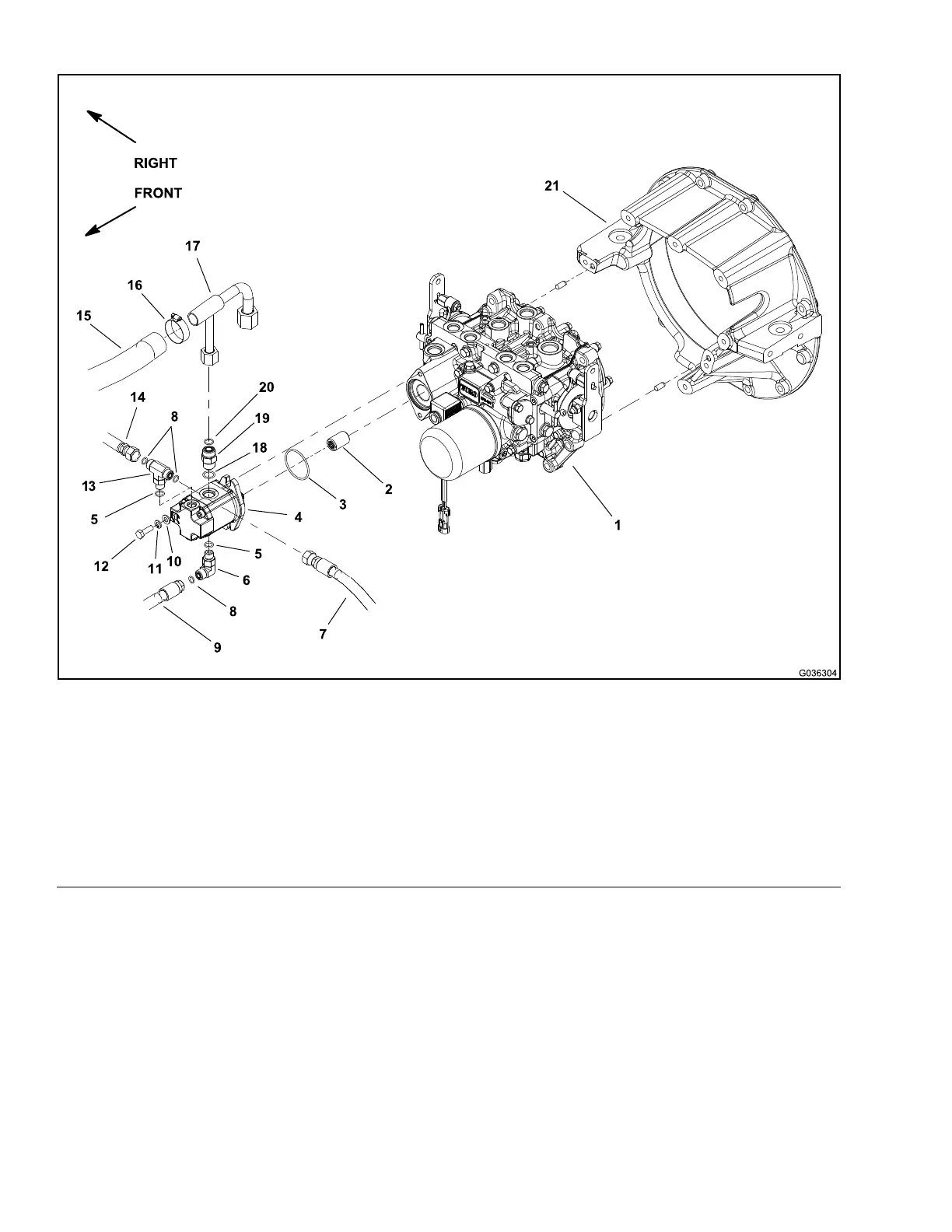

GearPump
g036304
Figure136
1.Transmissionassembly
8.O-ring15.Hydraulichose(suction)
2.Splinecoupler9.Hydraulichose(output)
16.Hoseclamp
3.O-ring10.Flatwasher(2each)17.Suctiontubeassembly
4.Gearpump11.Lockwasher(2each)18.O-ring
5.O-ring12.Bolt(2each)19.Straighthydraulictting
6.90°hydraulictting13.Hydraulicteetting20.O-ring
7.Hydraulichose14.Hydraulichose21.Flywheelhousing
HydraulicSystem:ServiceandRepairs
Page4–136
Groundsmaster360
16225SLRevC
