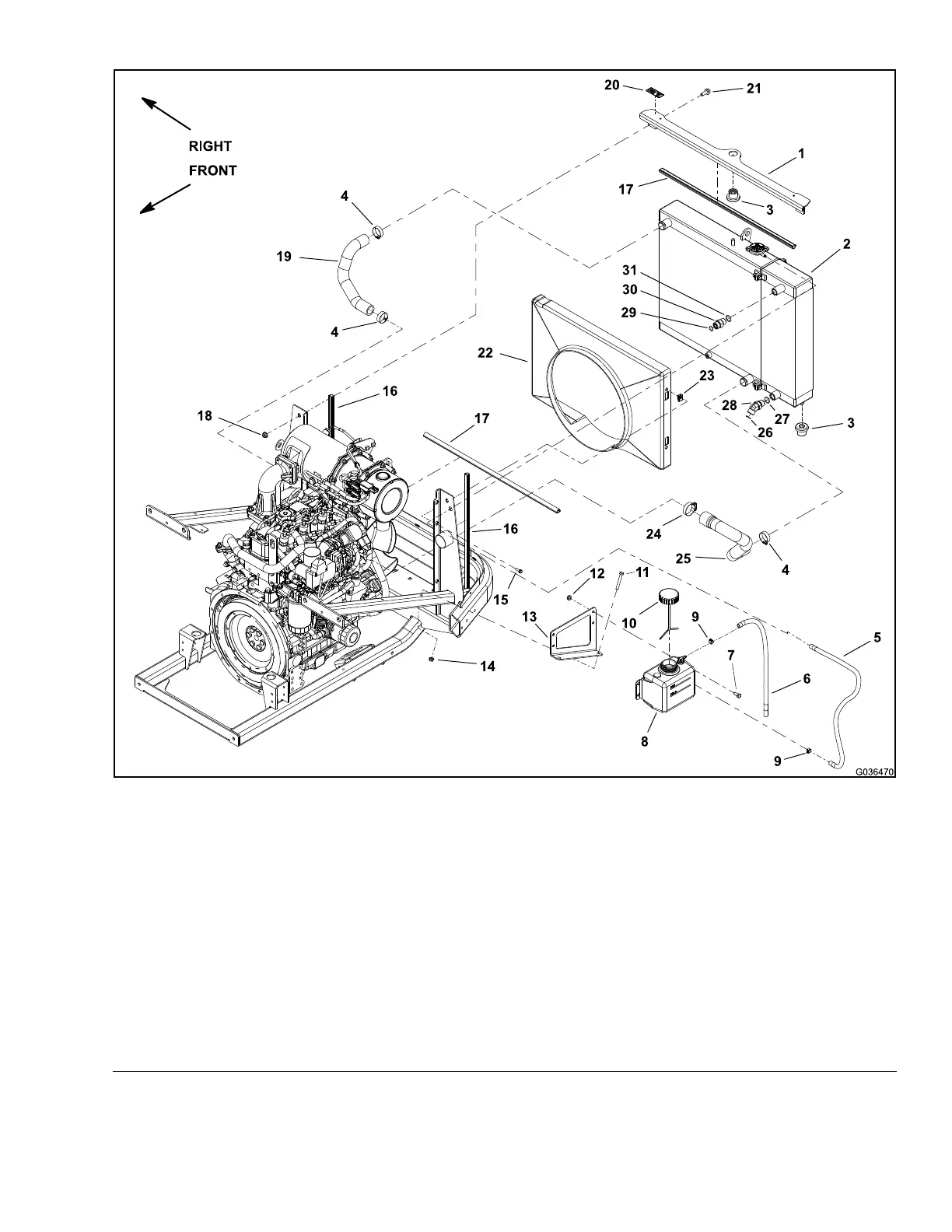

OilCooler

g036470

Figure160

1.Radiatorsupport

12.Flangenut(4each)23.Clip(4each)

2.Radiatorandoilcoolerassembly

13.Overowbracket24.Clamp

3.Isolatormount(3each)14.Flangenut(2each)

25.Lowerradiatorhose

4.Hoseclamp(3each)15.Washer-headscrew(4each)26.O-ring

5.Coolanthose16.Bulbseal(2each)27.O-ring

6.Coolanthose17.Bulbseal(2each)28.45°hydraulictting

7.Screw(4each)18.Flangenut(2each)29.O-ring

8.Coolantreservoirassembly

19.Upperradiatorhose

30.Straighthydraulictting

9.Hoseclamp(2each)

20.Fanwarningdecal

31.O-ring

10.Reservoircap

21.Flange-headscrew(2each)

11.Screw(2each)

22.Fanshroud

Groundsmaster360

Page4–177

HydraulicSystem:ServiceandRepairs

16225SLRevC
